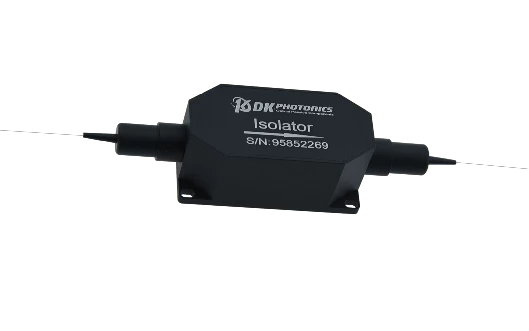

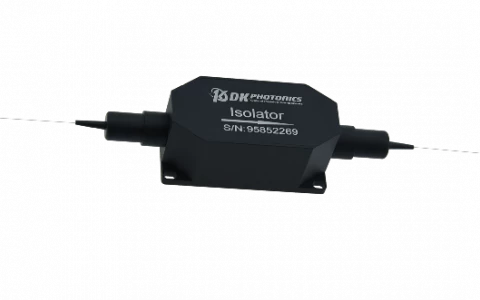

The 808 nm TGG-based optical isolator from DK Photonics is a precision-engineered, fiber-coupled device designed to protect high‑value 808 nm laser sources from damaging optical feedback. Utilizing a Terbium Gallium Garnet (TGG) Faraday rotator crystal optimized for the 800 nm band, this isolator delivers low insertion loss, high isolation, and excellent return loss, making it a robust choice for demanding solid‑state pumping, diode‑laser, and fiber‑laser applications. Its design is comparable to industry‑leading 808 nm bulk and in‑fiber isolators used in laser pumping modules and laboratory laser systems, but with the added benefits of compact packaging and fiberized interconnection.

Operating at a central wavelength of 808 nm with a typical peak isolation of 30 dB and minimum in‑band isolation of 25 dB (at 23 °C), this TGG isolator effectively suppresses back‑reflections and back‑scattering that can destabilize or damage laser diodes and gain media. Typical insertion loss is around 1.0 dB, with a maximum of 1.5 dB at room temperature, balancing isolation performance with power efficiency. The design ensures a minimum return loss of 45 dB, minimizing parasitic reflections back into upstream optics. Compared to many standard 808 nm Faraday isolators on the market, this device offers competitive isolation-to-loss ratios and stable specification control across its operating band of 808 nm ± 10 nm.

The isolator is based on a high‑quality TGG crystal, renowned in the photonics industry for its large Verdet constant, low absorption at 808 nm, and excellent thermal characteristics. This material choice enables stable Faraday rotation over a broad temperature range and at elevated optical powers. As with similar high‑power TGG‑based units found in industrial fiber‑laser pump chains and DPSS laser heads, the DK Photonics design is optimized for low thermal lensing and high damage threshold, supporting power handling from hundreds of milliwatts up to multi‑watt levels, depending on the chosen configuration and fiber/connectors. When specified without connectors, the device can typically support higher continuous‑wave power, while connectorized versions are qualified up to around 2 W pass power for standard connector types.

A key advantage of this product is its fiber‑in/fiber‑out architecture. DK Photonics offers the 808 nm TGG isolator with a variety of fiber types, including standard single‑mode fibers (such as 780‑HP or similar) and, on request, polarization‑maintaining or specialty fibers tailored to the system design. The polarization‑insensitive versions are ideal for applications where the input polarization state is not strictly controlled, such as many diode‑laser pump modules and general laboratory setups. For systems demanding precise polarization control, polarization‑maintaining configurations can be custom‑engineered, in line with common practice for high‑end fiber‑laser and interferometric measurement setups in the 800 nm band.

The mechanical package has been developed for stability, compactness, and ease of integration into OEM and research systems. The hermetic internal structure and precision alignment techniques help guarantee excellent environmental reliability under varying temperature and vibration conditions. This aligns with performance expectations for advanced TGG isolators used in industrial laser machining, medical systems, and scientific experiments, where long‑term stability and repeatability are critical. While the exact housing dimensions may evolve with ongoing design improvements, the overall form factor remains suited for integration into laser heads, optical benches, and fiber‑based modules where space is at a premium.

Typical applications for this 808 nm TGG-based optical isolator include diode‑pumped solid‑state (DPSS) lasers, fiber laser pump stages, fiber amplifiers, and free‑space or fiber‑coupled laser modules operating in the 800 nm range. It is commonly used to protect 808 nm pump diodes driving Nd:YAG, Nd:YVO4, and similar gain media, as well as in laboratory systems for nonlinear optics, spectroscopy, and test and measurement at near‑infrared wavelengths. By effectively blocking backward‑propagating light while maintaining excellent transmission in the forward direction, the isolator helps improve laser stability, reduce mode hopping and noise, and extend the lifetime of sensitive laser diodes and optical coatings.

Like many advanced isolators offered globally for 808 nm operation, the DK Photonics unit is highly configurable. Engineers can specify custom center wavelengths within the broader 500 nm to 2100 nm platform range, adjusted power‑handling levels, and application‑specific fiber pigtails and connector types. An example configuration is a TGG‑based 808 nm optical isolator with 0.5 W power handling for continu<
