Fiber Isolators & Circulators

Ascentta, Inc. offers a range of compact and high-performance fiber optic circulators designed to transmit signals from one port to another simultaneously. These three-port circulators are widely used in optical sensing systems with fiber gratings and other reflective components. Ascentta also manufactures multiport circulator ...

Specifications

Type Of The Device: Circulator
Operating Wavelength: 532 nm
Max Power: 0.15 W
Min Isolation: 21 dB
Insertion Loss (All SOP) Max.: 1.8 dB

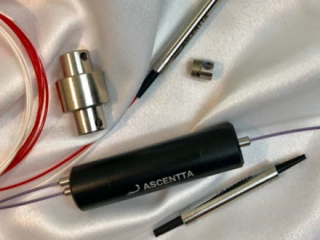

Ascentta, Inc. offers a compact and high-performance three-port fiber optic circulator designed specifically for polarization-maintaining (PM) applications. This optical device efficiently transmits signals from port 1 to port 2 and from port 2 to port 3 simultaneously. It is ideal for use in optic sensing systems with fiber ...

Specifications

Type Of The Device: Circulator
Operating Wavelength: 405 nm
Max Power: 0.03 W
Min Isolation: 20 dB
Insertion Loss (Fast Axis Block) (1→2, Or 2→3): 2.0 dB

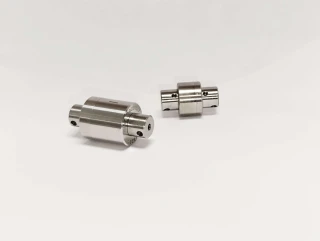

The Polarization-Dependent 3-Port Circulator Core (TGG Type) by Ascentta Inc. is engineered for precise optical signal routing in demanding photonics applications. Designed to operate across key wavelengths—532 nm to 1064 nm—this compact circulator core utilizes the Faraday effect in TGG (terbium gallium garnet) material ...

Specifications

Type Of The Device: Circulator
Operating Wavelength: 532 nm
Max Power: 5 W
Min Isolation: 21 dB
Insertion Loss (23℃, All SOP*) (1→2, Or 2→3) Max: 0.6 dB
The TGG-type 3-port optical circulator by Ascentta, Inc., is a high performance device in a compact package. It enables light travels in one direction, i.e. from port 1 to port 2 and from port 2 to port 3. It provides low insertion loss, excellent isolation, directivity, and return loss.  Optical circulators are essential for ...

Specifications

Type Of The Device: Circulator
Operating Wavelength: 405 nm
Max Power: 0.03 W
Min Isolation: 20 dB
Insertion Loss (All SOP) (1→2, Or 2→3) Max.: 1.5 to 2.5 (wavelength dependent) dB
Many parameters are dependent on wavelength; see specification sheet for more details. Our visible spectrum circulator arrays can now have up to four channels! It is now even easier to install multiple circulators in a single device. The 4-channel version of the array is available for single-mode and polarization maintaining, in ...

Specifications

Type Of The Device: Circulator
Operating Wavelength: 532 nm
Max Power: 0.05 W
Min Isolation: 20 dB
Insertion Loss (fast Axis Blocked) (max): 1.8 to 2.5 (wavelength dependent) dB

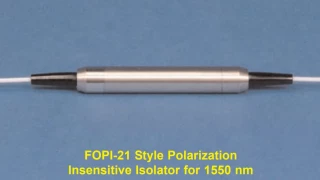

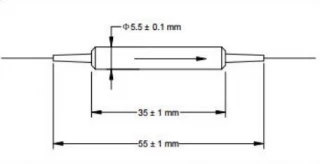

Ascentta's Single-Mode Polarization-Insensitive Isolator Array is designed to optimize complex optical communication systems by preventing back reflections and minimizing internal losses across multiple channels. Our isolator array supports wavelengths from 1310 nm to 1590 nm and features a compact Ø5.5 × L35 mm package, ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1310 nm
Max Power: 0.3 W
Min Isolation: 25 dB
Channels: 2 or 3

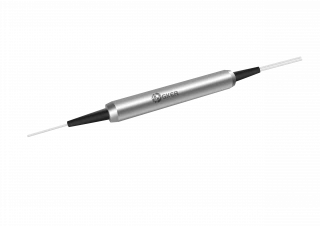

The function of two components with the volume and price of one! Ascentta’s isolator and WDM hybrid is convenient and space-saving without sacrificing performance. High channel isolation, low polarization mode dispersion, excellent directivity can all be expected from this component despite its small size: a cylinder a mere ...

Specifications

Type Of The Device: Other
Operating Wavelength: Not Specified
Max Power: 0.3 W
Min Isolation: Not Specified
Wavelength: 1480/1550, 1480/1590, 980/1550, or 980/1590 nm

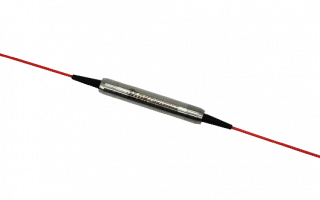

Specs listed are for the single-stage version only. For dual-stage specs, review datasheet. With excellent operating parameters and precise, stable tap ratio, Ascentta’s Tap + Isolator hybrids are excellent components for systems that require signal or power monitoring, splitting/combing, or other tap coupler features at the ...

Specifications

Type Of The Device: Isolator, Other
Operating Wavelength: Not Specified
Max Power: 0.3 W
Min Isolation: 31 dB
Insertion Loss (signal): 0.8 dB (max)
Ascentta’s ultra-broadband circulators, covering 1290nm to 1620nm, already boast high directivity and return loss, each with minimum values of 50dB. However, we are always looking for ways to improve our designs, which leads us to introduce the high directivity version of our ultra-broadband circulator. These circulators cover ...

Specifications

Type Of The Device: Circulator
Operating Wavelength: Not Specified
Max Power: 0.3 W
Min Isolation: 20 dB
Operative Wavelength: 1290nm to 1620nm

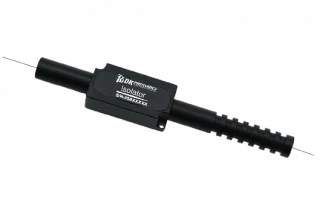

Ruik Polarization-Maintaining Optical IsolatorsRuik’s polarization-maintaining (PM) optical isolator is a protective device that allows light to pass in the forward direction—from input to output—while blocking any light traveling in the reverse direction. This prevents unwanted feedback that could damage the source ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 2 W
Min Isolation: 28 dB

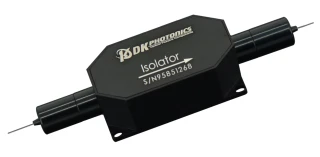

The high-power high-isolation isolator (1064nm, 1030nm, 980nm, 915nm, 850nm, 808nm, 780nm) is a polarization-independent fiber component that allows all polarized light (not just the light polarized in a specific direction) to propagate in one direction but blocks it in the opposite direction. In many applications, we are unable to ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 780 nm
Max Power: 10 W
Min Isolation: 55 dB
Peak Powe: 10kW, 20kW
The High Power PM Isolator (1310nm / 1550nm) from Lfiber is a premium optical component designed to suppress unwanted back reflections and feedback in high-power fiber optic systems. Built for robustness and precision, this isolator ensures stable optical signal transmission in demanding applications such as PM fiber lasers, ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1310 nm
Max Power: 20 W
Min Isolation: 28 dB
Peak Power: 10kW, 20kW

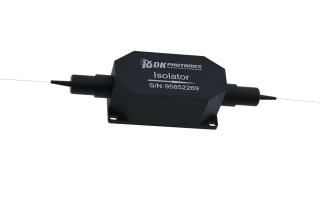

The high power PM fiber optical isolator (1064/1030/980 nm polarization-maintaining optical fiber isolator) is one of the most important passive components. The function of a PM optical isolator is to let a light beam pass through in one direction, that is, the forward direction only, like a one-way traffic. At the same time, ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 980 nm
Max Power: 10 W
Min Isolation: 25 dB
Min. Extinction Ratio At 23℃: 20
High power polarization-maintaining isolator allows light to propagate in one direction but block transmission in the opposite direction. At the same time, by using PM panda fibers it maintains a well-defined state of polarization (SOP) of the light. This fiber-coupled 1064/1053/1030/980 nm PM optical isolator has power handling up ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 980 nm
Max Power: 50 W
Min Isolation: 25 dB
Extinction Ratio At 23℃ (dB): ≥20

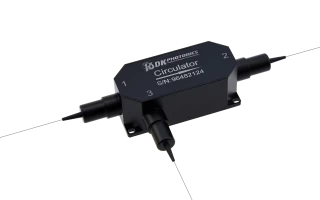

LFIBER's polarization maintaining optical circulator with high extinction ratio is a passive component based on the Faraday effect, transmitting light signals from one port to the next sequential port with low loss, but at the same time blocking any light transmission to the previous port.    By using polarization ...

Specifications

Type Of The Device: Circulator
Operating Wavelength: 30 nm
Max Power: 300 W
Min Isolation: 40 dB
Port Type: 3 Port, 4 Port
The high-extinction-ratio optical isolator (polarization-maintaining fiber optic isolators) is a fiber-coupled optical component which lets light pass through in one direction, but block it in the opposite direction. At the same time, by using PM Panda fibers it’s capable of maintaining a well-defined state of polarization ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1310 nm
Max Power: 300 W
Min Isolation: 28 dB
Fiber Type: Panda PM fiber
The High-Power High-Isolation PM Isolator (1064nm, 1030nm, 980nm, 915nm, 850nm, 808nm, 780nm) is a polarization-independent fiber component that allows all polarized light (not just the light polarized in a specific direction) to propagate in one direction but blocks it in the opposite direction. In many applications, we are unable ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 780 nm
Max Power: 50 W
Min Isolation: 55 dB
Min. Extinction Ratio At 23℃ (dB): 20

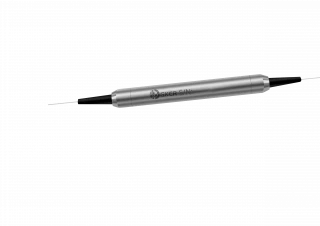

The High Power Fiber Optical Isolator (polarization-independent fiber optic isolators, 1064/1053/1030/980 nm) is a fiber-coupled component that allows all polarized light signal (not just the light polarized in a specific direction) to propagate along a fiber in one direction but not in the opposite direction. Functionally, it is ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: 980 nm
Max Power: 50 W
Min Isolation: 25 dB
Center Wavelength (nm): 980, 1030, 1053, or 1064

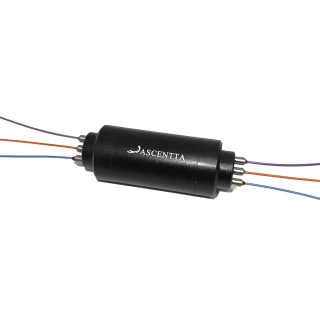

Ascentta’s Optical TGG-Type Isolator Array provides a high-performance solution for minimizing back reflections and internal losses in optical systems. Unlike conventional setups, our isolator arrays are designed so that the magnetic fields of individual channels do not interfere with each other—eliminating a common issue ...

Specifications

Type Of The Device: Isolator
Operating Wavelength: Not Specified
Max Power: 0.25 W
Min Isolation: 22 dB
Typical Isolation: 27 dB

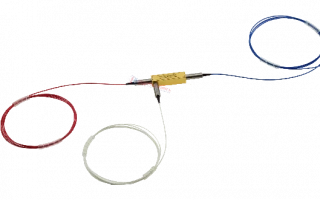

The GK-FCIR Series Polarization Insensitive Mini Fiber Circulator by GKER Photonics Co., Ltd is a compact, high-performance optical device designed for efficient signal routing in modern fiber optic networks. Engineered to route optical signals from Port 1 to Port 2 and from Port 2 to Port 3, it features ultra-low insertion loss, ...

Specifications

Type Of The Device: Circulator
Operating Wavelength: 1310 nm
Max Power: 300 W
Min Isolation: 45 dB
Center Wavelength (λc): 1310, 1550 nm

Frequently Asked Questions

An optical isolator contains a Faraday rotator, a component characterized by rotating input linear polarization by 45 degrees. It is important to note that the direction of polarization rotation is dependent on the orientation of the Faraday rotator but not on the light travel direction. In other words, if, for instance, the polarization is rotating clockwise relative to the propagation direction, in the reverse-propagation direction, the rotation will be counter-clockwise. At the input of an optical isolator there is a linear polarizer ensuring that only linearly polarized line enters the system. There is a second linear polarizer present at the exist that let’s through the light that is now rotated by 45 degrees relative to the input. If there is a back reflection from any subsequent optical components in the system, the light might be able to back enter from the exit polarizer and further rotate in the same direction by 45 degrees resulting in a 90 degree rotation relative the orientation of the entrance polarizer, which will block the light from passing through the system in the reverse direction.

Yes, the rotation degree of the polarization is dependent on the optical wavelength of the input light. Additionally, the polarizers and the other elements of an optical isolator may have special optical coatings which are also wavelength dependent. Some optical isolators are only suitable for a specific wavelength, while others can operate over a range of wavelengths.

Yes, this is true for optical isolators containing polarizers. However, polarization-independent isolators exist.

Yes, optical circulators and isolators that are suitable for free-space coupling have been designed and are used in free-space communication systems. They are often used to reduce or eliminate back-reflection of light from the optical system that otherwise might enter the laser and deteriorate its performance and even damage it.

Yes, in the case of polarization-dependent circulators, the polarization of the input beam should be linear and match the input polarizer orientation. However, polarization-independent optical circulators exist and are used in fiber optical communications as the polarization state of light is likely to vary as it propagates through the fiber.

Both components are widely used in optical communications systems to send signals along different channels. They are also used in dispersion compensation devices or as means to protect laser systems from back reflection. Optical isolators are also used in multistage amplified laser systems to prevent back-reflection from entering back into the laser which can deteriorate or damage the laser system.

Enhancing Optical Systems with Fiber Isolators and Circulators

Introduction

In the realm of fiber-optic communications, maintaining signal integrity and efficient routing is paramount. Fiber isolators and fiber circulators play pivotal roles in achieving these objectives, serving as fundamental components in various optical applications.

Fiber Isolators: Protecting Optical Integrity

Fiber isolators are designed to transmit light in a single direction while blocking any back-reflected light. This unidirectional flow is achieved through non-reciprocal optical elements, such as Faraday rotators, which rotate the polarization of light, allowing it to pass in one direction and attenuating it in the reverse.

The primary function of fiber isolators is to protect laser sources from back-reflections, which can cause instability, noise, or even damage. By preventing reflected light from re-entering the laser cavity, isolators ensure consistent output and prolong the lifespan of the laser.

Applications of fiber isolators include:

  • Laser Protection: Safeguarding lasers in optical communication systems.

  • Optical Amplifiers: Enhancing the performance of amplifiers by minimizing feedback.

  • Measurement Systems: Ensuring accurate readings by eliminating unwanted reflections.

Fiber Circulators: Enabling Bidirectional Communication

Fiber circulators are multi-port, non-reciprocal devices that direct light from one port to the next in a sequential manner. For instance, light entering port 1 exits through port 2; any light entering port 2 exits through port 3, and so on. This functionality allows for the separation and routing of signals traveling in opposite directions within a single fiber.

The unique properties of fiber circulators make them indispensable in complex optical systems. They enable:

  • Bidirectional Transmission: Facilitating two-way communication over a single fiber.

  • Wavelength Division Multiplexing (WDM): Allowing multiple wavelengths to be added or dropped in DWDM systems.

  • Optical Sensing: Enhancing the capabilities of fiber-optic sensors by directing signals appropriately.

Integration in Optical Systems

The integration of fiber isolators and circulators into optical networks leads to:

  • Improved Signal Quality: By minimizing reflections and crosstalk.

  • Enhanced System Reliability: Through the protection of sensitive components.

  • Efficient Network Design: Allowing for more compact and versatile configurations.

Conclusion

Fiber isolators and fiber circulators are vital components in the advancement of optical communication systems. Their ability to control light propagation ensures the protection of critical components and the efficient routing of signals. As optical networks continue to evolve, the importance of these devices in maintaining system integrity and performance cannot be overstated.

Did You know?

Fiber isolators and fiber circulators are essential passive components in modern optical systems, ensuring signal integrity and enhancing performance. Fiber isolators are non-reciprocal devices that allow light to pass in only one direction, effectively preventing back-reflected light from reaching sensitive components like lasers. This protection is crucial in maintaining the stability and longevity of laser sources and optical amplifiers. On the other hand, fiber circulators are multi-port devices that direct light sequentially from one port to the next, enabling bidirectional communication over a single fiber. They are instrumental in advanced applications such as Dense Wavelength Division Multiplexing (DWDM) systems, optical add-drop multiplexing, and fiber-optic sensing. Both components are vital in high-speed communication networks, ensuring efficient signal routing and minimizing interference. Their integration into optical systems leads to improved performance, reduced noise, and enhanced reliability.
