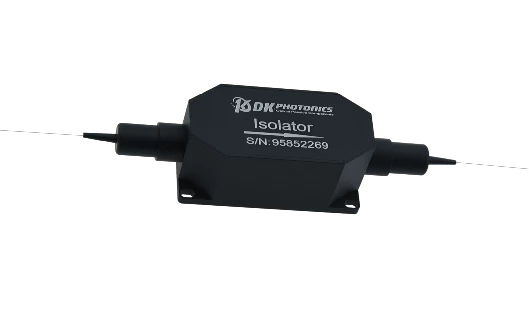

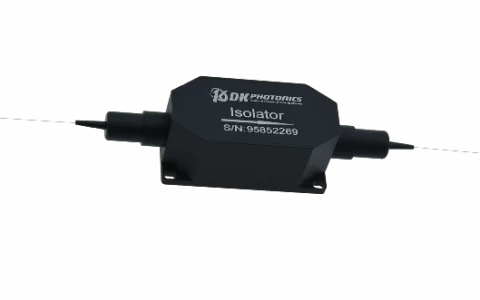

1064nm High Power In-line Optical Isolator – DK-XS-DT-006-A/2

The 1064nm High Power In-line Optical Isolator from DK Photonics is engineered for demanding fiber laser and amplifier applications, where high power handling and superior optical performance are essential. Designed to operate efficiently at the 1064nm wavelength, this isolator is a critical component in protecting laser sources from destabilizing back reflections, ensuring stable and reliable system operation even under high-power conditions.

This isolator stands out for its exceptionally low insertion loss and high isolation, making it ideal for integration in high-power fiber lasers, amplifiers, and advanced instrumentation setups. The device is available in both polarization-maintaining (PM) and non-PM configurations, offering flexibility for a wide range of system requirements. Customization options are available for fiber type, power handling (ranging from 5W up to 50W), and operational modes (CW or pulsed), allowing users to tailor the isolator to their specific needs.

Built with a focus on reliability and environmental stability, the DK-XS-DT-006-A/2 is manufactured using advanced assembly techniques and rigorous quality control. Its robust construction ensures consistent performance across varying temperatures and challenging operating environments. The isolator series includes multiple form factors, such as in-line, beam expanded, and free-space versions, catering to diverse integration scenarios in both research and industrial settings.

Widely adopted in fiber laser systems, high-power amplifiers, and laboratory research, this isolator is a trusted solution for minimizing feedback and maximizing laser performance. Its adaptability and high-quality design make it a preferred choice for professionals seeking dependable optical isolation in high-power photonics applications.

1064nm High Power Polarization Maintaining Isolator

Visit the DK Photonics Store

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 20 W
Min Isolation: 30 dB
Power Handling: 5 W, 10 W, 20 W, 30 W, 50 W (customizable)
Insertion Loss (IL): 0.3 dB higher per connector added
Return Loss (RL): 5 dB lower per connector added
Extinction Ratio (ER, PM Type): 2 dB lower per connector added
Pass Optical Power (with Connector): 2 W
Fiber Type: PM and Non-PM available, customizable
Operation Mode: CW or Pulse
Isolation: High
Temperature Stability: Excellent

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low Insertion Loss: Minimizes signal attenuation for optimal system performance.
  • High Power Handling: Supports continuous wave (CW) and pulsed operations up to 50W (customizable), ideal for demanding high-power applications.
  • High Isolation: Effectively blocks back-reflected light to protect sensitive laser sources and maintain system stability.
  • Polarization Options: Available in both Polarization Maintaining (PM) and Non-PM configurations to suit diverse application needs.
  • Customizable Fiber Types: Compatible with a wide range of fiber types and connector options; fiber pigtails and wavelengths can be tailored to your requirements.
  • Excellent Temperature Stability: Maintains reliable performance across varying environmental conditions.
  • High Reliability & Durability: Engineered for long-term operation in industrial and laboratory environments.
  • Versatile Configurations: Includes in-line, beam expanded, fiber-in/free-space-out, and free-space isolator options.
  • Low Return Loss: Reduces unwanted reflections, ensuring signal integrity.
  • Wide Application Range: Perfect for high-power fiber lasers, fiber amplifiers, instrumentation, test and measurement, and fiber amplifier lab research.
  • Custom Solutions Available: DK Photonics offers tailored designs for unique requirements, including special power handling, wavelengths, and fiber types.
  • Quality Assurance: Manufactured to strict quality standards for consistent, high-performance operation.

Applications

  • High Power Fiber Laser Systems
    Ideal for integration into high power fiber laser setups to prevent back reflections and ensure stable laser operation.
  • High Power Fiber Amplifiers
    Used in fiber amplifier modules to protect sensitive components from reflected light and enhance amplifier performance.
  • Optical Instrumentation
    Essential in advanced optical instruments where unidirectional light transmission is critical for accurate measurements.
  • Test and Measurement Equipment
    Ensures measurement accuracy by eliminating feedback and stray reflections in optical test setups.
  • Fiber Amplifier Laboratory Research
    Widely used in research environments for developing and testing high power fiber amplifiers and related technologies.
  • Optical Communication Systems
    Protects transmitters and other sensitive components in high power optical communication links from damaging back reflections.
  • Medical Laser Systems
    Applied in medical laser devices to maintain stable output and protect laser sources during high power operation.
  • Industrial Laser Processing
    Used in material processing, cutting, and welding applications to ensure consistent laser performance and system safety.
  • Quantum Optics and Photonics Experiments
    Provides isolation in quantum optics setups, preventing feedback that could interfere with sensitive quantum measurements.
  • Nonlinear Optics Applications
    Essential for experiments and systems involving nonlinear optical effects, where back reflections can disrupt processes.
  • Laser Spectroscopy
    Maintains the integrity of laser sources in high precision spectroscopy applications by blocking unwanted feedback.
  • OEM Integration
    Suitable for OEMs developing custom high power photonic modules and systems requiring reliable optical isolation.

Frequently Asked Questions

What is the DK Photonics 1064nm High Power In-line Optical Isolator?
The DK Photonics 1064nm High Power In-line Optical Isolator is an optical device designed to transmit light in one direction while blocking reflected light in the opposite direction. It is optimized for high power handling, low insertion loss, and high isolation, making it ideal for use in high power fiber lasers, amplifiers, and laboratory research applications.
What are the main applications of the 1064nm High Power Optical Isolator?
This optical isolator is commonly used in high power fiber laser systems, fiber amplifiers, instrumentation, test and measurement setups, and fiber amplifier laboratory research. Its primary function is to prevent back reflections that can destabilize or damage sensitive optical sources.
What power handling options are available for the DK Photonics 1064nm isolator?
The DK Photonics 1064nm High Power In-line Optical Isolator offers customizable power handling options, including 5W, 10W, 20W, 30W, and 50W. Higher power levels can be accommodated upon request, making it suitable for both continuous wave (CW) and pulsed laser applications.
What is the difference between PM and non-PM types for this optical isolator?
PM (Polarization Maintaining) and non-PM types refer to the fiber type used in the isolator. PM isolators maintain the polarization state of the transmitted light, which is critical for certain laser and amplifier systems. Non-PM isolators do not preserve polarization and are suitable for applications where polarization control is not required. Both types are available and can be customized to your needs.
Can the fiber type and connector be customized for the 1064nm isolator?
Yes, DK Photonics offers customization for fiber type, connector options, and even the wavelength or power handling of the isolator. If you have specific requirements, such as custom fiber pigtails or unique operational parameters, you can contact DK Photonics to discuss a tailored solution.
How does the DK Photonics 1064nm isolator ensure high reliability and temperature stability?
The isolator is engineered with high-quality materials and advanced manufacturing processes to provide excellent temperature stability and high reliability. It is designed to operate consistently in demanding environments, making it suitable for industrial and research applications where stable performance is critical.
What should I consider when integrating the 1064nm high power isolator into my system?
When integrating this isolator, consider the required power handling, fiber type (PM or non-PM), connector options, and whether your application involves CW or pulsed operation. For high power applications, splicing fibers is recommended over using connectors. Additionally, inform DK Photonics of your pulse energy and peak power requirements for pulsed applications to ensure optimal performance and safety.

Got more questions? Use the inquiry form to ask the supplier directly.
