Description

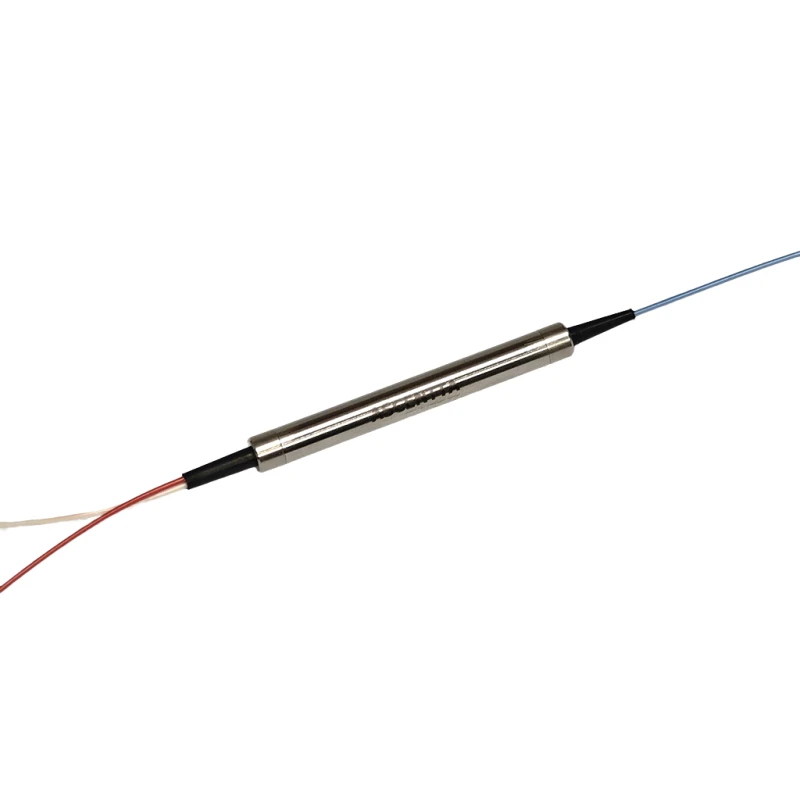

The versatile and high-performance three-port fiber optic circulator from Ascentta, Inc. is a compact optical device designed to transmit signals from port 1 to port 2 and from port 2 to port 3 simultaneously.

The ultra broadband circulator covers 1290-1620nm wavelength range, it performs to replace several circulators in different center wavelengths.

It is widely used in telecommunication systems with fiber gratings and reflective components, delivering exceptional performance. Ascentta also offers multiport circulator modules with a maximum of N<=8 ports.

Ascentta Ultra-Broadband Polarization Insensitive Fiber Circulator (1290-1620nm)

Visit the Ascentta Store

Specifications

Type Of The Device: Circulator
Operating Wavelength: 1290 nm
Max Power: 0.3 W
Min Isolation: 20 dB
Insertion Loss (All SOP) (1→2, Or 2→3): 1.7 dB
Return Loss Min.: 50 dB
Directivity (1→3, Or 3→1) Min.: 50 dB
Fiber Length: 1.5 m
Operating Temperature: -5 to +70 °C
Storage Temperature: -40 to +85 °C
Manufacturer Part Number (MPN): CIR-3-1290-1620-L-10-FA-5.5x38
FindLight SKU: FL-21774

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Versatile and high-performance three-port fiber optic circulator
  • Simultaneous signal transmission from port 1 to port 2 and from port 2 to port 3
  • Super wide band width
  • Ideal for use in DWDM systems with fiber gratings and reflective components
  • Compact and reliable design

Applications

  • Fiber optic communication systems
  • Dense Wavelength Division Multiplexing (DWDM) systems
  • Fiber optic sensing and instrumentation
  • Optical signal routing and switching
  • Testing equipment
  • Research and development in fiber optics

Export & Trade Information

ECCN: EAR99
HTS Code: 9027.90.8400
Estimated US Tariff: 0%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What is the operating wavelength of the Circulator?
The operating wavelength for the circulator is from 1290 nm to 1620 nm.
What is the Transmitting Direction?
The transmitting direction for the 3-port circulator is from port 1 to port 2, and from port 2 to port 3.

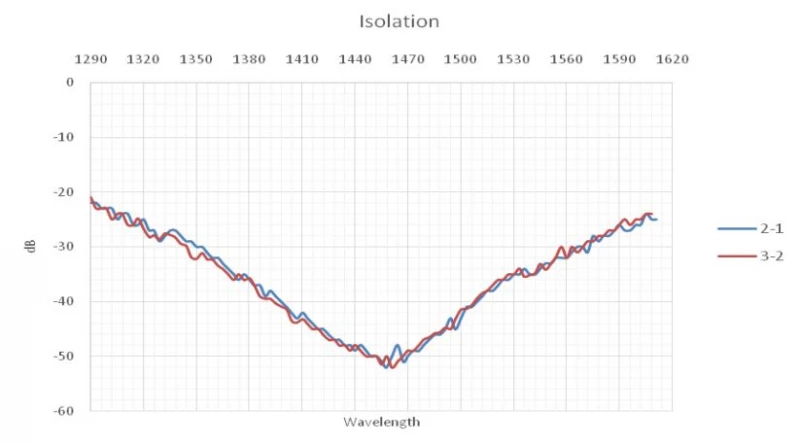

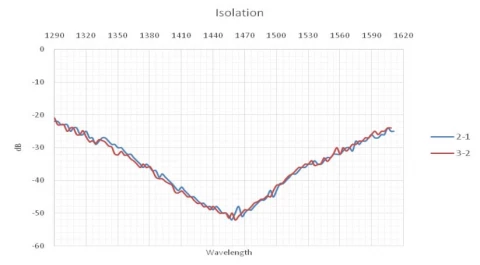

What are the Isolation values?
The typical Isolation at 23℃ (room temperature) is 23 dB, and the minimum is 20 dB. Isolation is a measure of how well the circulator prevents light from traveling in the opposite direction.

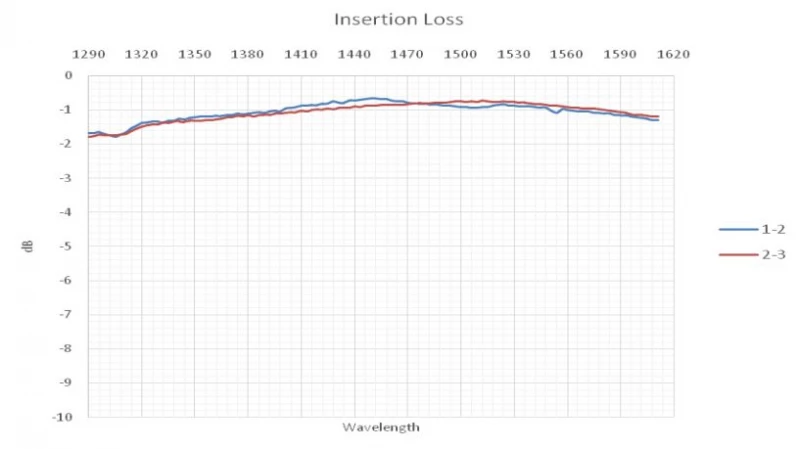

What are the Insertion Loss values?
The typical Insertion Loss at 23℃ is 1.7 dB, and the maximum is 2.0 dB. Insertion Loss is the measure of the power loss when light is transmitted through the circulator.
What is the PDL (Polarization Dependent Loss)?
The maximum PDL is 0.25 dB. This is a measure of the difference in transmission loss when the optical signal's polarization states change.
What is the PMD (Polarization Mode Dispersion)?
The maximum PMD is 0.2 ps. This is a measure of the differential delay of various polarization modes in a fiber.
What is the Return Loss?
The minimum Return Loss is 50 dB. This is a measure of the power reflected back to the source.
What is the Directivity of the Circulator?
The minimum Directivity is 50 dB. Directivity is a measure of how well the circulator guides light from one port to the next without any leakage to the other ports.
What is the maximum Optical Power Handling?
The maximum Optical Power Handling is 300 mW. This is the maximum level of light power that the circulator can handle without being damaged.
What are the operating and storage temperatures?
The operating temperature range is from -5 to 70 degrees Celsius, and the storage temperature range is from -40 to 85 degrees Celsius.
What are the package dimensions?
The standard package dimensions are Φ5.5 x L50 mm, and the mini package dimensions are Φ5.5 x L38 mm.
What is the fiber type, fiber length, and connector type?
The fiber type can be SMF-28 with either 250um or 900um. The fiber length can be customized from 1.0m to 3.0m. The connector type can be none (NE), FC/APC (FA), FC/PC (FC), SC/APC (SA), SC/PC (SC), ST/PC (ST), LC/APC (LA), or LC/PC (LC). Different options or configurations can be requested from Ascentta.

Got more questions? Use the inquiry form to ask the supplier directly.
