Ascentta Isolator-WDM Hybrid (IWDM) for EDFA

Name: Ascentta Isolator-WDM Hybrid (IWDM)
Brand: Ascentta
SKU: FL-23491
Price: 145.00 USD
Availability: InStock

Description

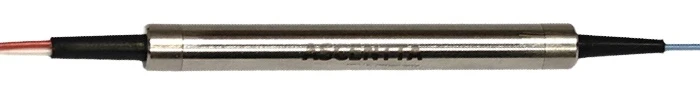

The function of two components with the volume and price of one! Ascentta’s isolator and WDM hybrid is convenient and space-saving without sacrificing performance. High channel isolation, low polarization mode dispersion, excellent directivity can all be expected from this component despite its small size: a cylinder a mere 5.5mm wide and 35mm long. As with most of Ascentta’s components, customization options are abundant, making it an excellent choice, even if your required specifications are atypical or particular.

Available for 1480/1550, 1480/1590, 980/1550, and 980/1590nm. Spec sheet for 1480/1550 and 1480/1590 are accessible from this page. Both forward and backward bump options are available, and both single and dual stage options are available.

Specifications

Type Of The Device:	Isolator
Max Power:	0.3 W
Wavelength:	1480/1550, 1480/1590, 980/1550, or 980/1590 nm
Isolation:	30 (single-stage) or 44 (dual-stage) dB
Signal Bandwidth:	40 nm
Pump Bandwidth:	30 nm
Insertion Loss:	<1.1 (single-stage) or <1.3 (dual-stage) dB
PDL:	<0.1 dB
Return Loss:	>55 dB
Directivity:	>60 dB
Package:	OD5.5xL35 mm
Operating Temperature:	-5 to 70 °C
Manufacturer Part Number (MPN):	IWDM-45-S-F-L-10-FA
FindLight SKU:	FL-23491

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Full functionality of both isolator and WDM
Optical pump
Many customization options
High isolation
Low PMD
High directivity

Applications

Optical amplification
Lasers
FTTX

Export & Trade Information

ECCN:	EAR99
HTS Code:	9027.90.8400
Estimated US Tariff:	0%

Importing, tariffs & codes (Quick Guide) →

$145.00

Volume Pricing:

Qty	Unit Price	Extended Price
5	$143.00	$715.00
10	$140.00	$1,400.00

Discounts apply automatically in cart.

Shipping:: Arrange Pickup ⓘ
Ships from:: United States
Processing:: 35 days
Delivers to:: United States

Made by:: Ascentta
Made in:: China
Warranty:: View full terms
Returns:: View return policy
Sold by:: Ascentta
On FindLight:: since 2020

Got Questions? Ask Below ▼

Message the supplier directly
No signup or account needed
Expect a fast reply

Ask a Question

To: Ascentta
Re: Ascentta Isolator-WDM Hybrid (IWDM)

Name

Work Email

Organization

Country

Qty.

Your message to supplier

Thank you, your message was sent successfully.

Frequently Asked Questions

What is the primary benefit of using the Ascentta IWDM hybrid?

The IWDM combines the functionality of an isolator and WDM into a single compact device, saving space and reducing component count without compromising performance.

What wavelength combinations are supported by this hybrid component?

The IWDM is available in 1480/1550 nm, 1480/1590 nm, 980/1550 nm, and 980/1590 nm configurations.

What are the insertion loss and isolation levels for this device?

It offers low insertion loss of

Is the device suitable for use in compact or space-constrained systems?

Yes, the IWDM has a compact cylindrical package measuring just 5.5 mm in diameter and 35 mm in length, making it ideal for small-form-factor designs.

Can the IWDM be customized for specific application needs?

Yes, Ascentta offers extensive customization for this product, including various bump directions, stage options, and wavelength configurations.
