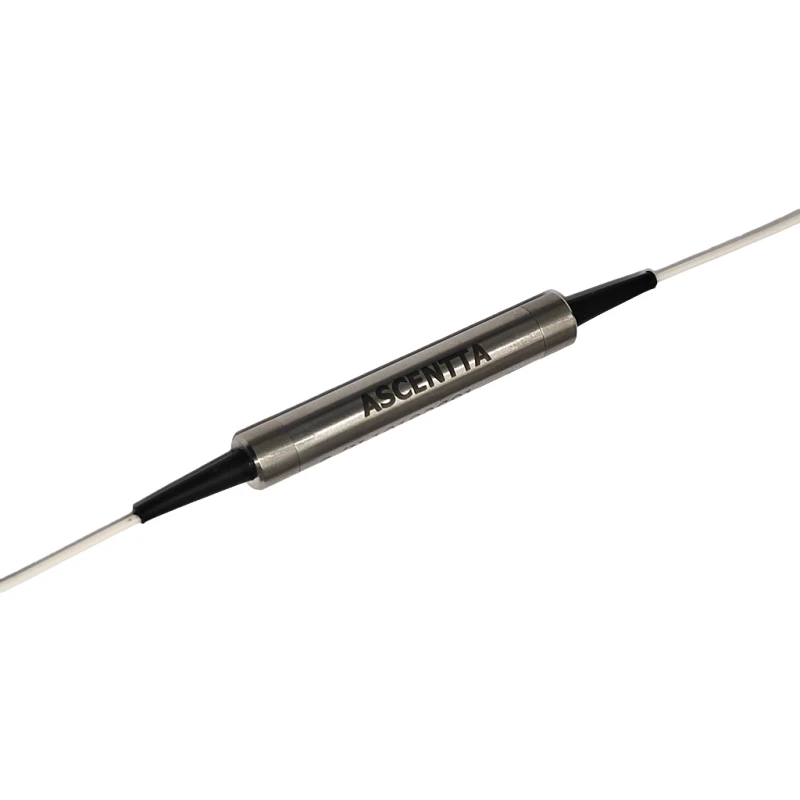

Ascentta High-Isolation Broadband Isolator (1450-1650nm)

Name: Ascentta High-Isolation Broadband Isolator (1450-1650nm)
Brand: Ascentta
Availability: InStock

Description

Ascentta, Inc. offers a wide range of optical isolators, including single-mode, multimode, and polarization-maintaining (PM) isolators. Our isolators are available in both inline and free space configurations, providing exceptional performance in various applications.

With options for different wavelengths and customization, our isolators meet the diverse needs of our customers.

The high isolation broadband isolator covers 1450- 1650nm wavelength range with high isolation up to 62dB

Specifications

Type Of The Device:	Isolator
Operating Wavelength:	1450 nm
Max Power:	0.1 W
Min Isolation:	62 dB
Insertion Loss (23℃, 1450-1650nm All SOP):	1.1 dB
Return Loss (Input/Output) Min.:	55 dB
Fiber Length:	3.0 m
Operation Temperature:	-5 to +60 ℃
Storage Temperature:	-40 to +85 °C

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

High Performance
Compact design
Ultra Broadband
Customizable isolator solutions

Applications

Fiber optic communication systems
Laser systems and optical amplifiers
Fiber optic sensing and instrumentation
Optical signal protection and noise reduction
Testing equipment
Research and development in optics and photonics

Name

Work Email

Organization (recommended)

Your message to supplier

Ships from:

United States

Sold by:

Ascentta ✓ Verified Supplier

On FindLight:

since 2020

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the operating wavelength of the Isolator?

The operating wavelength for the isolator is from 1450 nm to 1650 nm.

What are the Isolation values?

The typical Isolation at 23℃ (room temperature) is 67 dB, and the minimum is 62 dB. Isolation is a measure of how well the isolator prevents light from traveling in the opposite direction.

What are the Insertion Loss values?

The typical Insertion Loss at 23℃ is 1.1 dB, and the maximum is 1.35 dB. Insertion Loss is the measure of the power loss when light is transmitted through the isolator.

What is the PDL (Polarization Dependent Loss)?

The maximum PDL is 0.15 dB. This is a measure of the difference in transmission loss when the optical signal's polarization states change.

What is the PMD (Polarization Mode Dispersion)?

The maximum PMD is 0.1 ps. This is a measure of the differential delay of various polarization modes in a fiber.

What is the Return Loss?

The minimum Return Loss (Input/Output) is 55 dB. This is a measure of the power reflected back to the source.

What is the maximum Optical Power Handling?

The maximum Optical Power Handling is 100 mW. This is the maximum level of light power that the isolator can handle without being damaged.

What are the operating and storage temperatures?

The operating temperature range is from -5 to 60 degrees Celsius, and the storage temperature range is from -40 to 85 degrees Celsius.

What are the package dimensions?

The package dimensions are Φ5.5 x L38 mm.

What is the fiber type, fiber length, and connector type?

The fiber type can be SMF-28 with either 250um or 900um. The fiber length can be customized from 1.0m to 3.0m. The connector type can be none (NE), FC/APC (FA), FC/PC (FC), SC/APC (SA), SC/PC (SC), ST/PC (ST), LC/APC (LA), or LC/PC (LC). Different options or configurations can be requested from Ascentta.
