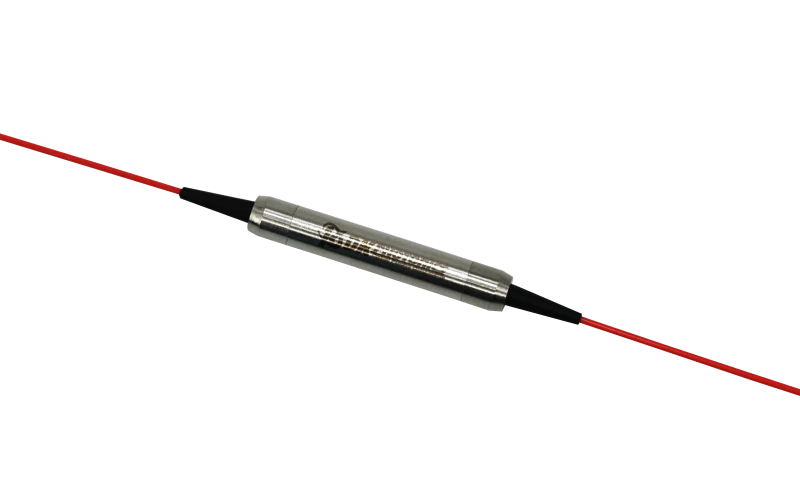

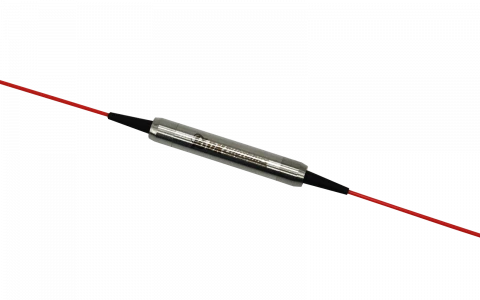

Thumbnail of 1310nm Polarization Maintaining Isolator photo 1

Description

The 1310nm Polarization Maintaining Isolator from DK Photonics is a precision-engineered micro-optic device designed to ensure optimal performance in advanced fiber optic systems. Utilizing high-quality PM panda fiber, this isolator is specifically crafted to guide optical signals in a single direction, effectively eliminating back reflection and back scattering that can compromise system integrity. Its robust construction guarantees low insertion loss and high isolation, making it a reliable choice for demanding applications where signal fidelity and stability are paramount.

This isolator is particularly well-suited for integration into fiber lasers, fiber amplifiers, and sophisticated fiber optic communication networks. Its high extinction ratio ensures that the polarization state of the transmitted light is maintained, which is critical for applications requiring precise polarization control. The device is available with either bare fiber or a 900μm jacket cable, providing flexibility for various installation environments and system configurations.

Engineered for excellent stability and long-term reliability, the 1310nm Polarization Maintaining Isolator is ideal for use in environments where consistent performance is essential. Its compact micro-optic design allows for easy integration into space-constrained setups without sacrificing performance. Additionally, DK Photonics offers customization options to meet specific requirements, including custom fiber pigtails, alternative wavelengths, and tailored handling power, ensuring that the isolator can be adapted to a wide range of specialized applications.

Whether deployed in research laboratories, industrial laser systems, or high-speed communication infrastructures, this isolator stands out for its superior optical performance and adaptability. Its design reflects DK Photonics’ commitment to quality and innovation, providing users with a dependable solution for maintaining polarization and protecting sensitive optical components from disruptive feedback.

1310nm Polarization Maintaining Isolator

Visit the DK Photonics Store

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1310 nm
Max Power: 10 W
Min Isolation: 48 dB
Operating Wavelength Range: ±20 nm
Type: Single Stage/Dual Stage
Typ. Insertion Loss At 23℃: 0.6 dB
Max. Insertion Loss At 23℃: 0.8 dB
Typ. Peak Isolation At 23℃: 58x28x26 dB
Extinction Ratio (Type B): ≥20 dB
Extinction Ratio (Type F): ≥22 dB
Return Loss (input/output): ≥50/50 dB
Fiber Type: PM1300-XP Panda Fiber
Max. Tensile Load: 5 N
Operating Temperature: -5 to +70 ℃
Storage Temperature: -40 to +85 °C
Dimensions: Ф5.5× L35(<5W), 65x12x9(>5W) mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low Insertion Loss: Ensures minimal signal attenuation for high-performance optical systems.
  • High Isolation: Effectively blocks unwanted back reflections and backscattering, protecting sensitive components.
  • High Extinction Ratio: Maintains superior polarization performance, ideal for demanding PM applications.
  • Excellent Stability and Reliability: Robust design ensures consistent operation in various environments.
  • PM Panda Fiber Construction: Utilizes high-quality polarization maintaining panda fiber for optimal performance.
  • Compact Micro-Optic Design: Space-saving form factor suitable for integration into dense optical setups.
  • Customizable Fiber Pigtails and Connectors: Available with bare fiber, 900μm jacket, or custom pigtail options; supports various connector types (e.g., FC/APC).
  • Wide Operating Wavelength: Optimized for 1310nm, with options for other wavelengths upon request.
  • High Power Handling: Supports up to 300mW standard; higher power options available for custom orders.
  • Versatile Applications: Ideal for fiber lasers, fiber amplifiers, fiber optic sensors, and advanced communication systems.
  • Short Lead Time for Custom Orders: Fast response to custom requirements, including fiber type, wavelength, and power handling.
  • Quality Assurance: Manufactured under strict quality control for consistent and reliable performance.

Applications

  • Fiber Laser Systems: Essential for protecting laser sources from back reflections, enhancing performance and stability in industrial, medical, and scientific fiber laser applications.
  • Fiber Amplifiers: Used to prevent unwanted feedback and signal degradation in Erbium-Doped Fiber Amplifiers (EDFAs) and other optical amplifier systems.
  • Fiber Optic Sensing: Ensures accurate measurements in distributed and point fiber optic sensor networks by maintaining polarization and minimizing noise from backscattering.
  • Optical Communication Networks: Improves signal integrity and transmission quality in high-speed, long-haul, and metro fiber optic communication links.
  • Quantum Optics and Quantum Communication: Maintains polarization states critical for quantum key distribution (QKD) and other quantum information applications.
  • Coherent Optical Systems: Supports advanced modulation formats by preserving polarization, reducing crosstalk, and enhancing system performance.
  • Optical Test and Measurement Equipment: Used in laboratory setups and production testing to ensure accurate, repeatable measurements by eliminating back reflections.
  • Optical Gyroscopes and Interferometers: Maintains polarization for high-precision sensing and measurement in navigation and scientific research.
  • Biomedical Imaging and Diagnostics: Enhances imaging quality in Optical Coherence Tomography (OCT) and other fiber-based biomedical instruments.
  • Laser Delivery Systems: Protects sensitive laser sources in industrial processing, micromachining, and medical laser delivery applications.

Frequently Asked Questions

What is a 1310nm Polarization Maintaining Isolator?
A 1310nm Polarization Maintaining (PM) Isolator is a micro-optic device designed to transmit light in one direction while blocking back reflections and back scattering in the reverse direction. Built with PM panda fiber, it is optimized for use at the 1310nm wavelength and is commonly used in fiber lasers, amplifiers, sensors, and communication systems.
What are the key features of the DK Photonics 1310nm PM Isolator?
The DK Photonics 1310nm PM Isolator offers low insertion loss, high isolation, high extinction ratio, and excellent stability and reliability. It can be configured with bare fiber or 900μm jacket cable and is available with various connector options.
What applications are suitable for the 1310nm PM Isolator?
This isolator is ideal for use in fiber laser systems, fiber amplifiers, fiber optic sensors, and optical communication networks where maintaining polarization and preventing back reflections are critical.
How does a polarization maintaining isolator work?
A polarization maintaining isolator uses PM panda fiber to ensure that the polarization state of the transmitted light is preserved. It allows light to pass in one direction while blocking light traveling in the opposite direction, thus protecting sensitive optical components from back reflections and feedback.
Can I order a custom 1310nm PM Isolator with specific requirements?
Yes, DK Photonics offers custom PM isolators tailored to your specifications, including different fiber pigtails, connector types, wavelengths, and power handling capabilities. Contact their sales team with your requirements for a quote and short lead times.
How do connectors affect the performance of the PM Isolator?
When connectors are added, the insertion loss increases by 0.3dB, the return loss decreases by 5dB, and the extinction ratio decreases by 2dB compared to a device without connectors. The default connector key is aligned to the slow axis, and power transmission through the connector should be less than 2W.
What information do I need to provide when ordering a 1310nm PM Isolator?
When ordering, provide the correct part number (P/N) according to DK Photonics' ordering information, including details such as wavelength, fiber type, power handling, fiber length, jacket type, and connector type. For pulse applications, specify the pulse energy and peak power.

Got more questions? Use the inquiry form to ask the supplier directly.
