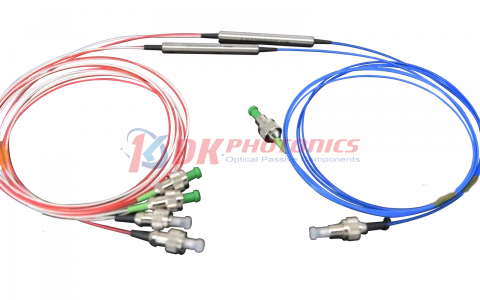

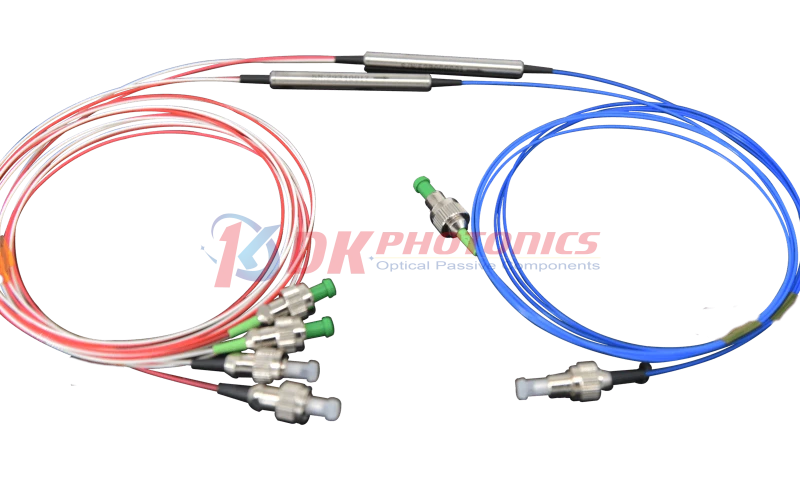

Thumbnail of C+L Band 3 Port Polarization Insensitive Optical Circulator High Isolation photo 1

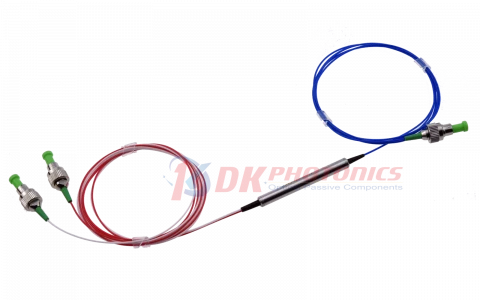

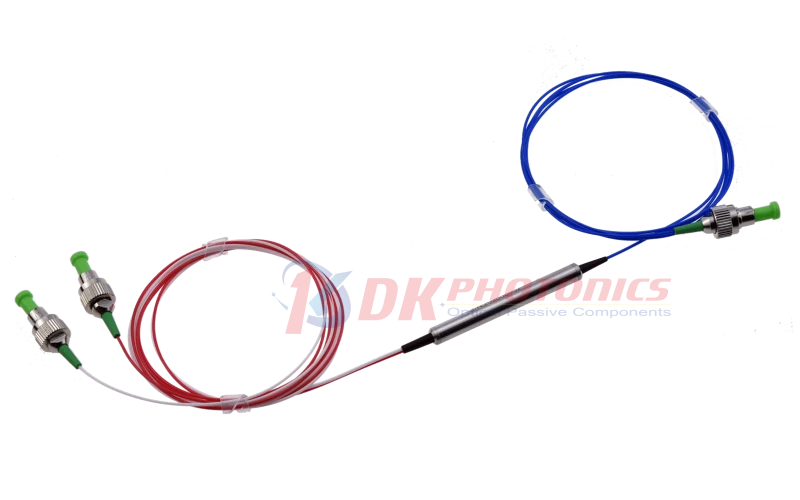

Thumbnail of C+L Band 3 Port Polarization Insensitive Optical Circulator High Isolation photo 2

Description

C+L Band 3-Port Polarization Insensitive Optical Circulator

The C+L Band 3-Port Polarization Insensitive Optical Circulator from DK Photonics is a precision-engineered optical device designed to efficiently route light signals in advanced fiber optic networks. This circulator is tailored for applications requiring high performance in both the C and L wavelength bands, making it a versatile solution for modern optical communication systems. Its polarization-insensitive design ensures consistent performance regardless of the polarization state of the incoming light, which is essential for maintaining signal integrity in complex network environments.

Utilizing proprietary micro-optics packaging and robust metal bonding techniques, this circulator delivers low insertion loss and high isolation, minimizing signal degradation and crosstalk. The device is engineered for high stability and reliability, ensuring long-term operation even in demanding conditions. Its compact form factor allows for easy integration into dense network infrastructures, while its low polarization dependent loss (PDL) further enhances signal quality.

The 3-port configuration is ideal for routing signals in dense wavelength division multiplexing (DWDM) systems, optical add/drop multiplexers, and bi-directional communication setups. It is commonly used in conjunction with fiber Bragg gratings, optical amplifiers such as EDFAs, and in test and measurement instruments like optical time domain reflectometers (OTDRs). The circulator not only protects sensitive components from back-reflected signals, similar to an isolator, but also enables the efficient utilization of rejected light for monitoring or feedback purposes.

Designed to meet the rigorous demands of contemporary fiber optic networks, the DK Photonics C+L Band 3-Port Polarization Insensitive Optical Circulator stands out for its cost-effectiveness, high reliability, and adaptability. It is an excellent choice for system integrators and network operators seeking to optimize signal routing, enhance network performance, and ensure robust protection for critical optical components in a wide range of applications.

C+L Band 3 Port Polarization Insensitive Optical Circulator High Isolation

Visit the DK Photonics Store

Specifications

Type Of The Device: Circulator
Operating Wavelength: Not Specified
Max Power: 1 W
Min Isolation: 40 dB
Typ. Isolation At 23℃: 50 dB
Typ. Insertion Loss At 23℃: 0.9 dB
Max. Insertion Loss At 23℃: 1.1 dB
Min. Cross Talk (Port 1->Port 3): 45 dB
Max. Polarization Dependent Loss,23℃: 0.15 dB
Max. Tensile Load: 5 N
Fiber Type: SMF-28e fiber
Operating Temperature: -5 to +70 °C
Storage Temperature: -40 to +85 °C
Voltage: Ø5.5 x L50, Ø5.5 x L38 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Polarization Insensitive Design: Ensures stable performance regardless of the polarization state of the input light, ideal for demanding optical networks.
  • Low Insertion Loss: Minimizes signal loss during transmission, enhancing overall system efficiency and performance.
  • High Isolation: Provides excellent isolation between ports, preventing unwanted back reflections and crosstalk for superior signal integrity.
  • Low Polarization Dependent Loss (PDL): Guarantees consistent performance across varying polarization states, crucial for high-precision applications.
  • High Stability and Reliability: Engineered with robust micro-optics packaging and metal bonding for long-term, maintenance-free operation.
  • Compact Package: Space-saving design suitable for integration into dense optical systems and modules.
  • Cost-Effective Solution: Delivers premium performance at a competitive price point, making it ideal for large-scale deployments.
  • Wide Operating Wavelength Range (C+L Band): Supports operation across the C and L bands, compatible with modern DWDM and WDM systems.
  • Versatile Applications: Perfect for use in WDM systems, optical fiber amplifiers (EDFA), pump laser sources, fiber optic sensors, test and measurement equipment, and instrumentation.
  • Customizable Options: Available with various fiber pigtails, connector types, and wavelength ranges to meet specific project requirements.
  • Proven Performance: Widely used in high-speed communication systems, bi-directional networks, dispersion compensation, wavelength add/drop, and OTDR measurements.
  • Quality Assurance: Manufactured under strict quality control standards for consistent, reliable operation in critical applications.

Applications

  • Dense Wavelength Division Multiplexing (DWDM) Systems
    Enhances channel routing and separation in advanced DWDM networks, enabling efficient bidirectional transmission and wavelength add/drop multiplexing.
  • Wavelength Division Multiplexing (WDM) Systems
    Facilitates multiplexing and demultiplexing of multiple wavelengths, improving network capacity and flexibility.
  • Optical Fiber Amplifiers (EDFA, Raman, etc.)
    Protects amplifiers from back-reflected signals and optimizes signal direction, ensuring stable and efficient amplification.
  • Pump Laser Source Protection
    Shields sensitive pump lasers from harmful back-reflections, extending device lifespan and maintaining performance.
  • Fiber Optic Sensors
    Enables precise signal routing and isolation in distributed and point fiber optic sensing applications, such as temperature, strain, and pressure monitoring.
  • Test and Measurement Equipment
    Used in optical test setups, including Optical Time Domain Reflectometers (OTDR), for accurate signal direction and reflection analysis.
  • Instrumentation
    Integrates into laboratory and industrial instruments for controlled light routing and measurement accuracy.
  • Bi-directional Communication Systems
    Supports simultaneous two-way data transmission over a single fiber, increasing network efficiency and reducing infrastructure costs.
  • Dispersion Compensation Modules
    Works with fiber Bragg gratings and other reflective components to manage chromatic dispersion in high-speed optical networks.
  • Wavelength Add/Drop Multiplexers (OADM)
    Enables selective addition or removal of specific wavelengths in optical networks, supporting flexible and scalable network architectures.
  • Reflective Component Integration
    Ideal for use with fiber Bragg gratings, thin-film filters, and other reflective devices for signal routing and filtering.
  • Research and Development
    Essential in R&D environments for prototyping, testing, and developing new photonic devices and systems.

Frequently Asked Questions

What is a C+L Band 3 port Polarization Insensitive Optical Circulator?
A C+L Band 3 port Polarization Insensitive Optical Circulator is a compact, high-performance fiber optic device that routes light signals from Port 1 to Port 2, and from Port 2 to Port 3, while preventing back-reflected signals from returning to the source. It operates across the C and L telecommunication bands and is designed to be insensitive to the polarization of light, ensuring stable performance in various optical systems.
What are the main applications of the DK Photonics 3 port optical circulator?
The DK Photonics 3 port optical circulator is widely used in WDM systems, optical fiber amplifiers, pump laser sources, fiber optic sensors, test and measurement setups, instrumentation, dispersion compensation, EDFA applications, and optical time domain reflectometer (OTDR) measurements.
What are the key features of the DK Photonics optical circulator?
Key features include low insertion loss, high isolation, low polarization dependent loss (PDL), high stability and reliability, and cost-effectiveness. Its compact design and proprietary metal bonding micro-optics packaging further enhance its performance and durability.
How does a 3 port optical circulator differ from an optical isolator?
While both devices protect the input fiber from back-reflected signals, a 3 port optical circulator not only blocks return signals but also routes them to a third port, allowing the rejected light to be utilized elsewhere in the system. An isolator simply blocks or absorbs the return signal without redirecting it.
Is the DK Photonics optical circulator compatible with custom configurations?
Yes, DK Photonics offers custom circulators tailored to specific requirements, including custom fiber pigtails, different operating wavelengths, and varying power handling capabilities. Customers are encouraged to provide their desired specifications for a tailored solution.
What should I consider when ordering a DK Photonics optical circulator with connectors?
When ordering with connectors, note that the insertion loss will be 0.3dB higher and the return loss will be 5dB lower compared to devices without connectors. It is also not recommended to choose a 250μm bare fiber pigtail if a connector is required.
How do I select the correct part number for my application?
To select the correct part number, use the ordering information format provided by DK Photonics (P/N: PIOC-①-②-③-④-⑤-⑥-⑦) and specify your required parameters. Providing a detailed description of your application and requirements will help ensure you receive the optimal product configuration.
