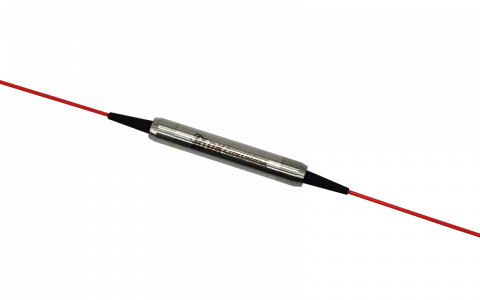

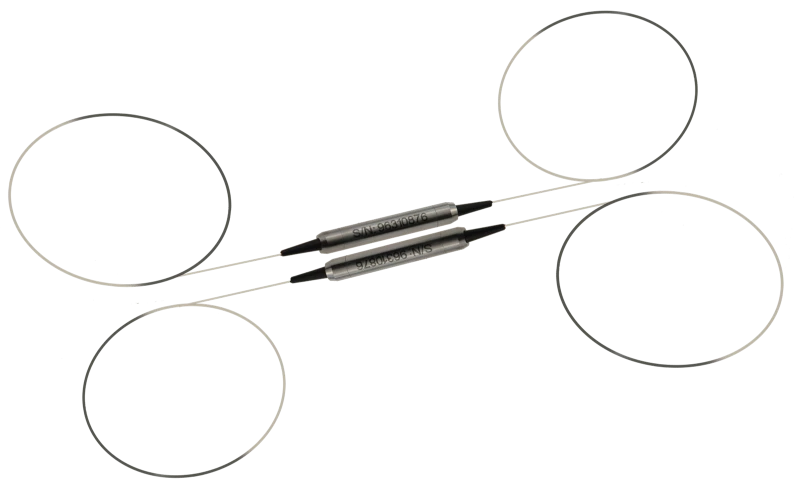

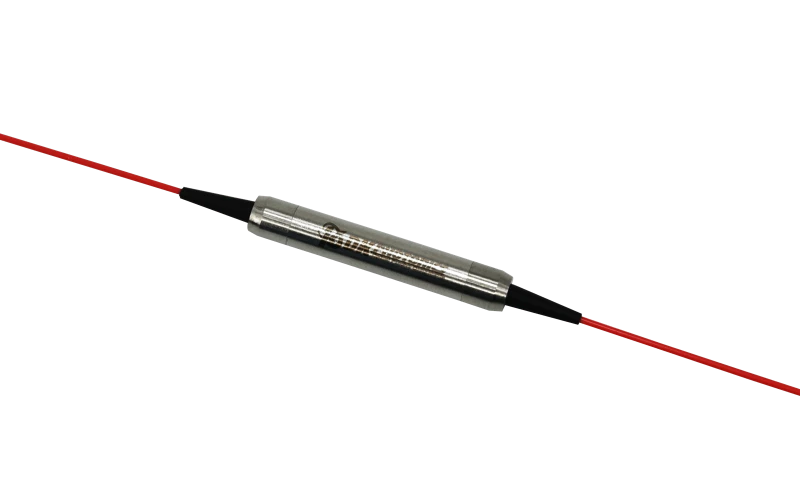

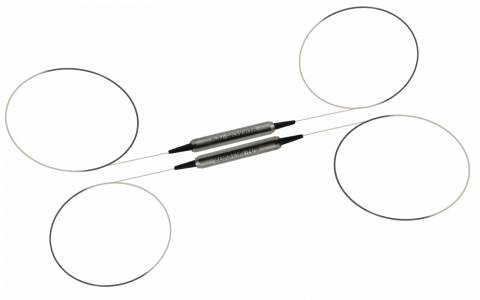

1480nm Polarization Maintaining Isolator
Description
The 1480nm Polarization Maintaining Isolator by DK Photonics is a cutting-edge two-port micro-optic device constructed with PM panda fiber. This isolator excels in guiding optical light in one direction while effectively eliminating back reflection and back scattering in the reverse direction.
Its design ensures low insertion loss, high isolation, a remarkable extinction ratio, and unparalleled reliability and stability. Whether used in fiber lasers, fiber amplifiers, fiber sensor applications, or communications setups, this isolator stands as a pinnacle of precision and performance.
1480nm Polarization Maintaining Isolator
Specifications |
|
|---|---|
| Type Of The Device: | Isolator |
| Operating Wavelength: | 1480 nm |
| Max Power: | 10 W |
| Min Isolation: | 48 dB |
| Type: | Single Stage/Dual Stage |
| Operating Wavelength Range: | ±20 nm |
| Typ. Insertion Loss At 23℃: | 0.6 dB |
| Max. Insertion Loss At 23℃: | 0.8 dB |
| Typ. Peak Isolation At 23℃: | 58 dB |
| Extinction Ratio (Type B): | ≥20 dB |
| Extinction Ratio (Type F): | ≥22 dB |
| Return Loss (input/output): | ≥50/50 dB |
| Fiber Type: | Fiber Type |
| Max. Tensile Load: | 5 N |
| Operating Temperature: | -5 to +70 °C |
| Storage Temperature: | -40 to +85 ℃ |
| Dimensions: | Ф5.5× L35(<5W), 65x12x9(>5W) mm |
Features
- Low Insertion Loss: Minimizes signal loss for efficient transmission
- High Extinction Ratio: Ensures optimal signal separation and quality
- High Isolation: Effectively isolates input and output signals
- Excellent Stability and Reliability: Ensures consistent and reliable performance over time
Applications
- Fiber Laser: Enhances the stability and efficiency of fiber laser systems
- Fiber Amplifier: Boosts optical signals for long-distance communication
- Fiber Sensor: Facilitates high-precision fiber optic sensing applications
- Communications: Ensures smooth and reliable data transmission in communication
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2015
Frequently Asked Questions
An optical isolator is a device that can block back reflection and backscattering in the reverse direction at any polarization state.
The 1480nm Polarization Insensitive Isolator has high isolation, low insertion loss, low polarization sensitivity, and an optical path that is epoxy-free.
The 1480nm Polarization Insensitive Isolator is used in fiber optic amplifiers, CATV fiber optic links, fiber optic systems testing, fiber optic LAN systems, and telecommunications.
The performance specification of the 1480nm Polarization Insensitive Isolator includes low insertion loss, high isolation, high return loss, and excellent environmental stability and reliability.
Yes, the 1480nm Polarization Insensitive Isolator can be customized. Customers can provide detailed descriptions of their requirements for customization.
