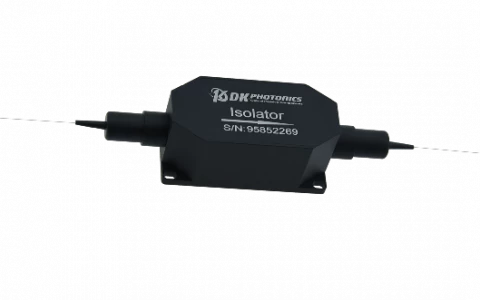

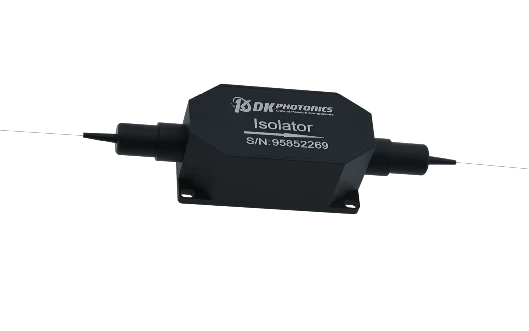

1064nm High Power In-line Optical Isolator – DK-XS-DT-006-A/2

The 1064nm High Power In-line Optical Isolator from DK Photonics is engineered to deliver superior performance in demanding fiber laser and amplifier systems. Designed for high power applications, this isolator ensures unidirectional light transmission, effectively protecting sensitive optical components from detrimental back reflections and feedback. Its robust construction and advanced optical design make it an essential component for maintaining system stability and maximizing the performance of high-power fiber lasers and amplifiers.

This isolator stands out for its exceptionally low insertion loss and high isolation, which are critical for minimizing signal degradation and preventing unwanted interference. The product is available in both polarization-maintaining (PM) and non-PM configurations, catering to a wide range of system requirements. Customization options are available for fiber type, power handling (ranging from 5W up to 50W), and operational modes (CW or pulsed), ensuring seamless integration into various optical setups.

The DK-XS-DT-006-A/2 is meticulously designed to offer excellent temperature stability and high reliability, making it suitable for use in laboratory research, test and measurement instrumentation, and industrial environments. Its versatility is further enhanced by the availability of different package types, including in-line, beam expanded, and free-space configurations, allowing users to select the optimal solution for their specific application.

With a focus on quality and adaptability, DK Photonics’ high power isolator series is trusted by professionals worldwide for its consistent performance and durability. Whether for standard or custom requirements, this isolator provides a reliable solution for protecting high-power optical systems and ensuring uninterrupted operation in advanced photonics applications.

1064nm High Power In line Optical Isolator -2W

Visit the DK Photonics Store

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 2 W
Min Isolation: 28 dB
Wavelength: 1064 nm
Power Handling: 5 W, 10 W, 20 W, 30 W, 50 W (customizable)
Insertion Loss (IL): 0.3 dB higher with connector
Return Loss (RL): 5 dB lower with connector
Extinction Ratio (ER): 2 dB lower (PM type) with connector
Pass Optical Power (with Connector): 2 W
Type: PM and Non-PM available
Fiber Type: Customizable
Operation Mode: CW or Pulse

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low Insertion Loss: Ensures maximum transmission efficiency with minimal signal loss.
  • High Power Handling: Supports continuous wave (CW) or pulsed operation with customizable power ratings up to 50W, ideal for demanding laser applications.
  • High Isolation: Effectively blocks back-reflected light to protect sensitive laser sources and maintain system stability.
  • Polarization Maintaining (PM) and Non-PM Options: Available in both PM and non-PM configurations to suit diverse application requirements.
  • Customizable Fiber Types: Compatible with a wide range of fiber types and connector options, with custom fiber pigtails available upon request.
  • Excellent Temperature Stability: Delivers reliable performance across a broad temperature range, ensuring consistent operation in varying environments.
  • High Reliability and Durability: Engineered for long-term use with robust construction and superior environmental stability.
  • Multiple Package Types: Offers in-line, beam expanded, fiber-in/free-space-out, and free-space isolator configurations for flexible system integration.
  • Wavelength Specific: Optimized for 1064nm, making it ideal for YAG and other high-power fiber laser systems.
  • Custom Solutions Available: Tailored designs for specific wavelengths, power levels, and application needs upon request.

Applications

  • High Power Fiber Laser Systems
    Ensures stable, unidirectional light transmission in high power fiber laser setups, preventing back-reflection and protecting sensitive laser sources.
  • High Power Fiber Amplifiers
    Protects fiber amplifiers from destabilizing feedback and enhances overall system reliability and performance.
  • Optical Instrumentation
    Used in advanced optical instruments to maintain signal integrity by eliminating unwanted reflections and feedback.
  • Test and Measurement Equipment
    Essential for precise optical measurements by ensuring one-way light propagation and minimizing noise from reflected signals.
  • Fiber Amplifier Laboratory Research
    Widely used in research environments to safeguard experimental setups and improve the accuracy of fiber amplifier studies.
  • Optical Communication Systems
    Prevents feedback in high-speed optical networks, ensuring stable and reliable data transmission.
  • Medical Laser Systems
    Protects high power medical lasers from back-reflected light, enhancing safety and operational stability.
  • Industrial Material Processing
    Used in laser cutting, welding, and marking systems to prevent damage from reflected laser light.
  • Quantum Optics and Photonics Experiments
    Maintains coherence and stability in sensitive quantum optics setups by blocking unwanted feedback.
  • Free Space Optical Systems
    Suitable for integration in free space optical isolator configurations, supporting both fiber-in/free-space-out and free-space-only designs.
  • Laser Pumping Applications
    Ensures efficient and safe operation of laser pumping modules by isolating pump sources from reflected signals.
  • Custom Fiber Optic Solutions
    Can be tailored for unique applications requiring specific fiber types, wavelengths, or power handling capabilities.

Frequently Asked Questions

What is a 1064nm High Power In-line Optical Isolator?
A 1064nm High Power In-line Optical Isolator is an optical device designed to allow light to pass in only one direction, preventing back reflections and feedback into the laser source. It is optimized for high power applications at the 1064nm wavelength, commonly used in fiber laser systems, amplifiers, and instrumentation.
What are the key features of the DK Photonics 1064nm High Power In-line Optical Isolator?
The DK Photonics 1064nm High Power In-line Optical Isolator offers low insertion loss, high isolation, high power handling (customizable up to 50W), excellent temperature stability, high reliability, and options for both polarization-maintaining (PM) and non-PM fibers. Custom fiber types and power handling levels are also available.
What applications are suitable for the 1064nm High Power In-line Optical Isolator?
This optical isolator is ideal for high power fiber lasers, fiber amplifiers, laboratory research, instrumentation, and test and measurement setups. It is particularly useful in environments where preventing back reflections and feedback is critical for system stability and performance.
Can the DK Photonics 1064nm High Power In-line Optical Isolator be customized?
Yes, DK Photonics offers customization for fiber type, power handling (CW or pulsed operation up to 50W), connector options, and even different wavelengths. Customers can request custom specifications to meet their specific application requirements.
What is the difference between PM and non-PM types in this optical isolator?
PM (Polarization Maintaining) isolators preserve the polarization state of light, making them suitable for applications where polarization control is critical. Non-PM isolators do not maintain polarization and are used in systems where polarization is not a concern. Both types are available for the DK Photonics 1064nm isolator.
How does adding connectors affect the performance of the optical isolator?
Adding connectors to the isolator increases insertion loss by 0.3 dB, reduces return loss by 5 dB, and decreases extinction ratio by 2 dB for PM types. Additionally, the maximum pass optical power is limited to 2W when connectors are used; higher power applications require direct fiber splicing.
How do I select the correct part number or request a quote for a custom isolator?
To select the correct part number or request a quote, provide DK Photonics with your required specifications, including fiber type, power handling, wavelength, and any special requirements. If you need a custom solution, contact their sales team directly with your application details for a tailored recommendation.

Got more questions? Use the inquiry form to ask the supplier directly.
