Page 4 - Fiber Isolators & Circulators

1030nm High Power Free Space 5mm Faraday Optical Isolator CSRAYZER_HIO-5-1030-HP-113X54X54-SD
CSRayzer Optical Technology
Add to watch list
1030nm High Power Free Space 5mm Faraday Optical Isolator CSRAYZER_HIO-5-1030-HP-113X54X54-SD
Compare
CSRayzer offers different clear apertures and wavelength range free space rotator and isolator, also called Faraday rotator and isolator, which is a device that changes the polarization state of light based on the Faraday magneto-optical effect. It is available with different clear aperture sizes, including diameters of 3, 5, 6, 7, 8 ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 1030 nm
Max Power: 50 W
Min Isolation: 30 dB
Transmission@λc: ≥92 %
...
Data Sheet
1064nm High Power Free Space 5mm Faraday Optical Isolator CSRAYZER_HIO-5-1064-HP-77X60X41-XA
CSRayzer Optical Technology
Add to watch list
1064nm High Power Free Space 5mm Faraday Optical Isolator CSRAYZER_HIO-5-1064-HP-77X60X41-XA
Compare
CSRayzer offers different clear apertures and wavelength range free space rotator and isolator, also called Faraday rotator and isolator, which is a device that changes the polarization state of light based on the Faraday magneto-optical effect. It is available with different clear aperture sizes, including diameters of 3, 5, 6, 7, 8 ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 100 W
Min Isolation: 35 dB
Size: 70x60x41 mm
...
Data Sheet
1064nm High Power Free Space 5mm Faraday Optical Isolator CSRAYZER_HIO-5-1064-HP-81x52x38-XA1
CSRayzer Optical Technology
Add to watch list
1064nm High Power Free Space 5mm Faraday Optical Isolator CSRAYZER_HIO-5-1064-HP-81x52x38-XA1
Compare
CSRayzer offers different clear apertures and wavelength range free space rotator and isolator, also called Faraday rotator and isolator, which is a device that changes the polarization state of light based on the Faraday magneto-optical effect. It is available with different clear aperture sizes, including diameters of 3, 5, 6, 7, 8 ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 100 W
Min Isolation: 35 dB
Clear Aperture: 5 mm
...
Data Sheet
808nm High Power Free Space 6mm Faraday Optical Isolator CSRAYZER_HIO-6-808-HP-113X54X54-SD
CSRayzer Optical Technology
Add to watch list
808nm High Power Free Space 6mm Faraday Optical Isolator CSRAYZER_HIO-6-808-HP-113X54X54-SD
Compare
CSRayzer offers different clear apertures and wavelength range free space rotator and isolator, also called Faraday rotator and isolator, which is a device that changes the polarization state of light based on the Faraday magneto-optical effect. It is available with different clear aperture sizes, including diameters of 3, 5, 6, 7, 8 ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 808 nm
Max Power: 50 W
Min Isolation: 30 dB
Clear Aperture: 6 Or Specify mm
...
Data Sheet
1064nm High Power Free Space 6mm Faraday Optical Isolator CSRAYZER_HIO-6-1064-HP-113X54X54-SD
CSRayzer Optical Technology
Add to watch list
1064nm High Power Free Space 6mm Faraday Optical Isolator CSRAYZER_HIO-6-1064-HP-113X54X54-SD
Compare
CSRayzer offers different clear apertures and wavelength range free space rotator and isolator, also called Faraday rotator and isolator, which is a device that changes the polarization state of light based on the Faraday magneto-optical effect. It is available with different clear aperture sizes, including diameters of 3, 5, 6, 7, 8 ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 50 W
Min Isolation: 30 dB
Clear Aperture: 6 Or Specify mm
...
Data Sheet
1053nm High Power Free Space 8mm Faraday Optical Isolator CSRAYZER_HIO-8-1053-HP-66x60x60-SD
CSRayzer Optical Technology
Add to watch list
1053nm High Power Free Space 8mm Faraday Optical Isolator CSRAYZER_HIO-8-1053-HP-66x60x60-SD
Compare
CSRayzer offers different clear apertures and wavelength range free space rotator and isolator, also called Faraday rotator and isolator, which is a device that changes the polarization state of light based on the Faraday magneto-optical effect. It is available with different clear aperture sizes, including diameters of 3, 5, 6, 7, 8 ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 1053 nm
Max Power: 50 W
Min Isolation: 32 dB
Clear Aperture: 8 or Specify mm
...
Data Sheet

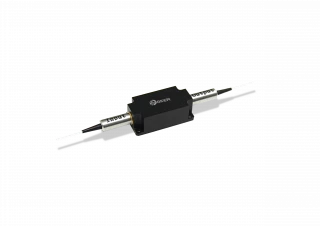

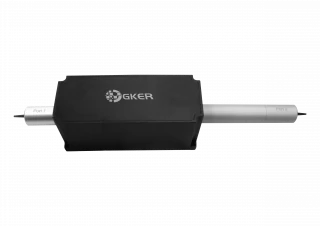

UltraGuard HPMI Series: High-Power Isolator for Laser and Optical Systems (1064nm | 50W)
GKER LASER TECHNOLOGY CO.,LTD.
Add to watch list
UltraGuard HPMI Series: High-Power Isolator for Laser and Optical Systems (1064nm | 50W)
Compare
The High Power Polarization Maintaining Isolator (HPMI Series) Rev 11 is a cutting-edge optical device designed to selectively transmit light along an optical fiber while isolating unwanted reflections or signals. This circulator operates at a center wavelength of 1064 nm, ensuring optimal performance for high-power applications such ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 1064/1550/1908/1940 nm
Max Power: 50 W
Min Isolation: 25 dB
Min. Extinction Ratio: 20 dB
...
Data Sheet
High Power Polarization Maintaining Circulator (50W, HPMCIR Series)
GKER LASER TECHNOLOGY CO.,LTD.
Add to watch list
High Power Polarization Maintaining Circulator (50W, HPMCIR Series)
Compare
The High Power Polarization Maintaining Circulator (HPMCIR Series) is an optical device meticulously engineered for high-power fiber laser and instrumentation applications. Operating at the central wavelength of 1064nm, this circulator boasts of low insertion loss, high isolation, and exceptional power handling capabilities. ...

Specifications
Type Of The Device: Circulator
Operating Wavelength: 1064 nm
Max Power: 50 W
Min Isolation: 25 dB
Min. Extinction Ratio: 20 dB
...
Data Sheet
Fiber Optic Circulators
OZ Optics
Add to watch list
Fiber Optic Circulators
Compare
The Fiber Optic Circulators from OZ Optics are essential signal routers that efficiently transmit light from an input fiber to an output fiber while directing any returning light along the output fiber to a third port. These circulators offer low insertion loss, miniature packages, high power handling, a wide wavelength range, low ...

Specifications
Type Of The Device: Circulator
Operating Wavelength: 780, 850, 1060, 1310, 1480, 1550 nm
Max Power: 0.25 W
Min Isolation: -- dB
Extinction Ratio: 20, 25, 30 dB
...
Data Sheet
Fiber Optic Isolators for High Power Applications
OZ Optics
Add to watch list
Fiber Optic Isolators for High Power Applications
Compare
The Fiber Optic Isolators offered by OZ Optics are designed to handle high optical power and provide excellent isolation levels with low insertion loss. These isolators are available in polarization sensitive and insensitive versions, covering a wavelength range of 532nm to 2000nm. They are compact in size and built with stable and ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 2000 nm
Max Power: 10 W
Min Isolation: 60 dB
Insertion Loss: <1.4 dB
...
Data Sheet
850nm TGG Based Optical Isolator
DK Photonics
Add to watch list
850nm TGG Based Optical Isolator
Compare
The TGG Based Optical Isolator is characterized with low insertion loss, high isolation, high return loss, excellent environmental stability and reliability. It has been widely used in lasers, transmitters and other fiber optics communication equipment to suppress back reflection and back scattering. DK Photonics offers a large ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 850 nm
Max Power: 10 W
Min Isolation: 25 dB
Data Sheet
Polarization-Maintaining Fiber Optical Circulator
Lfiber Optic Limited
Add to watch list
Polarization-Maintaining Fiber Optical Circulator
Compare
LFIBER's polarization maintaining optical circulator with high extinction ratio is a passive component based on the Faraday effect, transmitting light signals from one port to the next sequential port with low loss, but at the same time blocking any light transmission to the previous port.  By using polarization maintaining ...

Specifications
Type Of The Device: Circulator
Operating Wavelength: 30 nm
Max Power: 300 W
Min Isolation: 40 dB
Port Type: 3 Port, 4 Port
...
Data Sheet
980nm / 1030nm / 1064nm High Power PM Optical Fiber Isolator 10W 20W 50W
Ruik-tech Communication (Dongguan) Co.,LTD.
Add to watch list
980nm / 1030nm / 1064nm High Power PM Optical Fiber Isolator 10W 20W 50W
Compare
Ruik的保偏光隔离器是一种器件，它允许光通过无源路径从输入传输到输出，同时阻止反向。Ruik 的保偏光隔离器是一种器件，它允许光通过无源路径从输入传输到输出，同时阻止反向。 Ruik的偏振波保持光隔离器是一种设备，其允许光通过从被动路线发送输入到输出同时阻止反向。Ruik\'s polarization-maintaining optical isolator is a device, which allows the light to transmit through the passive route from input to output while blocking the reversed ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 50 W
Min Isolation: 25 dB
Data Sheet
1310nm / 1550nm / 2000nm High Power PM Optical Fiber Isolator
RUIK-TECH COMMUNICATION (Dongguan) CO.,LTD
Add to watch list
1310nm / 1550nm / 2000nm High Power PM Optical Fiber Isolator
Compare
Ruik的保偏光隔离器是一种设备，它允许光通过无源路径从输入传输到输出，同时阻止Ruik的保偏光隔离器是一种设备，它允许光从输入通过无源路径传输Ruik的保偏光隔离器是一种设备，它允许光通过无源路径从输入传输到输出，同时阻挡反向到输出，同时阻断反方向Ruik\'s polarization maintaining optical isolator is a device, which allows the light to transmit through the passive route from input to output, while blocking the reversed direction

Specifications
Type Of The Device: Isolator
Operating Wavelength: 1310-2000 nm
Max Power: 10 W
Min Isolation: 45 dB
Data Sheet
High Power 980nm PM 3-port Optical Circulator
Seagnol Photonics Co. Ltd
Add to watch list
High Power 980nm PM 3-port Optical Circulator
Compare
High Power 980nm Polarization Maintaining (PM) 3-port Optical Circulator is a fiber passive component built with TGGcrystal, which can change signal light transmission path, the signal can be delivered from Port 1 to Port 2, the other signallight from Port 2 to Port 3, the high isolation can block the back reflection light. It\'s ...

Specifications
Type Of The Device: Circulator
Operating Wavelength: 980 nm
Max Power: 20 W
Min Isolation: 22 dB
Max. Insertion Loss: 1.5 dB
...
Data Sheet
High Power 2000nm PM Optical Isolator
Seagnol Photonics Co. Ltd
Add to watch list
High Power 2000nm PM Optical Isolator
Compare
High Power 2000nm Polarization Maintaining Optical Isolator is a fiber passive component built with PM fiber, it allowslight signal to be delivered in one forward direction and avoid the back reflection light, it\'s widely used in amplifier system,fiber optic sensor system to protect the light source and lower down the optical signal ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 2000 nm
Max Power: 20 W
Min Isolation: 18 dB
Fiber Type: PM 1950 Panda Fiber
...
Data Sheet
S+C+L Band 3-port Polarization Insensitive Optical Circulator
Seagnol Photonics Co. Ltd
Add to watch list
S+C+L Band 3-port Polarization Insensitive Optical Circulator
Compare
S+C+L 1460-1620nm 3-port Polarization Insensitive Optical Circulator is a fiber passive component built with SM fiber,which can change signal light transmission path, the signal can be delivered from Port 1 to Port 2, the other signal lightfrom Port 2 to Port 3, the high isolation can block the back reflection light. It\'s widely ...

Specifications
Type Of The Device: Circulator
Operating Wavelength: 1460-1620 nm
Max Power: 0.5 W
Min Isolation: 40 dB
Max. Insertion Loss: 1.2 dB
...
Data Sheet
High Power 635nm 3-port Polarization Insensitive Optical Circulator
Seagnol Photonics Co. Ltd
Add to watch list
High Power 635nm 3-port Polarization Insensitive Optical Circulator
Compare
High Power 635nm 3-port Polarization Insensitive Optical Circulator is a fiber passive component built with TGG crystal,which can change signal light transmission path, the signal can be delivered from Port 1 to Port 2, the other signal lightfrom Port 2 to Port 3, the high isolation can block the back reflection light. It\'s widely ...

Specifications
Type Of The Device: Circulator
Operating Wavelength: 635 nm
Max Power: 2 W
Min Isolation: 20 dB
Wavelength: 633 nm
...
Data Sheet
High Power 532nm PM Optical Isolator
Seagnol Photonics Co. Ltd
Add to watch list
High Power 532nm PM Optical Isolator
Compare
High Power 532nm Polarization Maintaining Optical Isolator is a fiber passive component built with TGG crystal, it allowslight signal to be delivered in one forward direction and avoid the back reflection light, it\'s widely used in biomedical system,fiber optic sensor system to protect the light source and lower down the optical ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 532 nm
Max Power: 2 W
Min Isolation: 22 dB
Wavelength: 532 nm
...
Data Sheet
GLSUN High Power Optical Isolators, Free Space Isolators, In-line Optical Isolator
Guilin GLsun Science and Tech Group Co.,LTD.
Add to watch list
GLSUN High Power Optical Isolators, Free Space Isolators, In-line Optical Isolator
Compare
GLSUN 1064nm-2w optical isolator is based on Faraday rotation effect to break the reciprocity of light transmission, so as to achieve the purpose of forward light passing and reverse light isolation. The specific Faraday optical rotation materials utilize for achieving high isolation and improving the efficiency of light ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 1064~1610 nm
Max Power: 2~20 W
Min Isolation: ≥28 dB
Data Sheet
High Power Fiber Optical Isolator (up to 100W)
RUIK-TECH Communication (Dongguan) Co.,Ltd.
Add to watch list
High Power Fiber Optical Isolator (up to 100W)
Compare
The High Power Fiber Optical Isolator (PM or Non-PM, 1064/1053/1030/980/850/808/780nm) is a passive optical device that only allows the signal light to pass in one direction. The role of the optical isolator is to prevent the adverse effects of back-reflected light in the optical path due to various reasons on the light source and ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 780, 808, 850, 915, 980, 1030, 1040, 1053, 1064, 1080 nm
Max Power: 100 W
Min Isolation: 26 dB
Max. Insertion Loss: 1.0dB
...
Data Sheet
High Power Polarization-Maintaining Isolator (50W)
Lfiber Optic Limited
Add to watch list
High Power Polarization-Maintaining Isolator (50W)
Compare
High power polarization-maintaining isolator allows light to propagate in one direction but block transmission in the opposite direction. At the same time, by using PM panda fibers it maintains a well-defined state of polarization (SOP) of the light. This fiber-coupled 1064/1053/1030/980 nm PM optical isolator has power handling up ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 980, 1030, or 1053, 1064 nm
Max Power: 50 W
Min Isolation: 25 dB
Extinction Ratio At 23℃ (dB): ≥20
...
Data Sheet
Polarization Maintaining Isolator (High Extinction Ratio)
Lfiber Optic Limited
Add to watch list
Polarization Maintaining Isolator (High Extinction Ratio)
Compare
The high-extinction-ratio optical isolator (polarization-maintaining fiber optic isolators) is a fiber-coupled optical component which lets light pass through in one direction, but block it in the opposite direction. At the same time, by using PM Panda fibers it’s capable of maintaining a well-defined state of polarization ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 1310, 1480, 1550 nm
Max Power: 300 W
Min Isolation: 28, 48 dB
Fiber Type: Panda PM fiber
...
Data Sheet
High-Power High-Isolation PM Isolator
Lfiber Optic Limited
Add to watch list
High-Power High-Isolation PM Isolator
Compare
The High-Power High-Isolation PM Isolator (1064nm, 1030nm, 980nm, 915nm, 850nm, 808nm, 780nm) is a polarization-independent fiber component that allows all polarized light (not just the light polarized in a specific direction) to propagate in one direction but blocks it in the opposite direction. In many applications, we are unable ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 780, 808, 850, 915, 980, 1030, 1064 nm
Max Power: 50 W
Min Isolation: 55 dB
Min. Extinction Ratio At 23℃ (dB): 20
...
Data Sheet
High Power Fiber Optical Isolator (50W)
Lfiber Optic Limited
Add to watch list
High Power Fiber Optical Isolator (50W)
Compare
The High Power Fiber Optical Isolator (polarization-independent fiber optic isolators, 1064/1053/1030/980 nm) is a fiber-coupled component that allows all polarized light signal (not just the light polarized in a specific direction) to propagate along a fiber in one direction but not in the opposite direction. Functionally, it is ...

Specifications
Type Of The Device: Isolator
Operating Wavelength: 980, 1030, 1053, or 1064 nm
Max Power: 50 W
Min Isolation: 25 dB
Center Wavelength (nm): 980, 1030, 1053, or 1064
...
Data Sheet
