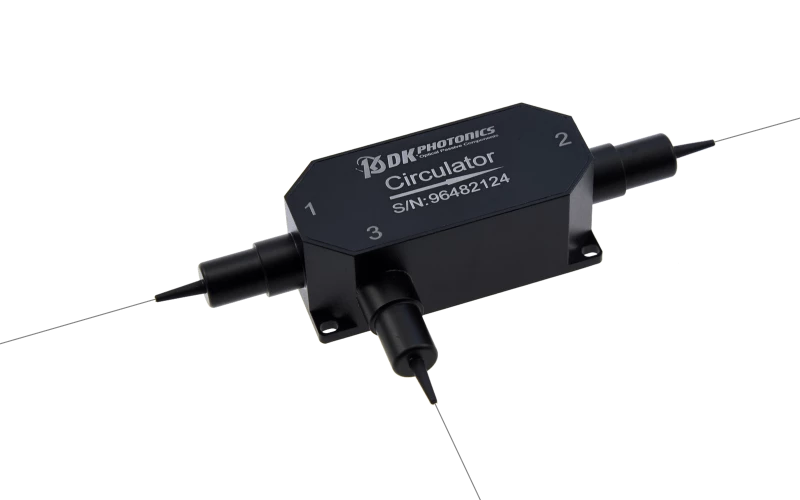

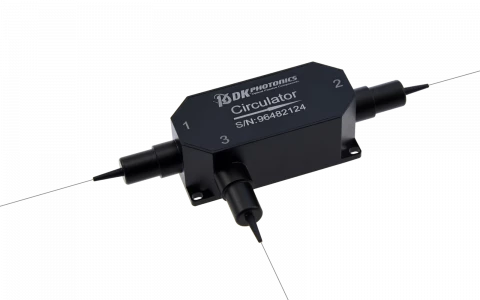

Thumbnail of 1064nm TGG Based Optical Circulator photo 1

Description

1064nm TGG Based Optical Circulator – DK-XS-DT-006-A/2

The 1064nm TGG Based Optical Circulator from DK Photonics is a precision-engineered device designed to efficiently route optical signals in advanced photonic systems. Utilizing Terbium Gallium Garnet (TGG) as the core material, this circulator ensures minimal insertion loss and high isolation, making it an ideal solution for demanding applications in fiber laser systems, optical amplifiers, and sophisticated instrumentation setups.

This circulator is specifically tailored for use at the 1064nm wavelength, a common requirement in high-power fiber laser and amplifier environments. Its robust construction supports both polarization-maintaining (PM) and non-PM configurations, offering flexibility for integration into a wide range of optical networks. The device is engineered for high reliability and excellent temperature stability, ensuring consistent performance even in challenging operational conditions.

The DK-XS-DT-006-A/2 circulator is designed to direct light from Port 1 to Port 2, and from Port 2 to Port 3, effectively isolating the optical paths and preventing unwanted back-reflection or signal degradation. This makes it particularly valuable in applications such as pump laser source management, fiber optic sensing, and test and measurement systems, where signal integrity and system protection are paramount.

With customizable fiber options and the ability to handle high optical power, this circulator stands out for its adaptability to specific project requirements. Whether used in standard configurations or tailored to unique specifications, the DK Photonics 1064nm TGG Based Optical Circulator delivers reliable, high-performance operation for cutting-edge photonic applications.

1064nm TGG Based Optical Circulator

Visit the DK Photonics Store

Specifications

Type Of The Device: Circulator
Operating Wavelength: 1064 nm
Max Power: 20 W
Min Isolation: 25 dB
Wavelength: 1064 nm
Type: TGG Based Optical Circulator
Number Of Ports: 3
Polarization: Polarization Insensitive
Power Handling: 2 W
Fiber Type: 1060-XP
Fiber Length: 1.0 m
Connector: Without connectors (bare fiber)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: 1064nm TGG-Based Optical Circulator
  • Low Insertion Loss: Minimizes signal attenuation for optimal performance
  • High Isolation: Superior channel separation to prevent signal cross-talk
  • High Return Loss: Ensures minimal back reflection for stable operation
  • Low Polarization Dependent Loss (PDL): Maintains signal integrity across polarization states
  • High Power Handling: Supports up to 2W optical power (higher power available with direct splicing)
  • Excellent Temperature Stability: Reliable performance across a wide temperature range
  • PM and Non-PM Versions Available: Choose between polarization-maintaining and standard options
  • Customizable Fiber Options: Fiber type, pigtail length, and connectors can be tailored to your requirements
  • High Reliability and Environmental Stability: Engineered for demanding industrial and laboratory environments
  • Compact Package Design: Space-saving form factor for easy integration
  • RoHS Compliant: Environmentally friendly and safe for global markets

Applications

  • Fiber Laser Systems
    - Enables unidirectional signal routing in high-power fiber laser setups, improving system efficiency and protecting sensitive components.
  • Optical Amplifiers (EDFA, YDFA)
    - Facilitates signal direction control and isolation in fiber optic amplifiers, ensuring stable amplification and minimizing feedback.
  • Pump Laser Source Protection
    - Prevents back-reflected light from damaging pump laser sources, enhancing the reliability and lifespan of laser diodes.
  • Fiber Optic Sensing Systems
    - Used in distributed and point fiber optic sensors (such as FBG and interferometric sensors) to separate transmitted and reflected signals for accurate measurement.
  • Test and Measurement Equipment
    - Essential in optical testing setups for routing signals between instruments, reducing noise and improving measurement accuracy.
  • Optical Instrumentation
    - Integrated into scientific and industrial instruments requiring precise light routing and high isolation between channels.
  • Optical Communication Networks
    - Supports bi-directional data transmission and channel separation in advanced fiber optic communication systems.
  • Quantum Optics and Photonics Research
    - Enables controlled photon routing and isolation in quantum communication and photonics experiments.
  • Wavelength Division Multiplexing (WDM) Systems
    - Assists in channel separation and signal direction management in WDM networks for increased bandwidth and reduced crosstalk.
  • Optical Coherence Tomography (OCT)
    - Used in medical imaging systems to direct reference and sample beams, improving image quality and system stability.
  • High-Power Laser Applications
    - Suitable for high-power handling scenarios, such as material processing, micromachining, and laser surgery, where robust isolation is critical.
  • Reflectometry and Fault Detection
    - Applied in optical time-domain reflectometry (OTDR) for precise fault location and network diagnostics.

Frequently Asked Questions

What is a 1064nm TGG Based Optical Circulator?
A 1064nm TGG Based Optical Circulator is a high-performance fiber optic device that directs light signals from one port to another in a specific sequence (Port 1 to Port 2, and Port 2 to Port 3). It uses Terbium Gallium Garnet (TGG) as the core material, offering low insertion loss, high isolation, and excellent temperature stability, making it ideal for fiber laser, amplifier, and instrumentation applications.
What are the main applications of the DK Photonics 1064nm Optical Circulator?
The DK Photonics 1064nm Optical Circulator is commonly used in fiber optic amplifiers, pump laser sources, fiber optic sensors, test and measurement setups, and various instrumentation systems. Its high reliability and performance make it suitable for demanding environments in research, industrial, and telecom sectors.
What are the key features of the DK Photonics 1064nm TGG Based Optical Circulator?
Key features include low insertion loss, high isolation, availability in both polarization-maintaining (PM) and non-PM versions, customizable fiber types, high reliability, and excellent temperature stability. The circulator also supports high power handling and low polarization dependent loss (PDL).
Can the DK Photonics 1064nm Optical Circulator be customized?
Yes, DK Photonics offers customization for their 1064nm Optical Circulator. Customers can request specific fiber types, different wavelengths, power handling capabilities, connector types, and fiber pigtail lengths. For custom requirements, it is recommended to provide detailed specifications when inquiring.
How does the DK Photonics 1064nm Optical Circulator handle high power applications?
For high power applications, DK Photonics recommends using direct fiber splicing instead of connectors, as connectors are only suitable for low power performance testing (up to 2W). Direct splicing ensures better power handling and reliability in high power setups.
What is the difference between PM and non-PM versions of the circulator?
PM (Polarization Maintaining) versions preserve the polarization state of the light passing through, which is crucial for certain applications like coherent communications and high-precision measurements. Non-PM versions do not maintain polarization but are suitable for general-purpose use where polarization is not critical.
How do I order or request a quote for a custom DK Photonics 1064nm Optical Circulator?
To order or request a quote, provide the correct part number (P/N) according to DK Photonics' ordering information, along with a detailed description of your requirements. If you need custom specifications, such as different fiber types, wavelengths, or power handling, include those details in your inquiry. Contact DK Photonics via their website or email sales@dkphotonics.com for assistance.

Got more questions? Use the inquiry form to ask the supplier directly.
