Description
The Polarization Maintaining Isolator (PMI Series) stands as a pinnacle of optical engineering, meticulously crafted to deliver unparalleled performance and reliability in demanding optical systems.
With its cutting-edge design, this isolator boasts low insertion loss, high isolation, high return loss, and a high extinction ratio, ensuring pristine signal integrity and stability even in the most challenging environments. It serves as the ideal solution for polarization maintaining fiber amplifiers, fiber lasers, high-speed communication systems, and instrumentation applications.
Offering both single and dual-stage configurations, it supports crucial wavelengths of 1310 nm, 1480 nm, and 1550 nm, providing adaptable solutions to meet a myriad of optical requirements.

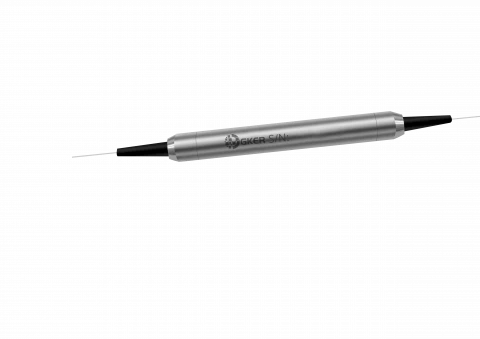

1310/1480/1550nm Polarization Maintaining Isolator (PMI Series)
Specifications
| Type Of The Device: | Isolator |
|---|---|
| Operating Wavelength: | 1310 nm |
| Max Power: | 0.3 W |
| Min Isolation: | 28 dB |
| Center Wavelength (λc): | 1310, 1480, 1550 nm |
| Max. Optical Power (Continuous Wave): | 300 mW |
Download Data Sheet
Features
- Low Insertion Loss: Minimizes signal attenuation to enhance overall system performance
- High Isolation: Prevents back reflection and back scattering for clear and stable signal transmission
- High Return Loss: Ensures minimal signal loss, improving system efficiency and performance
- High Extinction Ratio: Provides excellent polarization maintaining performance, crucial for precision optical applications
- Environmental Stability: Designed to perform reliably under diverse environmental conditions
- High Optical Power Handling: Capable of handling up to 300 mW of continuous optical power
- Compact Design: Easy integration into space-constrained optical systems
Applications
- Polarization Maintaining Fiber Amplifiers: Enhances performance and reliability by providing efficient isolation and maintaining polarization
- Fiber Lasers: Ensures stable and high-quality laser output by minimizing back reflections and maintaining polarization integrity
- High-Speed Communication Systems: Essential for systems requiring precise signal isolation and polarization maintenance
- Instrumentation: Suitable for various optical instrumentation applications where signal stability and precision are paramount
- Optical Network Testing: Provides reliable performance for testing and monitoring optical networks, ensuring accurate measurements
- Research and Development: Ideal for experimental setups needing high-performance and reliable optical isolation
Frequently Asked Questions
What is a Polarization Maintaining Isolator (PMI)?
A Polarization Maintaining Isolator (PMI) is an optical device used to control the transmission of light in optical systems. It allows light to pass through in one direction while blocking it in the opposite direction.
What are the key features of the PMI Series?
The PMI Series features low insertion loss, high isolation, high return loss, and a high extinction ratio. It offers excellent environmental stability and reliability.
What applications is the PMI Series suitable for?
The PMI Series is ideal for use in polarization maintaining fiber amplifiers, fiber lasers, high-speed communication systems, and various instrumentation applications.
What are the available configurations of the PMI Series?
The PMI Series is available in both single-stage and dual-stage configurations to accommodate different system requirements.
Can the PMI Series handle high optical power?
Yes, the PMI Series can handle up to 300 mW of continuous optical power, making it suitable for high-power optical applications.
What is the operating temperature range of the PMI Series?
The PMI Series operates efficiently in temperatures ranging from -5°C to +70°C, ensuring versatility in various environmental conditions.
How do I order a PMI from the PMI Series?
To order a PMI from the PMI Series, use the provided ordering information format, specifying the stage, wavelength, grade, connector type, fiber jacket, fiber length, and working axis.
Can the PMI Series be customized to specific requirements?
Yes, the PMI Series offers customization options for connector type, fiber jacket, fiber length, and working axis to meet specific application needs.
What is the warranty period for the PMI Series?
The warranty period for the PMI Series may vary, and it is recommended to consult with the manufacturer or supplier for detailed warranty information.
How can I obtain technical support for the PMI Series?
For technical support or further inquiries regarding the PMI Series, you can contact the manufacturer or supplier directly via their provided contact information.
