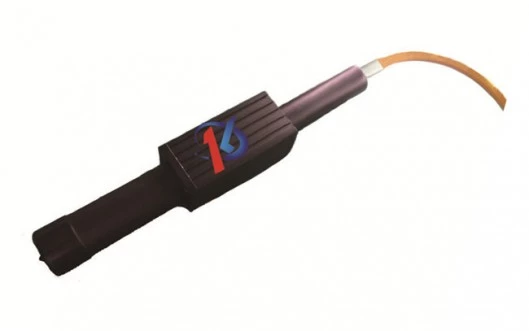

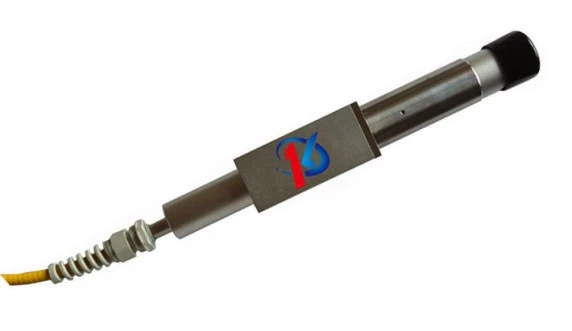

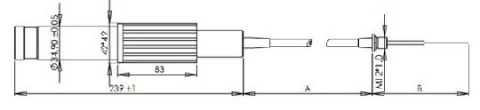

1064nm High Power Collimated Free-Space Beam Output Isolator

The 1064nm High Power Collimated Free-space Beam Output Isolator from DK Photonics Technology Limited is a precision optical device engineered for demanding high-power laser applications. This isolator is designed to efficiently manage and protect laser sources by allowing light to pass in one direction while blocking any back-reflected light, ensuring stable and reliable laser operation. Its unique configuration features a fiber pigtail input and a collimated free-space beam output, making it ideal for integration into advanced photonics systems where high beam quality and power handling are essential.

This isolator stands out in the market for its exceptional power handling capabilities, supporting continuous wave (CW) or pulsed operations with customizable power ratings up to 50W. The device accommodates a wide range of output beam diameters, from 0.5mm to 10mm, catering to various system requirements. Both polarization-maintaining (PM) and non-PM fiber types are available, with further customization options for fiber core size, cladding, and numerical aperture, ensuring compatibility with diverse fiber laser and amplifier setups.

Designed for versatility and reliability, the 1064nm High Power Collimated Free-space Beam Output Isolator offers low insertion loss, high isolation, and excellent temperature stability, making it suitable for use in fiber lasers, amplifiers, instrumentation, and laboratory research environments. The robust construction includes armored fiber jackets for enhanced durability and tensile strength, supporting operation in challenging industrial and research settings. With its high optical performance and customizable configurations, this isolator is a preferred solution for professionals seeking to maximize laser system efficiency and longevity.

1064nm High Power Collimated Free-Space Beam Output Isolator

Visit the DK Photonics Store

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 50 W
Min Isolation: 30 dB
Max. Peak Power: 50 kW
Nominal Output Beam Diameter: 8±1 mm
Typ. Peak Isolation: 35 dB
Operating Wavelength Range: ±10 nm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Power Handling: Supports continuous wave (CW) and pulsed operation with customizable power levels up to 50W (CW) and 50kW (peak).
  • Collimated Free-Space Beam Output: Delivers a high-quality, collimated free-space beam with standard output beam diameters from 0.5mm to 10mm (nominal 8±1mm).
  • Low Insertion Loss: Ensures minimal signal loss for maximum efficiency in high-power laser systems.
  • High Isolation: Typical peak isolation up to 35dB, with minimum in-band isolation up to 30dB at 25°C, protecting your laser source from back reflections.
  • Excellent Temperature Stability: Reliable performance across a wide operating temperature range (0°C to +50°C) and storage range (-20°C to +75°C).
  • Customizable Fiber Options: Available with both single-cladding (SCF) and double-cladding (DCF) fibers, supporting SM, PM, and custom fiber types (core sizes ≥10μm, NA options).
  • Polarization Options: Choose between polarization-maintaining (PM) and non-PM types, with extinction ratios up to 20dB for PM fibers.
  • High Return Loss: Minimum return loss up to 50dB, reducing unwanted reflections.
  • Low Polarization Dependent Loss (PDL): Maximum PDL of 0.15dB for SM fibers, ensuring signal integrity.
  • High Beam Quality: M² degradation ≤10%, beam roundness ≥90% for superior beam profile.
  • Rugged Construction: Armored cable options (2.0m or 3.0m) for enhanced durability and protection in demanding environments.
  • Flexible Customization: Tailor wavelength (980nm, 1030nm, 1064nm, 1080nm, or custom), fiber length, jacket type, and more to your application needs.
  • Wide Application Compatibility: Ideal for fiber lasers, fiber amplifiers, instrumentation, test and measurement, and laboratory research.
  • High Reliability & Cost-Effective: Designed for long-term, stable operation with low cost of ownership.
  • Comprehensive Support: Custom solutions available for non-standard requirements—contact DK Photonics for tailored specifications.

Applications

  • Fiber Laser Systems: Essential for protecting high-power fiber lasers from back reflections, ensuring stable operation and preventing damage to sensitive laser components.
  • Fiber Amplifiers: Used in high-power fiber amplifier setups to isolate the amplifier from unwanted feedback, enhancing performance and reliability.
  • Laser Material Processing: Ideal for applications such as cutting, welding, engraving, and marking, where high-power laser beams are used and optical isolation is critical for system safety and efficiency.
  • Scientific Research and Laboratory Experiments: Suitable for advanced research in nonlinear optics, quantum optics, and ultrafast laser experiments requiring high isolation and precise beam quality.
  • Test and Measurement Equipment: Integrated into optical test benches and measurement systems to prevent back reflections that can interfere with sensitive instrumentation.
  • Medical and Biomedical Laser Systems: Used in medical laser devices for surgery, imaging, and therapy, where high-power laser isolation is necessary to protect both equipment and patients.
  • Optical Communication Systems: Applied in high-power optical transmitters and receivers to minimize signal degradation caused by reflected light.
  • Industrial Laser Systems: Deployed in manufacturing and automation environments for robust, reliable isolation in high-power laser applications.
  • Laser Pumping Systems: Used to isolate pump lasers in solid-state and fiber laser architectures, improving efficiency and protecting pump sources.
  • Remote Sensing and LIDAR: Ensures stable operation of high-power laser sources in remote sensing, LIDAR, and atmospheric monitoring systems.
  • Defense and Aerospace Applications: Integrated into military and aerospace laser systems for secure, high-reliability operation under demanding conditions.
  • OEM Laser Module Integration: Ideal for integration into custom laser modules and OEM systems requiring high-power handling and customizable fiber or beam output options.

Frequently Asked Questions

What is a 1064nm High Power Collimated Free-space Beam Output Isolator?
A 1064nm High Power Collimated Free-space Beam Output Isolator is an optical device designed to allow light to pass in one direction while blocking it in the reverse direction. It features a fiber pigtail input and a collimated free-space beam output, making it ideal for high-power fiber lasers and amplifiers operating at 1064nm. This isolator helps protect sensitive laser components from back reflections and feedback, ensuring stable and reliable operation.
What are the key features of DK Photonics' 1064nm High Power Free-space Isolator?
Key features include low insertion loss, high power handling (up to 50W CW or kW-level peak), high isolation (up to 35dB), excellent temperature stability, high reliability, and customizable fiber types and output beam diameters (0.5mm to 10mm). Both polarization-maintaining (PM) and non-PM versions are available, with options for single or double cladding fibers.
What applications are suitable for this high power free-space isolator?
This isolator is ideal for use in fiber lasers, fiber amplifiers, instrumentation, test and measurement setups, and laboratory research involving fiber amplifiers. Its high power handling and reliable isolation make it suitable for both industrial and research environments where back-reflection protection is critical.
How do I select the right configuration for my application?
To select the right configuration, specify the central wavelength (980nm, 1030nm, 1064nm, 1080nm, or custom), required optical power (CW or pulsed, up to 50W), fiber type (core/clad/NA), fiber jacket and length, and output beam diameter. DK Photonics offers customization for fiber pigtails, power handling, and other specifications to meet your unique requirements.
What is the difference between PM and non-PM types, and which should I choose?
PM (Polarization Maintaining) isolators preserve the polarization state of the input light, which is essential for applications requiring stable polarization, such as certain laser systems. Non-PM isolators do not maintain polarization and are suitable for general applications. Choose PM if your system is polarization-sensitive; otherwise, non-PM may suffice.
What are the typical isolation and insertion loss values for this isolator?
Typical peak isolation values range from 30dB to 35dB, with a minimum in-band isolation of 25dB to 30dB at 25°C. The minimum transmission is 90%, and the return loss is at least 45dB. Insertion loss is kept low to ensure high efficiency in your optical system.

Got more questions? Use the inquiry form to ask the supplier directly.
