Description
The 532nm Polarization Insensitive Isolator, part of our advanced PSSI Series, represents the pinnacle of optical isolation technology. Crafted with precision engineering and cutting-edge materials, this isolator offers unparalleled performance in a compact package. Designed to operate at the demanding 532nm wavelength, it boasts exceptional features such as low insertion loss, high isolation, and robust environmental stability.
Whether integrated into fiber laser systems, optical instrumentation, or telecommunications networks, the PSSI isolator ensures reliable signal transmission and superior optical performance in diverse applications.

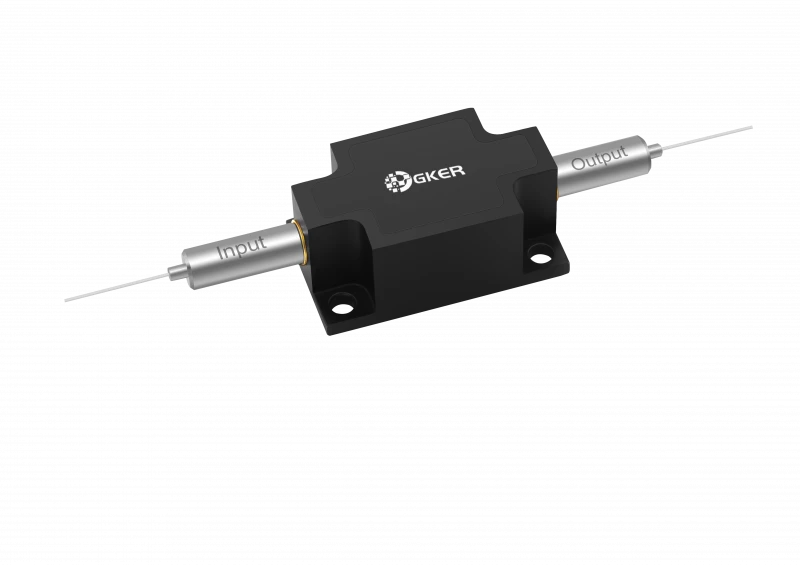

532nm Polarization Insensitive Isolator (PSSI Series)
Specifications
| Type Of The Device: | Isolator |
|---|---|
| Operating Wavelength: | 532 nm |
| Max Power: | 0.1 W |
| Min Isolation: | 25 dB |
| Operating Wavelength (λc): | 532 nm |
| Min. Isolation, λc, 23℃, All Polarization States: | 25 dB |
| Max. Average Optical Power: | 100 mW |
Download Data Sheet
Features
- Optimized Performance: Engineered for precise optical isolation, offering superior signal integrity and minimal signal attenuation
- High Isolation: Provides high levels of isolation, effectively blocking unwanted signals and reducing crosstalk
- Low Insertion Loss: Ensures minimal signal loss during transmission, preserving signal strength and quality
- Polarization Insensitive: Designed to operate consistently regardless of polarization, ensuring reliable performance in various setups
- Robust Construction: Built with high-quality materials for long-term reliability and durability in demanding environments
- Broad Compatibility: Compatible with Nufern 460-HP Fiber, ensuring seamless integration into existing optical systems
Applications
- Fiber Laser Systems: Ideal for use in high-power fiber laser systems, ensuring optimal signal transmission and performance
- Optical Instrumentation: Suitable for optical instrumentation setups, offering precise signal isolation and excellent signal integrity
- Telecommunication Networks: Enables efficient signal transmission and isolation in telecommunication networks, ensuring reliable data transfer
- Research Laboratories: Essential for research applications requiring precise optical isolation and signal control
- Fiber Optic Communication Systems: Provides reliable signal transmission and isolation in fiber optic communication systems, enhancing overall system performance
Frequently Asked Questions
What is the operating wavelength of the 532nm Polarization Insensitive Isolator?
The operating wavelength is 532 nm, making it suitable for applications requiring precise isolation at this specific wavelength.
What is the typical peak isolation provided by the isolator?
The isolator offers a typical peak isolation of 30 dB, ensuring effective blocking of unwanted signals and reducing crosstalk.
Can the isolator handle high optical power?
Yes, the isolator has a maximum average optical power handling capacity of 100 mW, making it suitable for high-power applications.
Is the isolator polarization insensitive?
Yes, the isolator is polarization insensitive, meaning it operates consistently regardless of the polarization state of the input signal.
What fiber types are compatible with this isolator?
The isolator is compatible with Nufern 460-HP Fiber, ensuring seamless integration into various optical systems.
What is the operating temperature range of the isolator?
The isolator can operate within a temperature range of +10 to +50 ℃, providing reliable performance in diverse environmental conditions.
What are the typical insertion loss and return loss values of the isolator?
The typical insertion loss at 23℃ is 1.8 dB, while the minimum return loss (input/output) is 50/50 dB, ensuring minimal signal loss and high signal integrity.
What connector types are available for the isolator?
The isolator is available with various connector types, including FC/UPC, FC/APC, SC/APC, SC/UPC, or with no connector (N), allowing flexibility in system integration.
What applications is the isolator suitable for?
The isolator is ideal for fiber laser systems, optical instrumentation setups, telecommunication networks, research laboratories, and fiber optic communication systems, among others. It provides reliable signal transmission and isolation in these applications, enhancing overall system performance.
Got more questions? Use the RFQ form to ask the supplier directly.
