Description

The DK Photonics 1064nm Polarization Insensitive Isolator is a high-performance optical component engineered to ensure unidirectional light transmission in fiber optic systems. Utilizing the Faraday Effect in magneto-optical crystals, this isolator effectively suppresses back reflections and backscattering, regardless of the polarization state of the incoming light. Its advanced, epoxy-free optical path design not only enhances high-power handling capabilities but also contributes to the device’s long-term reliability and environmental stability.

This isolator stands out in the market for its low insertion loss and high isolation, making it an ideal choice for demanding applications such as Erbium-Doped Fiber Amplifiers (EDFAs), Raman amplifiers, DWDM systems, fiber lasers, and optical transmitters. The device’s low polarization dependent loss (PDL) and polarization mode dispersion (PMD) further ensure signal integrity, which is critical in high-speed and high-power optical networks. Its robust construction and excellent temperature stability allow it to perform reliably in a wide range of operating environments.

Widely adopted in both research and industrial settings, the DK Photonics 1064nm Polarization Insensitive Isolator is a trusted solution for maintaining signal quality and protecting sensitive components from detrimental optical feedback. The isolator’s design flexibility allows for customization to meet specific wavelength, power handling, and fiber pigtail requirements, making it suitable for both standard and specialized fiber optic setups. Whether integrated into amplifiers, lasers, or complex communication systems, this isolator delivers consistent performance and durability, supporting the evolving needs of modern photonics applications.

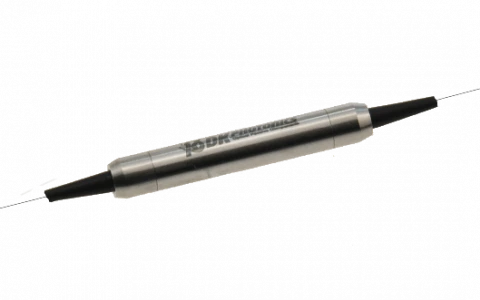

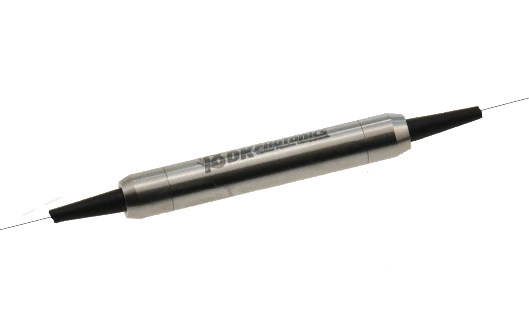

1064nm Polarization Insensitive Fiber Optic Isolator Low Insertion Loss

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 0.2 W
Min Isolation: 32 dB
Polarization Sensitivity: Polarization Insensitive
Power Handling: 200 mW
Pigtail Length: 1.0 m
Key Features: Low Insertion Loss; High Isolation; Low PDL; High Stability and Reliability; Cost Effective
Applications: WDM systems; Optical fiber amplifier; Pump laser source; Fiber optic sensor; Test and measurement; Instrumentation

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: Optimized for 1064nm applications, ensuring compatibility with common fiber laser and amplifier systems.
  • Polarization Insensitive: Maintains high performance regardless of input polarization state, ideal for diverse optical setups.
  • Low Insertion Loss: Minimizes signal attenuation, preserving optical power and system efficiency.
  • High Isolation: Effectively suppresses back reflections and back scattering, protecting sensitive components and improving system stability.
  • Optical Path Epoxy-Free Design: Enhances high-power handling capability and long-term reliability by eliminating epoxy in the optical path.
  • Low Polarization Dependent Loss (PDL) & Low Polarization Mode Dispersion (PMD): Ensures signal integrity and consistent performance in demanding applications.
  • Excellent Temperature Stability: Delivers reliable operation across a wide temperature range, suitable for various environments.
  • High Reliability: Robust construction and stringent quality control for dependable, long-term operation.
  • High Return Loss: Reduces unwanted reflections, further protecting upstream components.
  • Compact Package: Space-saving design for easy integration into optical systems.
  • Customizable Options: Available with various fiber pigtails, connector types, and power handling capabilities to meet specific requirements.
  • RoHS Compliant: Environmentally friendly and compliant with international standards.

Applications

  • Erbium-Doped Fiber Amplifiers (EDFAs): Essential for preventing back reflections and maintaining signal integrity in high-performance optical amplifiers.
  • Raman Fiber Amplifiers: Used to suppress backscattering and enhance the stability and efficiency of Raman amplification systems.
  • DWDM (Dense Wavelength Division Multiplexing) Systems: Ensures unidirectional light propagation, minimizing crosstalk and signal degradation in multi-channel optical networks.
  • Fiber Lasers: Protects laser sources from destabilizing back reflections, improving output stability and laser lifetime.
  • Optical Transmitters: Prevents feedback into laser diodes, reducing noise and enhancing transmitter performance in fiber optic communication links.
  • Optical Sensing Systems: Used in distributed and point fiber optic sensors to eliminate interference from reflected signals.
  • Test and Measurement Equipment: Maintains measurement accuracy by isolating sensitive optical instruments from unwanted reflections.
  • Optical Circulators and Rotators: Integrated into advanced photonic devices for routing and managing light paths in complex optical circuits.
  • Quantum Communication Systems: Ensures the integrity of quantum signals by preventing back-propagation and noise in quantum key distribution setups.
  • Medical Laser Systems: Protects delicate laser sources in medical diagnostic and therapeutic equipment from damaging back reflections.
  • Research and Development: Widely used in laboratories for experimental setups requiring high isolation and low insertion loss at 1064nm.
  • Industrial Material Processing: Enhances the reliability and performance of fiber laser systems used in cutting, welding, and marking applications.
  • Optical Communication Networks: Maintains signal quality and network reliability by suppressing unwanted back reflections in long-haul and metro fiber links.

Frequently Asked Questions

What is a 1064nm Polarization Insensitive Isolator and how does it work?
A 1064nm Polarization Insensitive Isolator is an optical device designed to allow light to pass in one direction while blocking it in the reverse direction, regardless of the light's polarization state. It utilizes the Faraday Effect in a magneto-optical crystal to achieve this non-reciprocal behavior, effectively eliminating back reflection and back scattering in fiber optic systems.
What are the main applications of the DK Photonics 1064nm Polarization Insensitive Isolator?
This isolator is widely used in fiber optic communication systems such as EDFAs (Erbium-Doped Fiber Amplifiers), Raman amplifiers, DWDM systems, fiber lasers, and transmitters. Its primary function is to suppress back reflection and back scattering, thereby improving system performance and protecting sensitive components.
What are the key features and benefits of the DK Photonics 1064nm Polarization Insensitive Isolator?
Key features include low insertion loss, high isolation, optical path epoxy-free design, low polarization dependent loss (PDL) and polarization mode dispersion (PMD), high reliability, and excellent temperature stability. These features ensure high performance, durability, and suitability for demanding optical applications.
What is the maximum optical power handling capability of the 1064nm Polarization Insensitive Isolator?
For the standard 1064nm isolator, the recommended average power handling is less than 200mW for single-stage devices and less than 100mW for dual-stage devices. For higher power requirements, DK Photonics offers a 1064nm TGG High Power Isolator. For pulse applications, it is important to inform the manufacturer of the pulse energy and peak power.
How does the presence of connectors affect the performance of the isolator?
When connectors are added to the isolator, the insertion loss (IL) increases by 0.3dB and the return loss (RL) decreases by 5dB compared to devices without connectors. For optimal performance, it is recommended to specify your connector requirements when ordering.
Can the DK Photonics 1064nm Polarization Insensitive Isolator be customized for specific requirements?
Yes, DK Photonics offers custom isolators tailored to specific needs, including custom fiber pigtails, different operating wavelengths, and higher power handling capabilities. Customers are encouraged to provide detailed specifications or contact DK Photonics for custom solutions.
What should I consider when ordering or specifying a 1064nm Polarization Insensitive Isolator?
When ordering, provide the correct part number (P/N) and detailed description, including connector type, fiber type, and any special requirements. If you require connectors, avoid choosing a 250μm bare fiber pigtail. For pulse applications, specify the pulse energy and peak power to ensure the isolator meets your needs.

Got more questions? Use the inquiry form to ask the supplier directly.
