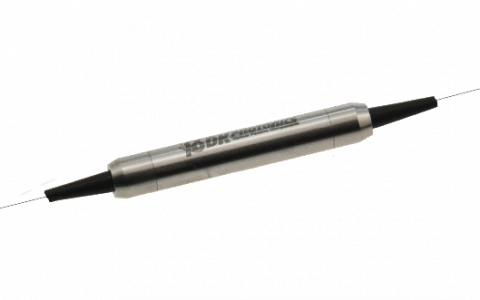

1550nm Polarization Maintaining Isolator – DK-XS-DT-006-A/2

The 1550nm Polarization Maintaining Isolator from DK Photonics is a high-performance, micro-optic device designed to ensure the integrity of polarized light in advanced fiber optic systems. Engineered with precision using PM panda fiber, this isolator is tailored for applications that demand exceptional polarization control, such as fiber lasers, amplifiers, and high-speed communication networks. Its robust construction and advanced optical design deliver low insertion loss, high isolation, and a superior extinction ratio, making it a reliable choice for both laboratory and industrial environments.

This isolator is specifically crafted to guide optical signals in a single direction, effectively eliminating detrimental back reflections and back scattering that can compromise system performance. The result is enhanced signal stability and protection for sensitive optical components downstream. The device is available with either bare fiber or 900μm jacketed cable, offering flexibility for integration into a wide range of setups. Its compact footprint and rugged build ensure long-term reliability, even in demanding operational conditions.

Widely adopted in fiber amplifier systems, fiber optic sensing, and laser applications, the 1550nm Polarization Maintaining Isolator is an essential component for maintaining signal fidelity and maximizing system efficiency. DK Photonics also offers customization options to meet specific requirements, including different fiber pigtails, connector types, wavelengths, and power handling capabilities. This adaptability, combined with short lead times, ensures that the isolator can be tailored to fit unique project needs, supporting both standard and specialized optical infrastructures.

1550nm Polarization Maintaining Isolator Single Stage

Visit the DK Photonics Store

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1550 nm
Max Power: 20 W
Min Isolation: 28 dB
Wavelength: 1550 nm
Type: Polarization Maintaining Isolator
Fiber Type: PM Panda Fiber
Maximum Handling Power (connectorized): < 2 W
Fiber Jacket Options: Bare fiber or 900 μm jacket cable
Example Handling Power: 300 mW
Fiber Length (example): 1.0 m
Fiber Outer Diameter (example): 0.9 mm loose tube
Connector Type (example): FC/APC

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low Insertion Loss: Minimizes signal attenuation for optimal performance in fiber optic systems.
  • High Isolation: Effectively blocks back-reflected and back-scattered light, ensuring unidirectional signal flow.
  • High Extinction Ratio: Maintains strong polarization purity, ideal for polarization-sensitive applications.
  • Excellent Stability and Reliability: Engineered for long-term operation with consistent optical performance.
  • Compact Micro-Optic Design: Space-saving form factor suitable for integration into dense optical setups.
  • PM Panda Fiber Construction: Utilizes high-quality polarization maintaining panda fiber for superior polarization control.
  • Customizable Fiber Pigtails and Connectors: Available with bare fiber or 900μm jacket cable; supports various connector types (e.g., FC/APC, FC/PC).
  • Wide Wavelength Range: Standard at 1550nm; custom wavelengths (e.g., 1480nm) available upon request.
  • High Power Handling: Supports up to 300mW (standard), with options for higher power upon request.
  • Both Axis Working Option: Configurable for fast or slow axis operation to suit specific system requirements.
  • Short Lead Times for Custom Orders: Fast response to custom specifications and special requirements.
  • RoHS Compliant: Manufactured in accordance with environmental and safety standards.

Applications

  • Fiber Laser Systems
    Ensures stable, unidirectional light propagation in fiber lasers, preventing back reflections that can destabilize or damage the laser source.
  • Fiber Amplifiers
    Enhances performance and reliability by eliminating unwanted feedback and backscattering in optical amplifier setups, such as Erbium-Doped Fiber Amplifiers (EDFAs).
  • Optical Communication Networks
    Maintains signal integrity and polarization in high-speed, long-haul, and metro optical communication systems, supporting advanced modulation formats.
  • Fiber Optic Sensing Systems
    Improves accuracy and sensitivity in distributed and point fiber optic sensors, including interferometric and polarization-based sensors.
  • Quantum Optics & Quantum Communication
    Preserves polarization states and prevents noise from back-reflected photons in quantum key distribution (QKD) and other quantum photonic applications.
  • Coherent Optical Systems
    Essential for coherent detection and transmission systems, where polarization maintenance is critical for signal demodulation and processing.
  • Test and Measurement Equipment
    Used in polarization-sensitive test setups to ensure accurate measurement by blocking unwanted back reflections.
  • Optical Instrumentation
    Integrated into scientific and industrial optical instruments requiring high polarization extinction and low insertion loss.
  • Biomedical Imaging
    Supports advanced imaging techniques such as Optical Coherence Tomography (OCT) by maintaining polarization and minimizing noise.
  • Research and Development
    Ideal for laboratory setups in photonics research, enabling precise control of light polarization and directionality.

Frequently Asked Questions

What is a 1550nm Polarization Maintaining Isolator and what is it used for?
A 1550nm Polarization Maintaining (PM) Isolator is a micro-optic device designed to allow light to pass in one direction while blocking it in the reverse direction, specifically for light at the 1550nm wavelength. It is built with PM panda fiber to maintain the polarization state of the transmitted light. This isolator is commonly used in fiber lasers, fiber amplifiers, fiber optic communication systems, and fiber sensors to prevent back reflection and back scattering, which can degrade system performance.
What are the key features of the DK Photonics 1550nm PM Isolator?
The DK Photonics 1550nm PM Isolator features low insertion loss, high isolation, high extinction ratio, and excellent stability and reliability. It is available with either bare fiber or 900um jacket cable and can be customized for different wavelengths, fiber pigtails, and power handling requirements.
How does a polarization maintaining isolator work?
A polarization maintaining isolator works by allowing light to travel in one direction while blocking light traveling in the opposite direction. It uses PM panda fiber to preserve the polarization state of the light, ensuring minimal signal degradation. This is essential in applications where maintaining the polarization is critical, such as in fiber lasers and amplifiers.
What are the typical applications for a 1550nm PM isolator?
Typical applications for a 1550nm PM isolator include fiber laser systems, fiber amplifiers, fiber optic communication networks, and fiber optic sensors. It is used wherever it is necessary to prevent back reflections and maintain the polarization state of the optical signal.
Can the DK Photonics PM isolator be customized for specific requirements?
Yes, DK Photonics offers customization for their PM isolators, including different wavelengths, fiber pigtails, connector types, and power handling capabilities. Customers are encouraged to provide their specific requirements for a tailored solution with short lead times.
What should I consider when ordering a PM isolator with connectors?
When ordering a PM isolator with connectors, note that the insertion loss will be 0.3dB higher, return loss will be 5dB lower, and extinction ratio will be 2dB lower compared to a device without connectors. The default connector key is aligned to the slow axis, and power transmission through the connector should be less than 2W. For pulse applications, inform DK Photonics of the pulse energy and peak power.

Got more questions? Use the inquiry form to ask the supplier directly.
