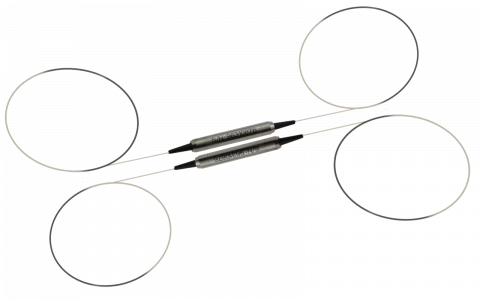

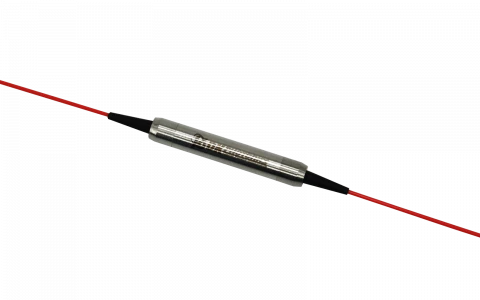

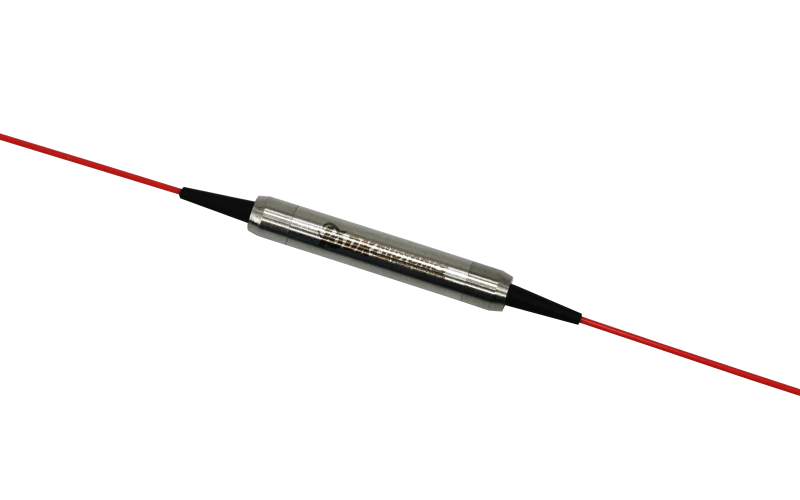

1550nm Polarization Maintaining Isolator – DK-XS-DT-006-A/2

The 1550nm Polarization Maintaining Isolator from DK Photonics is a high-performance micro-optic device designed to ensure the integrity and stability of polarized light transmission in advanced fiber optic systems. Engineered with precision using PM panda fiber, this isolator is optimized for applications where maintaining the polarization state is critical, such as in fiber lasers, amplifiers, sensors, and high-speed communication networks.

This isolator is specifically constructed to allow light to pass in one direction while effectively blocking any back-reflected or back-scattered light in the reverse direction. This function is essential for protecting sensitive optical components and maintaining signal quality in complex photonic setups. The device boasts low insertion loss, high isolation, and a high extinction ratio, ensuring minimal signal degradation and superior performance even in demanding environments.

The robust design of the DK-XS-DT-006-A/2 ensures excellent reliability and long-term stability, making it suitable for both laboratory research and industrial deployment. It can be configured with either bare fiber or a 900μm jacket cable, providing flexibility for integration into various optical architectures. The isolator’s compact footprint and customizable options make it a versatile solution for both standard and specialized requirements.

DK Photonics offers the ability to tailor the isolator to specific needs, including custom fiber pigtails, different operating wavelengths, and power handling capabilities. This adaptability, combined with rapid response times for custom orders, positions the 1550nm Polarization Maintaining Isolator as a preferred choice for professionals seeking reliable and high-performance polarization management in their optical systems.

1550nm Polarization Maintaining Isolator

Visit the DK Photonics Store

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1550 nm
Max Power: 20 W
Min Isolation: 48 dB
Operating Wavelength Range: ±20 nm
Max. Insertion Loss At 23℃: 0.55 dB
Typ. Peak Isolation At 23℃: 42 dB
Extinction Ratio: ≥20 dB
Return Loss (input/output): ≥50/50 dB
Fiber Type: PM1550-XP
Operating Temperature: -5 to +70 °C
Storage Temperature: -40 to +85 °C

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low Insertion Loss: Minimizes signal attenuation for optimal system performance.
  • High Isolation: Effectively blocks unwanted back reflections and backscattering, ensuring unidirectional light transmission.
  • High Extinction Ratio: Maintains polarization integrity, ideal for sensitive polarization-dependent applications.
  • Excellent Stability and Reliability: Engineered for long-term operation in demanding environments.
  • 1550nm Wavelength Operation: Optimized for standard telecom and fiber laser wavelengths.
  • PM Panda Fiber Construction: Utilizes high-quality polarization maintaining panda fiber for superior performance.
  • Customizable Fiber Pigtails and Connectors: Available with bare fiber or 900μm jacket; supports various connector types (e.g., FC/APC).
  • Compact Micro-Optic Design: Space-saving form factor suitable for integration into dense optical systems.
  • Supports High Power Handling: Standard models up to 300mW; custom options available for higher power requirements.
  • Versatile Applications: Ideal for fiber lasers, fiber amplifiers, fiber optic sensing, and advanced communication systems.
  • Custom Wavelengths and Configurations: Tailored solutions available for non-standard wavelengths and special operational needs.
  • Short Lead Times for Custom Orders: Fast response and delivery for custom specifications.
  • RoHS Compliant Manufacturing: Environmentally friendly and compliant with global standards.

Applications

  • Fiber Laser Systems
    Ensures stable, unidirectional light propagation in fiber lasers, preventing back-reflection and enhancing laser performance and reliability.
  • Fiber Amplifiers (EDFA, YDFA, etc.)
    Protects sensitive amplifier components from destabilizing back-reflected signals, improving amplification efficiency and system longevity.
  • Fiber Optic Sensing
    Maintains polarization integrity in distributed and point fiber optic sensors, such as interferometric and gyroscope systems, for accurate measurements.
  • Optical Communication Networks
    Enhances signal quality and data integrity in high-speed, long-haul, and metro optical communication links by minimizing noise from backscattering.
  • Quantum Optics and Quantum Communication
    Preserves polarization states in quantum key distribution (QKD) and other quantum information systems, ensuring secure and reliable data transfer.
  • Coherent Optical Systems
    Supports advanced modulation formats and coherent detection by maintaining polarization and suppressing unwanted feedback.
  • Optical Test and Measurement Equipment
    Used in polarization-sensitive test setups to ensure accurate and repeatable measurements by eliminating back-reflection.
  • Nonlinear Optics Experiments
    Prevents destabilizing feedback in setups involving nonlinear processes such as supercontinuum generation, frequency conversion, and parametric amplification.
  • Optical Instrumentation
    Integrated into devices like optical spectrum analyzers, tunable lasers, and interferometers to maintain stable operation and measurement precision.
  • Biomedical and Imaging Applications
    Used in optical coherence tomography (OCT) and other biomedical imaging systems to preserve polarization and reduce noise for clearer imaging results.
  • Research and Development
    Essential in laboratory setups requiring precise polarization control and isolation for experimental optics and photonics research.

Frequently Asked Questions

What is a 1550nm Polarization Maintaining Isolator?
A 1550nm Polarization Maintaining (PM) Isolator is a micro-optic device designed to transmit light in one direction while blocking back reflections and back scattering in the reverse direction. Built with PM panda fiber, it is optimized for use at the 1550nm wavelength and is commonly used in fiber lasers, amplifiers, sensors, and communication systems.
What are the key features of the DK Photonics 1550nm PM Isolator?
The DK Photonics 1550nm PM Isolator offers low insertion loss, high isolation, high extinction ratio, and excellent stability and reliability. It can be configured with bare fiber or a 900μm jacket cable and is available with custom fiber pigtails, connectors, and handling power options.
What applications are suitable for the 1550nm PM Isolator?
This isolator is ideal for use in fiber laser systems, fiber amplifiers, fiber optic sensors, and optical communication networks where maintaining polarization and preventing back reflections are critical.
How does a polarization maintaining isolator work?
A polarization maintaining isolator uses PM panda fiber to ensure that the polarization state of the transmitted light is preserved. It allows light to pass in the forward direction while blocking light traveling in the reverse direction, thus protecting sensitive components from back reflections and feedback.
Can I request a custom PM isolator for specific requirements?
Yes, DK Photonics offers custom PM isolators tailored to your specifications, including different wavelengths, fiber types, connector options, and power handling capabilities. You can contact their sales team with your requirements for a quote and short lead times.
What should I consider when ordering a PM isolator with connectors?
When ordering a PM isolator with connectors, note that insertion loss will be 0.3dB higher, return loss will be 5dB lower, and extinction ratio will be 2dB lower compared to devices without connectors. The default connector key is aligned to the slow axis, and power transmission through the connector should be less than 2W.
What information is needed to place an order for a DK Photonics PM isolator?
To place an order, provide the correct part number (P/N) according to DK Photonics' ordering information, along with a detailed description of your requirements. If you need a connector, avoid choosing a 250μm bare fiber pigtail, and specify any special needs such as pulse application, fiber length, or connector type.

Got more questions? Use the inquiry form to ask the supplier directly.
