Description

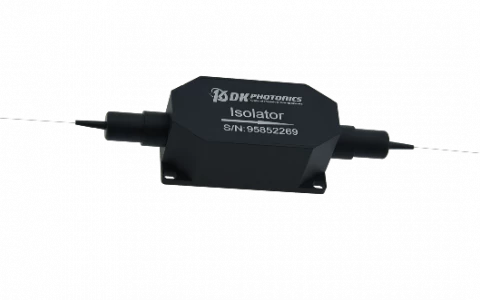

The DK Photonics 1064nm TGG Based Optical Isolator is a high-performance solution designed to protect sensitive optical components from unwanted back reflections and backscattering. Utilizing Terbium Gallium Garnet (TGG) as the core material, this isolator delivers exceptional isolation and low insertion loss, making it an ideal choice for demanding applications in fiber optic communication systems, laser setups, and advanced instrumentation. Its robust construction ensures excellent environmental stability and reliability, even in challenging operating conditions.

This optical isolator is widely adopted in fiber optic amplifiers, laser systems, and test and measurement equipment, where maintaining signal integrity is critical. By effectively suppressing reflected light, the device helps to prevent feedback that can destabilize lasers or degrade system performance. The isolator is available in both polarization-insensitive and polarization-maintaining configurations, catering to a broad spectrum of application requirements.

DK Photonics offers a versatile range of models with power handling capabilities from 300mW up to 150W, and supports center wavelengths spanning from 500nm to 2100nm, ensuring compatibility with various laser sources and fiber optic systems. Engineered for flexibility, the DK Photonics 1064nm TGG Based

Optical Isolator can be customized to meet specific project needs. Options include different fiber types, connector choices, and package dimensions, allowing seamless integration into new or existing setups. Whether for standard or high-power applications, this isolator provides a reliable, cost-effective solution for safeguarding optical networks and enhancing overall system performance.

1064nm TGG Optical Isolator High Isolation Low Loss for Fiber Lasers

Visit the DK Photonics Store

Specifications

Type Of The Device: Isolator
Operating Wavelength: 1064 nm
Max Power: 10 W
Min Isolation: 28 dB
Center Operating Wavelength: 1064 nm
Wavelength Range: 500 nm to 2100 nm
Power Handling Range: 300 mW to 150 W
Pass Optical Power (with Connector): 2 W
Fiber Type: 1060-XP fiber
Fiber Pigtail Outer Diameter: 0.9 mm
Fiber Pigtail Length: 1.0 m
Connector Type: FC/APC (example configuration)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Isolation Performance: Ensures superior suppression of back reflections and back scattering, protecting sensitive laser and amplifier components.
  • Low Insertion Loss: Minimizes signal loss for optimal transmission efficiency, making it ideal for high-performance optical systems.
  • Excellent Environmental Stability & Reliability: Robust design guarantees consistent operation in demanding environments and over extended periods.
  • Wide Wavelength Range: Supports center operating wavelengths from 500nm to 2100nm, including the popular 1064nm band.
  • High Power Handling Capability: Standard models support power levels from 300mW up to 150W; custom options available for higher requirements.
  • Polarization Insensitive & Polarization Maintaining Options: Available in both PI and PM configurations to suit diverse application needs.
  • Customizable Fiber Pigtails & Connectors: Choose from a variety of fiber types, connector options, and pigtail lengths to match your system requirements.
  • Compact & Flexible Package Design: Space-saving form factor with customizable dimensions; contact DK Photonics for special requirements.
  • Cost-Effective Solution: Delivers premium performance at a competitive price point, suitable for both OEM and research applications.
  • RoHS Compliant: Environmentally friendly and compliant with international safety standards.

Typical Applications:

  • Fiber Optic Amplifiers
  • Fiber Lasers
  • Test & Measurement Equipment
  • Optical Communication Systems
  • Instrumentation
  • Laser Systems Requiring Back Reflection Suppression

For more information or custom requirements, please contact:
Email: sales@dkphotonics.com
Website: www.dkphotonics.com
Tel: +86-755-23736280

Applications

  • Fiber Laser Systems: Prevents back reflections and feedback in high-power fiber laser setups, ensuring stable laser operation and protecting sensitive components.
  • Optical Amplifiers (EDFA, YDFA, etc.): Enhances amplifier performance by suppressing unwanted backscattering and reflections, improving signal integrity and system reliability.
  • Test and Measurement Equipment: Ensures accurate optical measurements by eliminating interference from reflected signals in laboratory and industrial testing environments.
  • Optical Communication Systems: Protects transmitters and receivers in fiber optic communication networks from destabilizing back reflections, enabling higher data transmission quality.
  • Laser Diode Protection: Shields laser diodes from damaging optical feedback, extending device lifetime and maintaining output stability.
  • Optical Sensing Systems: Improves the performance of fiber optic sensors by minimizing noise and signal degradation caused by back reflections.
  • Quantum Optics and Quantum Communication: Maintains the integrity of quantum signals by preventing feedback and crosstalk in sensitive quantum experiments and systems.
  • Optical Instrumentation: Used in spectrometers, optical analyzers, and other precision instruments to ensure measurement accuracy by blocking unwanted reflected light.
  • Medical and Biomedical Lasers: Protects laser sources and enhances system safety in medical diagnostic and therapeutic equipment utilizing fiber-coupled lasers.
  • Research and Development: Essential in R&D labs for experimental setups involving lasers, amplifiers, and sensitive photonic devices to ensure reliable and repeatable results.
  • Industrial Material Processing: Used in laser cutting, welding, and marking systems to prevent feedback that can disrupt high-power laser operations.
  • Multiplexed Optical Networks: Ensures stable operation in WDM (Wavelength Division Multiplexing) and DWDM systems by isolating channels and preventing signal interference.
  • Nonlinear Optics Experiments: Maintains signal purity in setups involving frequency conversion, parametric amplification, or other nonlinear optical processes.
  • Optical Rotators and Circulators Integration: Can be combined with rotators and circulators for advanced photonic circuit designs, enabling complex signal routing and isolation functions.

Frequently Asked Questions

What is a 1064nm TGG Based Optical Isolator and how does it work?
A 1064nm TGG Based Optical Isolator is a passive optical device designed to allow light to pass in one direction while blocking it in the reverse direction, thereby preventing back reflection and back scattering in fiber optic systems. It uses a Terbium Gallium Garnet (TGG) crystal to rotate the polarization of light, ensuring high isolation and low insertion loss, which is critical for protecting lasers and amplifiers in fiber optic communication equipment.
What are the key features of the DK Photonics 1064nm TGG Based Optical Isolator?
The key features of the DK Photonics 1064nm TGG Based Optical Isolator include high isolation, low insertion loss, cost effectiveness, excellent environmental stability, and high reliability. It is available in both polarization insensitive and polarization maintaining versions, with customizable power handling and wavelength options.
What applications are suitable for the DK Photonics 1064nm Optical Isolator?
This optical isolator is widely used in fiber optic amplifiers, fiber optic lasers, test and measurement equipment, and other instrumentation. It is ideal for any application where suppression of back reflection and back scattering is critical to system performance and laser protection.
Can the DK Photonics 1064nm Optical Isolator be customized for specific requirements?
Yes, DK Photonics offers custom solutions for their optical isolators. Customers can request specific fiber pigtails, different operating wavelengths (from 500nm to 2100nm), higher power handling (from 300mW up to 150W or more), and other custom specifications to meet unique application needs.
What are the recommended connector and fiber options for high power applications?
For high power applications, DK Photonics recommends direct splicing without connectors to minimize insertion loss and maximize reliability. If connectors are required, avoid using 250μm bare fiber pigtails and note that each connector adds 0.3 dB insertion loss and reduces return loss by 5 dB.
How do I order or specify a custom DK Photonics optical isolator?
To order a custom optical isolator, provide the correct part number (P/N) according to DK Photonics' ordering information and include a detailed description of your requirements, such as wavelength, power handling, fiber type, pigtail length, and connector type. For assistance, contact DK Photonics directly via their website or email.
What is the typical power handling range and wavelength range for DK Photonics optical isolators?
DK Photonics optical isolators can handle optical powers ranging from 300mW to 150W, with center operating wavelengths available from 500nm to 2100nm. Custom power and wavelength specifications can also be accommodated upon request.

Got more questions? Use the inquiry form to ask the supplier directly.
