Description
Leoni Fiber Optics offers high-performance step-index multimode fibers designed to meet the demanding needs of various industries. These fibers are crafted from pure fused silica glass with a high OH content, ensuring exceptional clarity and performance across a wide wavelength range of 190 nm to 1100 nm, covering the UV-VIS spectrum. This makes them an ideal choice for applications requiring precise light transmission and minimal signal loss.
Each fiber is protected by an advanced coating, available in options such as acrylate, silicone, or polyimide, to suit specific environmental conditions and application requirements. These coatings provide durability and flexibility, allowing the fibers to operate efficiently in diverse temperature ranges. The acrylate coating, for instance, supports temperatures from -40 °C to 85 °C, with an optional extension to 150 °C, while the polyimide coating can withstand extreme temperatures ranging from -190 °C to 385 °C.
The fibers are available in a variety of core and cladding diameters, ensuring compatibility with a wide range of optical systems. The step-index design of these multimode fibers enhances their ability to transmit light efficiently, making them suitable for use in optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications. Additionally, the fibers can be customized with different jacket materials and colors, including options like Nylon® and Tefzel®, to meet specific aesthetic and functional requirements.
Leoni Fiber Optics' commitment to quality is further exemplified by their ORMOCE®R coating option, which allows for continuous use at temperatures up to 200 °C. This, combined with their extensive range of fiber diameters, ensures that Leoni's step-index multimode fibers are equipped to deliver reliable performance in even the most challenging environments.
Polyimide Coated Multimode Fiber – 84800039N
Specifications |
|
|---|---|
| Core Diameter: | 50 um |
| Wavelength Range: | 190 – 1100 nm |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
Features

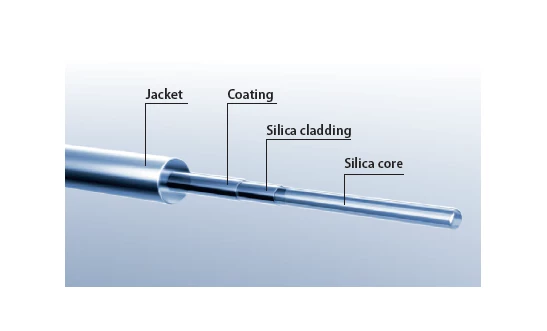

- Material Composition: Core and cladding made of pure fused silica glass with high OH content.
- Wavelength Range: Operates effectively from 190 nm to 1100 nm (UV-VIS).
- Coating Options: Available with acrylate, silicone, or polyimide coatings.
- Applications: Ideal for optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
- Core Diameter Options: Available diameters include 50, 100, 105, 115, 200, and 300 μm (±2%).
- Cladding Diameter Options: Available diameters include 55, 125, 110, 220, and 330 μm (±2%).
- Numerical Aperture: Standard 0.22, adjustable from 0.1 to 0.28 upon request.
- Jacket Options: Available in Nylon® and Tefzel® with various color options including black, blue, transparent, yellow, red, and white.
- Bending Radius: Short-term: 100 x clad radius; Long-term: 600 x clad radius.
- Special Features: ORMOCER® coating available for continuous use at 200 °C.
- Fiber Series: Includes FiberConnect®, FiberSwitch®, FiberSplit®, and FiberTech®.
Applications
- Optical Data Transmission: Utilizes step-index multimode fibers for efficient data transfer over UV-VIS wavelength range.
- Sensor Technology: Suitable for integration in various sensor applications due to its high-performance characteristics.
- Spectroscopy: Ideal for spectroscopic applications, benefiting from the fiber's ability to operate across a wide wavelength range.
- Medical Technology: Used in medical devices and applications that require precise optical fiber performance.
- Laser Applications: Supports laser systems with its robust and reliable optical transmission properties.
Frequently Asked Questions
These multimode fibers are used in optical data transmission, sensor technology, spectroscopy, medical technology and laser applications.
The short-term bending radius is 100 x clad radius and the long-term bending radius is 600 × clad radius.
The temperature range for fibers with polyimide coating is -190 °C to 385 °C (briefly up to 400 °C).
The numerical aperture for fibers with dual acrylate coating is 0.22 (0.1 to 0.28 on request).
The fibers are used in a wavelength range from 190 nm to 1100 nm (UV-VIS).
