J-Plasil Fused Silica rods are made for the VIS, NIR and IR range. The low OH high-performance fused silica material was developed particularly for the transmission in the VIS to IR wavelength range and offers a further optimizing for the application in the IR range. It is produced using a plasma based ...
  • Diameter: 25-80 mm
  • Rod Length: 200-800 mm
  • Substrate Material: Fused Silica
Data Sheet
BDSR Fused Silica Rods
LEONI Fiber Optics, Inc.
BDSR Boron-doped fused silica rods are used for the production of polarization maintaining (PM) fibers in the so-called Panda design.
  • Core Diameter: 3-13 mm
  • Length Of Rod: 200-600 mm
Data Sheet
SQ Fused Silica Rods
LEONI Fiber Optics, Inc.
Undoped silica for application in the UV / VIS range. It is used for  efficient manufacuring of optical components such as lenses mirrors and plates, as well as for the production of special preforms. The higly pure material offers best optical and physical properties and highest homogeneity in the refractive ...
  • Substrate Material: Fused Silica
Data Sheet

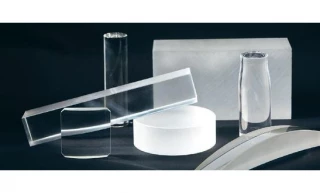

SQ Fused Silica – Especially for the production of optical and photonic devices in the fiber optic, semiconductor and display technology markets, as well as for optical applications and laser applications. The particularly inclusion- and bubble-free material features excellent optical and physical properties: ■ Laser ...
  • Substrate Material: Fused Silica
Data Sheet
SQ Fused Silica – Especially for the production of optical and photonic devices in the fiber optic, semiconductor and display technology markets, as well as for optical applications and laser applications. The particularly inclusion- and bubble-free material features excellent optical and physical properties: ■ Laser ...
  • Substrate Material: Fused Silica
Data Sheet
SQ Fused Silica – Especially for the production of optical and photonic devices in the fiber optic, semiconductor and display technology markets, as well as for optical applications and laser applications. The particularly inclusion- and bubble-free material features excellent optical and physical properties: ■ Laser ...
  • Substrate Material: Fused Silica
Data Sheet
SQ Fused Silica – Especially for the production of optical and photonic devices in the fiber optic, semiconductor and display technology markets, as well as for optical applications and laser applications. The particularly inclusion- and bubble-free material features excellent optical and physical properties: ■ Laser ...
  • Substrate Material: Fused Silica
Data Sheet
SQ Fused Silica – Especially for the production of optical and photonic devices in the fiber optic, semiconductor and display technology markets, as well as for optical applications and laser applications. The particularly inclusion- and bubble-free material features excellent optical and physical properties: ■ Laser ...
  • Substrate Material: Fused Silica
Data Sheet
FST fused silica tubes were developed to provide special fiber manufacturers with a reliable source for Fluorine-doped high performance tubes. FST is the perfect basis for preform design, as it meets the particular requirements of special fiber manufacturers. FST tubes contain highest Fluorine concentrations of 4wt. % ...
  • Inner Tube Diameter (I.T.): 20-40 mm
  • Material Composition: SiO2 /F
Data Sheet
FSI preforms are used for the manufacturing of special fibers with undoped core and doped cladding. These fibers are applied in diverse industrial and medical sectors as well as in research and development. FSI preforms can be fitted to the customer\'s demands concerning UV or IR laser transmission, spectroscopy and high-power ...
  • Numerical Aperture: 0.10 - 0.24
  • Cladding Composition: SiO2
  • Preform Diameter (O.D.): 10-40 mm
  • Core Composition: SiO2 / GeO2
Data Sheet
The j-fiber group offers preforms with Germanium-doped core for the manufacturing of special step-index fibers. In order to ensure the specified fiber transmission properties, the preforms are produced using j-fiber\'s own MCVD technique. The highly photosensitive singlemode preforms were developed for the efficient ...
  • Cladding Composition: SiO2
  • Core Composition: SiO2 / GeO2
  • Preform Diameter (O.D.): 15-25 mm
  • Numerical Aperture: 0.16 - 0.30
Data Sheet
The j-fiber group offers preforms with Germanium-doped core for the manufacturing of special step-index fibers. In order to ensure the specified fiber transmission properties, the preforms are produced using j-fiber\'s own MCVD technique. The highly photosensitive singlemode preforms were developed for the efficient ...
  • Preform Diameter (O.D.): 10-40 mm
  • Core Composition: SiO2 / GeO2
  • Cladding Composition: SiO2
  • Numerical Aperture: 0.1 - 0.15
Data Sheet
FSI preforms are used for the manufacturing of special fibers with undoped core and doped cladding. These fibers are applied in diverse industrial and medical sectors as well as in research and development. FSI preforms can be fitted to the customer\'s demands concerning UV or IR laser transmission, spectroscopy and high-power ...
  • Preform Diameter (O.D.): 20 - 70 mm
  • Cladding Composition: SiO2 /F
  • Core Composition: SiO2
Data Sheet
Using highly pure fused silica materials, the LEONI subsidiary j-fiber develops and produces high-quality preforms according to customer specifications. They are the basis for the manufacturing and application of high-performance special fibers and standard fibers. LEONI offers graded-index preforms for ...
  • Preform Length: 600-1200 mm
  • Core Diameter: 62.5 um
  • Cladding Diameter: 125 um
  • Core Composition: SiO2/GeO2
Data Sheet
Using highly pure fused silica materials, the LEONI subsidiary j-fiber develops and produces high-quality preforms according to customer specifications. They are the basis for the manufacturing and application of high-performance special fibers and standard fibers. LEONI offers graded-index preforms for ...
  • Cladding Diameter: 125 um
  • Preform Length: 600-1200 mm
  • Core Diameter: 50 um
  • Core Composition: SiO2/GeO2
Data Sheet

Did You know?

Optical fibers are composed primarily of silicon dioxide (SiO 2), though minute amounts of other chemicals are often added. Highly purified silica powder was used in the now-outmoded crucible manufacturing method, while liquid silicon tetrachloride (SiCl 4) in a gaseous stream of pure oxygen (02) is the principal source of silicon for the vapor deposition method currently in widespread use. Other chemical compounds such as germanium tetrachloride (GeCl 4) and phosphorus oxychloride (POC1 3) can be used to produce core fibers and outer shells, or claddings, with function-specific optical properties. The first step in manufacturing glass optical fibers is to make a solid glass rod, known as a preform. There are several methods to create a fiber optic cable like Modified chemical vapour deposition, outside vapour deposition etc.
