Description
Discover the exceptional qualities of SQ Fused Silica, a superior material designed for the production of optical and photonic devices. This ultrapure fused silica is particularly valued in the fiber optic, semiconductor, and display technology markets, as well as for various optical and laser applications. Renowned for its inclusion- and bubble-free nature, SQ Fused Silica offers outstanding optical and physical properties, ensuring reliability and performance in demanding environments.
One of the standout attributes of SQ Fused Silica is its remarkable laser durability. It maintains refractive index homogeneity, ensuring consistent optical performance across various applications. The material also boasts impressive thermal stability and resistance to temperature shock, making it an ideal choice for environments subject to rapid temperature changes. Additionally, its low stress birefringence and small thermal expansion coefficients contribute to its stability and precision, essential for high-precision optical components.
The high OH and H2 content in SQ Fused Silica results in extremely low fluorescence, even under high-energy UV and laser radiation. This feature is crucial for applications requiring high stability and minimal interference from fluorescence, ensuring that the material performs optimally in critical optical systems.

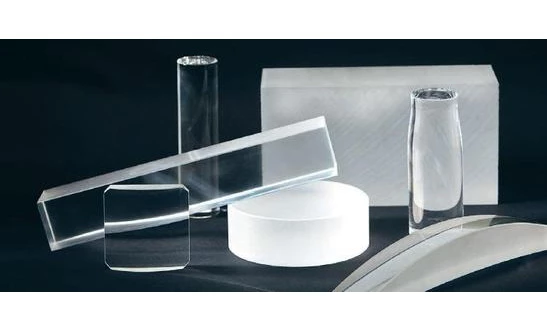

LEONI offers SQ Fused Silica in a range of forms, including ingots and semifinished products such as round discs, rods, plates, and blocks. Available in five quality grades, these products are tailored to meet specific customer requirements. The quality grades are determined through rigorous measuring and selection processes to ensure that the material meets the highest standards for homogeneity and absence of striae.
The SQ0 grade is a 3D material free of striae, ideal for optical elements with multiple light directions, such as prisms and lenses. The SQ1 grade offers high homogeneity and is free of striae in the functional direction, suitable for lenses, discs, wafers, and rods. For technical applications, SQT grade is available, focusing less on homogeneity but still providing reliable performance. Furthermore, the Excimergrade Fused Silica, available as SQ1 or SQ0, offers excellent transmission at 193 nm and 248 nm, with the lowest levels of laser-induced fluorescence.
SQ Fused Silica – Ultrapure Fused Silica -SQ-E193
Specifications |
|
|---|---|
| Transmission At 193 Nm: | Excellent |
| Transmission At 248 Nm: | Excellent |
| Typical Transmission Path Length: | 10 mm |
| Excimer Grade: | SQ1 or SQ0 |
| Fluorescence Signal: | Very low level |
| Substrate Material: | Fused Silica |
Features
- High Laser Durability: SQ Fused Silica is designed to withstand intense laser applications, making it ideal for optical and photonic devices.
- Refractive Index Homogeneity: Ensures consistent optical performance across various applications, from fiber optics to semiconductor technologies.
- Thermal Stability: Exceptional resistance to temperature shocks and thermal expansion, providing reliability in demanding environments.
- Low Stress Birefringence: Minimizes optical distortion, crucial for precision applications in optics and photonics.
- Minimal Thermal Expansion: Features small thermal expansion coefficients, enhancing stability and performance under thermal stress.
- High UV and Laser Radiation Stability: Due to high OH and H2 content, the material exhibits low fluorescence and high stability under UV and laser exposure.
- Versatile Applications: Suitable for excimer laser optics, DUV and UV optical components, standard optics (VIS and NIR), UV rods, preforms, optical fibers, and more.
- Available in Various Quality Grades: Offered in five quality grades (SQ0, SQ1, SQT, SQ0-E193, SQ1-E193, SQ0-E248, SQ1-E248) tailored to specific customer needs and applications.
- Excellent Transmission: Excimergrade Fused Silica provides outstanding transmission at 193 nm and 248 nm, with minimal laser-induced fluorescence.
- Customizable Formats: Available as ingots or semi-finished products (discs, rods, plates, blocks), allowing for customization based on project requirements.
Applications
- Excimer Laser Optics: Ideal for beam guiding systems and excimer-grade components.
- DUV and UV Optics: High transmission fused silica for deep ultraviolet applications.
- VIS and NIR Standard Optics: Suitable for lenses, wafers, rods, and fibers.
- Lithography & Microlithography: Stepper lenses, photo mask blanks, and optics.
- Laser Fusion Systems: High stability under intense laser radiation.
- Technical Components: Windows, vessels, and precision optical parts.
Frequently Asked Questions
SQ Fused Silica is available in five quality grades, which are adjusted to individual customer needs in proven measuring and selection procedures. The quality grades range from SQ0, which is recommended for requirements in optical elements with several light directions such as prisms and lenses, to SQT, which is recommended for technical applications.
SQ Fused Silica is suitable for a range of applications, including excimer laser optics and beam guiding systems, DUV and UV optics components, standard optics (VIS and NIR), UV rods, preforms and optical fibers, laser fusion, fused silica vessels and windows, and lithography and microlithography applications.
SQ Fused Silica has excellent optical and physical properties, including laser durability, refractive index homogeneity, thermal stability and temperature shock resistance, low stress birefringence, and small thermal expansion coefficients.
SQ Fused Silica is used for the production of optical and photonic devices in the fiber optic, semiconductor and display technology markets, as well as for optical applications and laser applications.
The excimer grade of SQ Fused Silica is available as SQ1 or SQ0 and has excellent transmission at 193 nm / 248 nm, as well as the lowest level of laser-induced fluorescence (LIF).
