Description
The LEONI subsidiary, j-fiber, is at the forefront of developing and producing high-quality preforms using highly pure fused silica materials. These preforms are meticulously crafted according to customer specifications, serving as the foundation for manufacturing high-performance special fibers and standard fibers. Whether your objective is high data rate transmission or high-power laser applications, LEONI can tailor the waveguide design to meet your specific demands, from prototype to series production.
The preform design and configuration can be customized in terms of core profile—either step-index or graded-index—and dopant options, including Germanium, Fluorine, Boron, or Rare-earth elements, to achieve the desired numerical aperture. The process of creating these preforms involves a sophisticated step-by-step methodology. Initially, the appropriate core material is selected, either from LEONI's production of undoped fused silica with varying OH content or by directly coating doped fused silica. Subsequently, the final waveguide preform is produced using LEONI's proprietary MCVD process for both graded-index and step-index fibers or the PBVD process for large core step-index fibers.
Each preform undergoes rigorous quality monitoring to ensure it meets the specified performance parameters, resulting in preforms that deliver outstanding performance during fiber drawing for demanding applications. LEONI also offers graded-index preforms for high-performance multimode fibers in 50/125 and 62.5/125 designs. These preforms are manufactured using an innovative MCVD production technique, ensuring that the specified fiber performance properties are consistently met.
On request, these graded-index preforms can be delivered with a handle, facilitating their fixation in the drawing tower. This meticulous attention to detail and commitment to quality make LEONI's preforms an ideal choice for applications requiring precision and reliability.

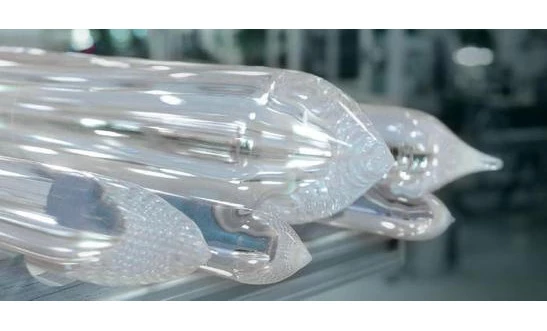

FiberTech Singlemode Photosensitive Germanium-Doped Step-Index Preforms
Specifications |
|
|---|---|
| Core Composition: | SiO2 / GeO2 |
| Cladding Composition: | SiO2 |
| Preform Diameter (O.D.): | 15-25 mm |
| Numerical Aperture: | 0.16 - 0.30 |
Features
- High-Quality Preforms: Crafted using highly pure fused silica materials to meet customer specifications, ensuring top-tier performance for special and standard fibers.
- Customizable Waveguide Design: Tailored for high data rates or high-power laser transmission, with adjustable waveguide designs from prototype to series production.
- Preform Design Options: Available in step-index and graded-index core profiles with dopant options including Germanium, Fluorine, Boron, or Rare-earth elements to achieve desired numerical apertures.
- Advanced Process Technology: Utilizes MCVD (Modified Chemical Vapor Deposition) and PBVD (Plasma-Enhanced Chemical Vapor Deposition) processes for precise preform production.
- Strict Quality Monitoring: Every preform undergoes rigorous quality checks to ensure optimal performance during fiber drawing for demanding applications.
- Multimode Preforms: Offers graded-index preforms for high-performance multimode fibers in 50/125 and 62.5/125 designs, ensuring specified fiber performance properties.
- Innovative Production Techniques: Utilizes cutting-edge MCVD production techniques to ensure fiber performance, with optional preform handles for easy drawing tower installation.
- Bubble Size and Quality Control: Strict control over bubble size in preforms, with specific allowances in cladding and none allowed in the core.
- Typical Performance Values: Includes detailed specifications such as refractive index profiles, numerical apertures, and attenuation characteristics for 50/125 and 62.5/125 designs.
- Dimensional Tolerances: Preforms are manufactured with precise outer diameter (O.D.) tolerances to ensure consistency and reliability.
Applications
- Telecom and Data Transmission: Multimode and singlemode fiber production
- High-Power Laser Delivery: Step-index fibers for laser systems
- Spectroscopy and Sensing: Specialty fibers for UV-VIS-IR applications
- Fiber Bragg Grating (FBG) Inscription: Photosensitive preforms
- Medical and Industrial Diagnostics: Specialty fibers for advanced systems
- Lithography and Microlithography: Stepper lenses, wafers, photomasks
- Research and Development: Prototyping and custom optical fiber designs
Frequently Asked Questions
Each preform is produced with the suited technology: Step 1 ➔ choice of the appropriate core material, either from our raw material production of undoped fused silica with high or low OH content or by direct coating of doped fused silica. Step 2 ➔ Production of the final waveguide preform, either our own MCVD process (inner coating) for graded-index and step-index fibers or a PBVD process (outer coating) for large core step-index fibers.
FiberTech Singlemode Photosensitive Germanium-Doped Step-Index Preforms are preforms with Germanium-doped core for the manufacturing of special step-index fibers.
The typical values for the wavelength, radius, and refractive index of the preforms depend on the type of preform, such as TYPE 62.5/125/245 or TYPE 50/125/245.
The MCVD technique is used to ensure the specified fiber transmission properties during the production of these preforms.
The dopant options available for these preforms are Germanium, Fluorine, Boron, or Rare-earth elements.
