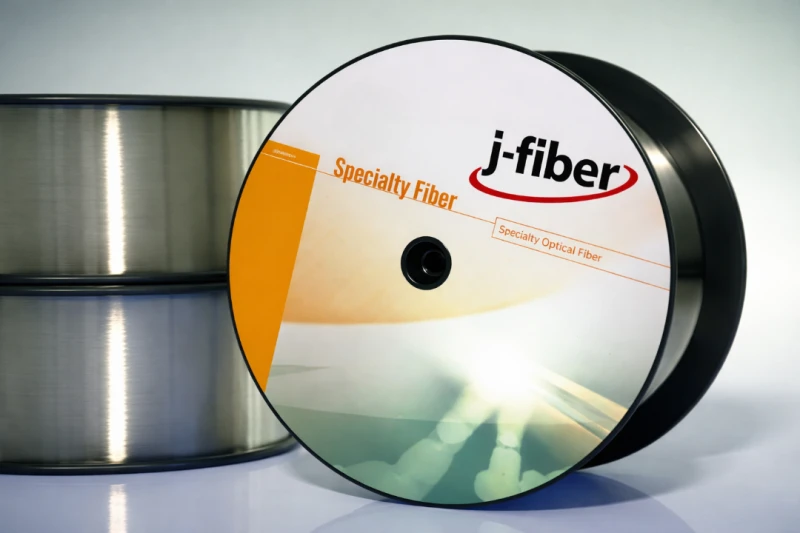

Discover the exceptional quality and performance of our j-fiber Multimode Fiber 50/125µm, specifically designed for sensing applications. This advanced optical fiber offers low spectral attenuation across a wide wavelength range from 850nm to 1600nm, ensuring high efficiency and reliability in data transmission. Its high bandwidth capability is tailored for high data rates, making it an ideal choice for demanding environments where performance cannot be compromised.

Engineered with low OH-content, our fiber guarantees minimal signal loss and superior clarity. The fiber's construction allows for easy handling and excellent splicing performance, ensuring seamless integration into existing systems. Each fiber is manufactured in compliance with IEC 60793-2-10 and ITU G651.1 standards, reflecting our commitment to quality and precision.

The j-fiber Multimode Fiber features a core diameter of 50 ± 2.5 µm and a cladding diameter of 125 ± 1 µm, with stringent controls on non-circularity and concentricity errors to maintain optimal performance. The dual-layer acrylate coating provides robust protection while maintaining flexibility, with a coating diameter of 242 ± 7 µm. Available in natural color, the fiber can be customized with up to 16 colors and ring marking upon request, catering to specific project needs.

Our optical fiber is available in standard lengths ranging from 1.1 km to 8.8 km, with special lengths available upon request to suit various installation requirements. With an attenuation coefficient of ≤ 2.4 dB/km at 850nm and ≤ 0.6 dB/km at 1300nm, the fiber ensures minimal signal degradation over long distances. The macrobend performance is exceptional, with attenuation of ≤ 0.5 dB, ensuring reliability even in challenging installations.
