Description

In environments where durability and high performance are crucial, such as mining, aerospace, military, and transportation, the application of optical fibers demands exceptional protection against extreme temperatures. j-fiber has engineered a range of optical fiber designs specifically for these challenging conditions, offering an impressive operating temperature range from -65°C to 300°C. This makes them ideal for use in the production of cables that require high-temperature stability.

j-fiber's optical fibers are coated with Polyimide, a material that is favored over traditional acrylate coatings, particularly in vacuum applications or where a thin coating layer is necessary. This advanced coating ensures that the fibers maintain their integrity and performance even in the most demanding environments. The Polyimide coating is not only robust but also provides a reliable solution for applications that require a high degree of precision and stability.

The optical fibers from j-fiber are available in a variety of designs, including Singlemode G.652.D, G.657.A1/A2, and Multimode 50/125, 62.5/125, as well as specialty fibers such as step-index, large core, and high-NA. This versatility allows for a wide range of applications, ensuring that there is a suitable fiber for every need. With their superior temperature specifications and robust mechanical characteristics, j-fiber's optical fibers are the optimal choice for industries that demand the highest standards of performance and reliability.

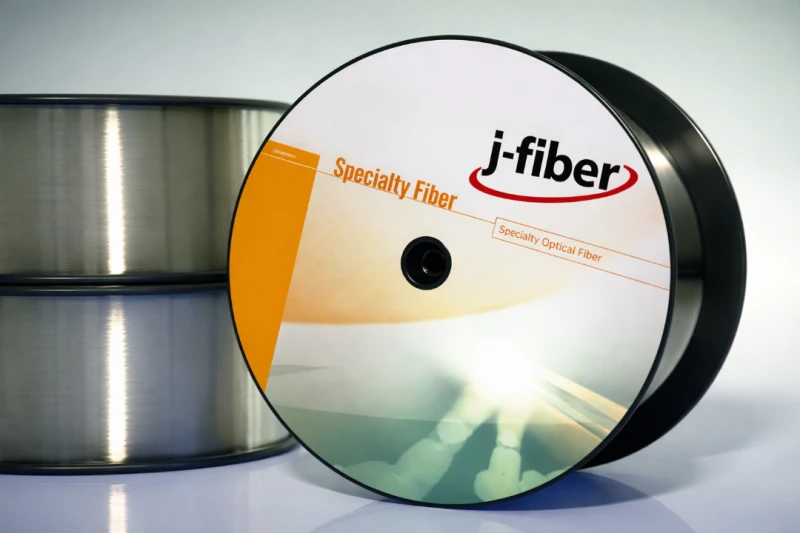

High-Temperature Polyimide Coated Optical Fibers for Extreme Environments

Specifications

Core Diameter: Not Specified
Wavelength Range: 850 – 1300 nm
Cable Length: Not Specified
Fiber Core Material: Not Specified
Operating Temperature Range: -65 to +300 °C
Coating Material: Polyimide
Cladding Diameter: 125 ± 2 µm
Coating Diameter: 155 ±10 µm
Attenuation (50/125 @ 850/1300nm): ≤ 3.0 / 1.0 dB/km
Attenuation (62.5/125 @ 850/1300nm): ≤ 4.0 / 1.5 dB/km
Attenuation (Singlemode @ 1310/1550nm): ≤ 0.7 / 0.6 dB/km
Change Of Temperature: -60°C to +150°C
Dry Heat: 30 days, at 150°C
Damp Heat: 30 days, at 85°C/85% R.H.
Water Immersion: ≤ 0.1 dB/km

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Temperature Stability: Designed for demanding environments, j-fiber's optical fibers offer an extended operating temperature range from -65°C to +300°C, ensuring maximum protection in high-temperature conditions.
  • Polyimide Coating: Preferred over acrylate coating for vacuum applications and scenarios requiring a thin coating layer, providing superior performance and reliability.
  • Ordering Information: Specify fiber type (Multimode, Singlemode, Specialty Fiber), desired attenuation and bandwidth (at 850nm/1300nm/1550nm), fiber quantity (kms), and any other special requests.

Applications

  • Mining: Optical fibers are used in harsh mining environments where high temperature stability and durability are crucial.
  • Industry: Suitable for industrial applications requiring robust fiber performance under extreme conditions.
  • Aerospace: Ideal for aerospace applications where fibers must withstand high temperatures and vacuum conditions.
  • Military: Provides reliable communication solutions in military operations with demanding environmental conditions.
  • Transportation: Used in transportation systems that require stable fiber performance across a wide temperature range.
  • Vacuum Applications: Polyimide coating is preferred over acrylate for applications in vacuum environments.
  • Thin Coating Layer Applications: Suitable for applications requiring a thin coating layer for space or weight constraints.

Frequently Asked Questions

What is the operating temperature range of j-fiber's optical fibers?
The operating temperature range of j-fiber's optical fibers is -65°C to +300°C.
What types of optical fibers does j-fiber offer?
j-fiber offers a variety of optical fiber designs including Singlemode G.652.D, G.657.A1/A2, Multimode 50/125, 62.5/125, and specialty fibers such as step-index, large core, and high-NA.
Why is Polyimide coating preferred over acrylate coating?
Polyimide coating is preferred over acrylate coating in vacuum applications and in applications requiring a thin coating layer.
What is the attenuation specification for Singlemode fibers at 1310/1550nm?
The attenuation specification for Singlemode fibers at 1310/1550nm is ≤ 0.7 / 0.6 dB/km.
What are the geometrical characteristics of the optical fibers?
The cladding diameter is 125 ± 2 µm and the coating diameter is 155 ±10 µm.
How does the optical fiber perform under dry heat conditions?
Under dry heat conditions for 30 days at 150°C, the attenuation change is ≤ 0.1 dB/km for Multimode fibers and ≤ 0.05 dB/km for Singlemode fibers.

Got more questions? Use the inquiry form to ask the supplier directly.
