Description

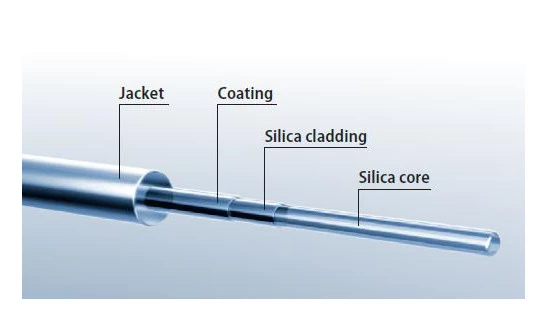

The core of glass fibers for IR consists of pure fused silica glass with low OH content and uniform refractive index across the entire diameter. The fibers are used in a wavelength range from 400 nm to 2400 nm (VIS-IR). The fibers themselves are covered with a coating either consisting of acrylate, silicone or polyimide.
The multimode fibers are not only used in optical data transmission, but also in sensor technology, spectroscopy, medical technology and laser applications.
Dual Acrylate Coated Multimode Fiber – 84810051N
Specifications
| Core Diameter: | 200 um |
|---|---|
| Wavelength Range: | 400 – 2400 nm |
| Cable Length: | Not Specified |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
Download Data Sheet
Frequently Asked Questions
What is the core material of the glass fibers for IR?
The core of glass fibers for IR consists of pure fused silica glass with low OH content and uniform refractive index across the entire diameter.
What are the applications of the multimode fibers?
The multimode fibers are used in optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
What is the wavelength range that the fibers are used in?
The fibers are used in a wavelength range from 400 nm to 2400 nm (VIS-IR).
What is the temperature range for the fibers with coating?
The temperature range for the fibers with coating is -40 °C to 85 °C.
What is the short-term bending radius for the fibers?
The short-term bending radius is 100 x clad radius.
