Description

Fiber Bragg Gratings have many applications in optical communication, laser technique and sensing systems. The FBGs are widely used like in-fiber mirrors or optical filters with narrow band optical spectrum. FBGs can be used like a sensitive element for strain and temperature measuring.

LASER MATCHED FIBER BRAGG GRATING PAIRS GTL-FBG-LP-830

Visit the FORC-Photonics Store

Specifications

Center Wavelength Range: 600 – 2300 nm
FBG Length: Custom
Reflectivity: Not Specified
Reflectivity, % (Low-reflection(LR)): 5 ÷ 40
Reflectivity, % (High-reflection(HR)): › 99
Mismatching (LR Relative To HR), Nm: ‹ 0.2
Bandwidth (FWHM), Nm (Low-reflection(LR)): 0.1 ÷ 0.8
Bandwidth (FWHM), Nm (High-reflection(HR)): 0.7 ÷1.2

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

Our Laser Matched FBG pairs are an ideal solution for fiber laser fabrication. Minimum insertion losses and optimal parameters are for lasers with output power of several tens watt. High reflection grating has bandwidth at level -20dB about 0.5 ÷ 0.7 nm. High reflection grating has level -20dB about 0.5 – 0.7nm. Output grating with reflectivity 5% - 40% has FWHM 0.15 ÷ 0.35nm. Mismatching LR grating relative to HR one is up to ± 0.1nm.

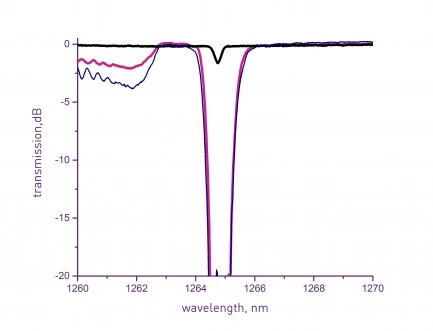

For fiber lasers with narrow line we offer FBG pairs with FWHM around or less 0.1nm with ideal matching without adjustment. The transmission spectrum of FBGs Pair for Yb laser and Raman converter are presented in the graph.

Applications

The FBGs are widely used like in-fiber mirrors or optical filters with narrow band optical spectrum. FBGs can be used as a sensitive element for strain and temperature measuring.

Frequently Asked Questions

Can the configuration of the FBG pairs be changed according to the customer's request?
Yes, the configuration can be changed at the customer's request. The parameters specified in this specification can be changed in accordance with the terms of reference.
What are Fiber Bragg Gratings used for?
Fiber Bragg Gratings have many applications in optical communication, laser technique, and sensing systems. They are widely used as in-fiber mirrors or optical filters with narrow band optical spectrum. They can also be used as a sensitive element for strain and temperature measuring.
What are the features of the Laser Matched FBG pairs?
Our Laser Matched FBG pairs are an ideal solution for fiber laser fabrication. They have minimum insertion losses and optimal parameters for lasers with output power of several tens watt. The high reflection grating has bandwidth at level -20dB about 0.5 ÷ 0.7 nm. The output grating with reflectivity 5% - 40% has FWHM 0.15 ÷ 0.35nm. The mismatching LR grating relative to HR one is up to ± 0.1nm.
What is the tolerance/note for the Fiber Laser Matched FBG Pairs?
The tolerance/note for the Fiber Laser Matched FBG Pairs is as follows: Wavelength range, nm 600 ÷ 2300 ± 0.1 ÷ ± 1 custom request; Types of fiber Single-Mode, PM, Double clad, LMA or custom; Wavelength to quick order, nm 633, 780, 852, 940, 976, 1030, 1060, 1064, 1080, 1125, 1150, 1178, 1240, 1270, 1310, 1484, 1510 ÷ 1580, 1650, 1900, 1908, 1952, 2300 ± 0.1 ÷ ± 1 custom request; Reflectivity, % Low-reflection(LR) High-reflection (HR) 5 ÷ 40 › 99 2 ÷ 5 custom request; Bandwidth (WFHM), nm 0.1 ÷ 0.8 0.7 ÷1.2; Mismatching (LR Relative to HR), nm ‹ 0.2 or custom; FBG Pigtail Length, m ≥ 0.5 or custom.
What is the transmission spectrum of FBGs Pair for Yb laser and Raman converter?
The transmission spectrum of FBGs Pair for Yb laser and Raman converter is presented in the graph.

Got more questions? Use the inquiry form to ask the supplier directly.
