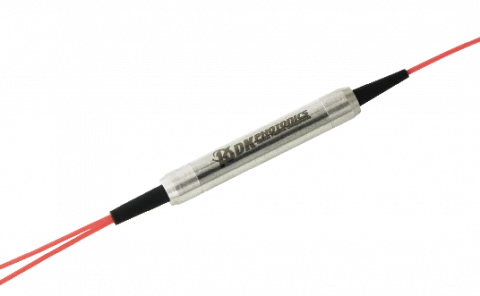

Thumbnail of Polarization Beam Combiner / Splitter photo 1

Description

The Polarization Beam Combiner/Splitter-1310&1480&1550nm can be used either as a polarization beam combiner to combine light beams from two PM input fibers into a single output fiber, or as a polarization beam splitter to split light from an input fiber into two output fibers of orthogonal polarization states.

An important application of this device is polarization division multiplexing or demultiplexing in optical systems to increase their transmission capacity. In addition, as a pump combiner in optical amplifiers, the device efficiently combines the output from two pump lasers into a single fiber to increase the optical amplifier’s saturation power and to reduce its polarization sensitivity. The most common application is to combine the light of two pump lasers into a single fiber to double the pump power to an Erbium-Doped Fiber Amplifier (EDFA) or a Raman Amplifier. The wide operation bandwidth and high power handling capability (up to 5W) make the device very attractive for next-generation amplifier systems. Finally, with a rugged stainless package designed for high optical performance and stability, this compact device offers low excess insertion loss, low back reflection, and high extinction ratio that equal or surpass others on the market.

DK Photonics offers a large selection of PBS/C. These devices can handle powers rang from 300mW to 10W or other on request, and have center operating wavelengths ranging from 850 nm to 1650nm.

If you do not see a standard Polarization Beam Combiner/Splitter that meets your needs, we welcome the opportunity to review your desired specification and quote a custom Polarization Beam Combiner/Splitter. Requests for custom fiber pigtails, different wavelengths and handling power of operation or other specific needs will be readily addressed.

Polarization Beam Combiner / Splitter

Visit the DK Photonics Store

Specifications

Splitting Ratio: Other
Central Wavelength: 1064 nm
Power Handling: > 1W
Return Loss: 50 dB
Max. Power Handling: 0.5, 1, 2, 3, 5, 10 W
Min. Extinction Ratio: 22 dB
Max. Insertion Loss: 0.8 dB
Typical Insertion Loss: 0.60 dB

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Dual Functionality: Operates both as a polarization beam combiner and splitter, allowing for versatile integration in optical systems.​
  • Low Insertion Loss: Typical insertion loss of 0.6 dB, ensuring minimal signal attenuation.​
  • High Extinction Ratio: Minimum extinction ratio of 22 dB, providing effective separation of polarization states.​
  • High Return Loss: Return loss greater than 50 dB, minimizing back reflections and enhancing signal integrity.​
  • High Power Handling: Capable of handling optical power levels up to 10 W, suitable for high-power applications.​
  • Wide Operating Wavelength Range: Supports central wavelengths of 1310 nm, 1480 nm, and 1550 nm, accommodating various system requirements.​
  • Compact and Robust Design: Features a rugged stainless steel package for high optical performance and stability.​
  • Customization Options: Available with various fiber types, connector options, and power handling capabilities to meet specific application needs.​

    These features make the Polarization Beam Combiner/Splitter an ideal choice for applications such as polarization division multiplexing, pump combining in optical amplifiers, and other advanced photonic systems.

Applications

  • High Power Fiber Lasers and Amplifiers
    Ideal for combining or splitting polarized beams in high power fiber laser systems, enabling efficient power scaling and beam quality management.
  • Coherent Optical Communication Systems
    Used in advanced telecommunication networks for polarization multiplexing/demultiplexing, supporting higher data rates and improved signal integrity.
  • Optical Sensing and Measurement
    Essential in fiber optic sensor systems, including interferometric and distributed sensing, where polarization control is critical for accuracy and sensitivity.
  • Quantum Optics and Quantum Communication
    Facilitates the manipulation and analysis of polarization states in quantum key distribution (QKD) and other quantum information applications.
  • Polarization Mode Dispersion (PMD) Compensation
    Used in PMD compensators to manage and correct polarization effects in high-speed optical transmission systems.
  • Test and Measurement Equipment
    Integrated into polarization analysis setups, optical spectrum analyzers, and other laboratory instruments for precise polarization control and measurement.
  • Laser Material Processing
    Supports applications such as micromachining, cutting, and welding where polarization control enhances process efficiency and quality.
  • Biomedical Imaging and Diagnostics
    Enables polarization-sensitive optical coherence tomography (OCT) and other imaging modalities for enhanced tissue characterization.
  • Optical Coherence Tomography (OCT)
    Used to manage and analyze polarization states in OCT systems, improving image contrast and diagnostic capabilities.
  • Research and Development
    Widely used in R&D environments for experiments requiring precise polarization management, such as nonlinear optics and photonic device testing.

Frequently Asked Questions

What is a 1064nm Polarization Beam Combiner/Splitter?
A 1064nm Polarization Beam Combiner/Splitter is a fiber optic device designed to either combine two polarized light beams from separate input fibers into a single output fiber or split a single input beam into two output fibers with orthogonal polarization states. It is optimized for operation at the 1064nm wavelength and is commonly used in high-power fiber lasers, optical sensor systems, and coherent telecommunication systems.
What are the key features of the DK Photonics 1064nm Polarization Beam Combiner/Splitter?
The DK Photonics 1064nm Polarization Beam Combiner/Splitter features low insertion loss, high extinction ratio, a compact in-line package, and high stability and reliability. It is available in various configurations to meet different power handling and wavelength requirements.
What applications are suitable for the 1064nm Polarization Beam Combiner/Splitter?
This device is ideal for use in polarization multiplexing/demultiplexing, high-power fiber laser systems, optical sensor systems, coherent telecommunication systems, and polarization mode dispersion compensators.
How does the 1064nm Polarization Beam Combiner/Splitter work?
The device can function as a combiner by merging two polarized beams from separate input fibers into one output fiber, or as a splitter by dividing a single input beam into two output fibers with orthogonal polarization. It supports various routing options and fiber types, including PM-to-SM and PM-to-PM configurations.
What power levels and wavelengths can the DK Photonics Polarization Beam Combiner/Splitter handle?
DK Photonics offers polarization beam combiners/splitters that can handle optical powers ranging from 300mW up to 10W or more upon request. The devices are available for center operating wavelengths from 480nm to 2050nm, with custom options available for specific requirements.
Can I request a custom Polarization Beam Combiner/Splitter from DK Photonics?
Yes, DK Photonics welcomes custom orders for polarization beam combiners/splitters. You can request specific fiber pigtails, different operating wavelengths, higher power handling, or other unique specifications to suit your application.
What should I consider regarding the package dimensions of the 1064nm Polarization Beam Combiner/Splitter?
Due to ongoing design improvements, the package size of the 1064nm Polarization Beam Combiner/Splitter may change. If you have special requirements for the package dimensions, it is recommended to contact DK Photonics directly for confirmation.

Got more questions? Use the inquiry form to ask the supplier directly.
