(6+1) × 1/(18+1) ×1 Fiber Pump Signal Combiner
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2022
Description
(6+1)×1/(18+1)×1 fiber pump signal combiner features high pump efficiency, low insert loss, cost-effective, stable and reliable. This combiner can be integrated into medium and high power fiber laser, fiber amplifier, and R&D test equipment.

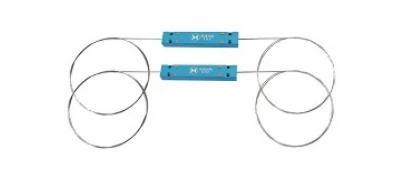

(6+1) × 1/(18+1) ×1 Fiber Pump Signal Combiner
Specifications |
|
|---|---|
| Splitting Ratio: | 50/50 |
| Central Wavelength: | 800 nm |
| Power Handling: | > 100W |
| Return Loss: | 45 dB |
| Pump Wavelength: | 800～1000nm |
| Signal Wavelength: | 1030～1080nm / 1450～1600nm |
| Signal Fiber(input): | X/125 or X/250 or 20/400 |
| Pump Fiber(input): | 105/125 or 200/220 0.15NA / 0.22NA |
| Output Fiber: | Y/125 or Y/250 or 20/400 |
| Signal Insert Loss: | <0.7dB |
| Return Loss: | >45dB |
Features
- High Pump Efficiency: Achieve pump efficiencies of over 90%, 93%, and 95% depending on configuration.
- Low Insertion Loss: Designed to maintain signal integrity with insertion loss less than 0.7dB.
- Versatile Wavelength Range: Supports pump wavelengths from 800 to 1000nm and signal wavelengths from 1030 to 1080nm / 1450 to 1600nm.
- High Power Handling: Capable of handling maximum power of 100W per single port, with options for 200W.
- Customizable Laser Beam: Laser beam quality (M²) can be customized to meet specific needs.
- Compact Packaging: Available in multiple package sizes: Φ4×60mm, 70×12×8mm, and 100×15×10mm.
- Wide Operating Temperature Range: Operates efficiently between 0℃ to +75℃ with a storage temperature range of -40℃ to +85℃.
- Flexible Configuration Options: Multiple configuration options for port types, operating wavelengths, pump modes, and fiber types.
- Stable and Reliable: Engineered for integration into medium and high power fiber lasers, amplifiers, and R&D test equipment.
Applications
- High Power Fiber Lasers: The combiner can be integrated into medium and high power fiber lasers due to its high pump efficiency and low insertion loss.
- Fiber Amplifiers: Suitable for use in fiber amplifiers, where stable and reliable signal transmission is crucial.
- R&D Test Equipment: Ideal for research and development test equipment that requires precise and efficient signal combination.
- Telecommunications: Can be used in telecommunications applications where high efficiency and low loss are essential.
- Medical Lasers: Applicable in medical laser systems requiring reliable and efficient fiber optic components.
- Industrial Processing: Suitable for industrial laser processing tasks that demand robust and efficient fiber optic solutions.
Frequently Asked Questions
The combiner features high pump efficiency, low insert loss, cost-effectiveness, stability, and reliability.
The combiner can be integrated into medium and high power fiber lasers, fiber amplifiers, and R&D test equipment.
The maximum power of a single port is 100W.
The operating temperature range is 0℃ to +75℃.
The available package sizes are PS1 (Aluminum box: 70×12×8mm), PS2 (Aluminum box: 100×15×10mm), and PS3 (Steel tube: Φ4×60mm).
