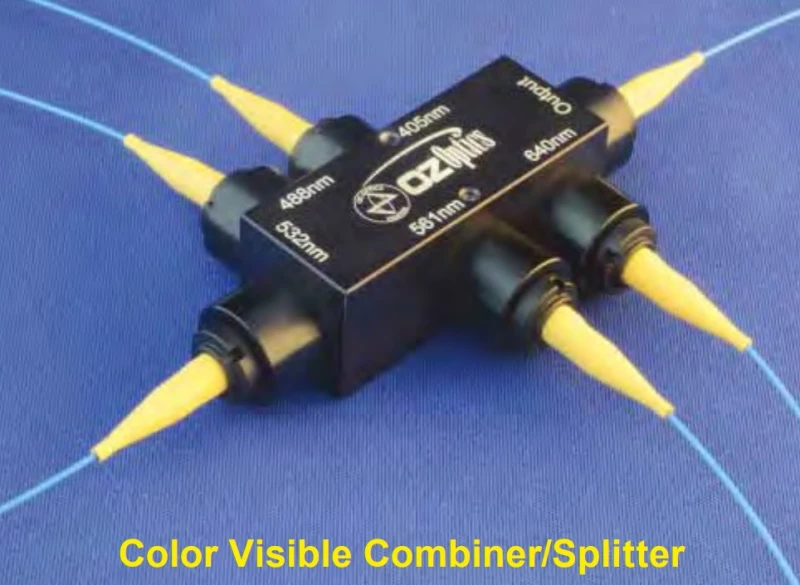

Thumbnail of Laser Beam Combiners and Delivery Systems for Three to Five Visible Wavelengths photo 1

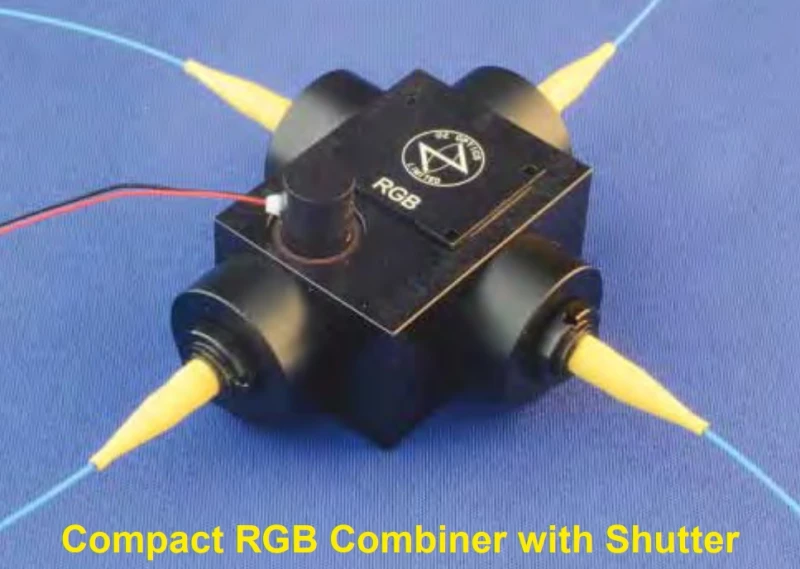

Thumbnail of Laser Beam Combiners and Delivery Systems for Three to Five Visible Wavelengths photo 2

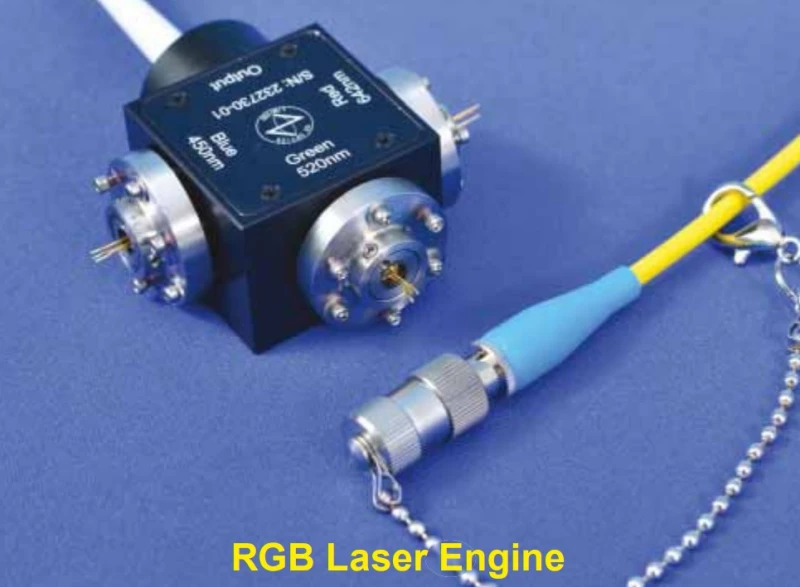

Thumbnail of Laser Beam Combiners and Delivery Systems for Three to Five Visible Wavelengths photo 3

Description

The DTS0105 RGB Laser Engine and Combiner from OZ Optics is a versatile and robust solution designed for applications requiring the precise combination of multiple visible laser wavelengths. Engineered with adaptability and compactness in mind, this laser engine integrates three to five laser diodes into a single, solid optical assembly. Utilizing OZ Optics’ patented tilt alignment system and a symmetric glass cube design, the device ensures all combined laser beams share identical optical path lengths. This results in balanced spot sizes and minimal beam divergence, which are critical for high-performance imaging and display technologies.

Unlike traditional assemblies that rely on discrete WDM plates, the DTS0105 employs a single optical element to direct and combine the beams. This approach not only enhances mechanical ruggedness but also improves spectral and power stability, making it suitable for demanding environments and long-term operation. The system is capable of efficiently merging up to five visible wavelengths, typically within the 390 nm to 710 nm range, using custom optics and dichroic filters. This flexibility allows users to create full-color outputs, including white light sources, by varying the intensity of red, green, and blue channels.

The DTS0105 is available in configurations supporting singlemode, polarization-maintaining, or multimode fiber delivery, catering to a wide range of optical setups. Its modular design allows each laser diode to be independently changed or upgraded, ensuring future-proofing and easy maintenance. The compact footprint makes it ideal for integration into space-constrained systems, while its high power handling and low insertion/return losses ensure efficient and reliable performance.

This laser engine and combiner is particularly well-suited for advanced applications such as virtual and augmented reality devices, white light displays, confocal and fluorescence microscopy, laser spectroscopy, color holography, imaging systems, and flow cytometry. Its ability to deliver stable, high-quality, multi-wavelength laser light through a single fiber port makes it a key component in the development of next-generation photonic devices and imaging solutions.

Laser Beam Combiners and Delivery Systems for Three to Five Visible Wavelengths

Visit the OZ Optics Store

Specifications

Splitting Ratio: Other
Central Wavelength: 400 nm
Power Handling: > 100mW
Return Loss: 40 dB
Number Of Laser Diodes: 3 to 5
Wavelength Range: 390 nm to 710 nm
Laser Diode Package Compatibility: Any size of TO-can style
Fiber Types: Multimode, singlemode, and polarization maintaining
Output Port: Single common output port
Power Handling: High
Insertion Loss: Low
Return Loss: Low
Footprint: Small and compact

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Combines Up to Five Visible Wavelengths: Efficiently merges three to five laser beams within the 390 nm to 710 nm range, enabling full-color or white light laser output.
  • Patented Tilt Alignment System: Utilizes OZ Optics’ proprietary technology for precise beam alignment, ensuring excellent power and spectral stability.
  • Compact and Robust Design: Features a small footprint and rugged glass cube construction for enhanced durability and easy integration into space-constrained systems.
  • Flexible Laser Diode Compatibility: Accepts any size of TO-can style laser diodes, allowing for easy upgrades or replacements of individual diodes.
  • Balanced Optical Path Lengths: Ensures identical path lengths for all combined beams, resulting in uniform spot sizes and low beam divergence—ideal for high-precision applications.
  • Multiple Fiber Options: Available in multimode, singlemode, and polarization maintaining fiber versions to suit diverse application requirements.
  • Low Insertion and Return Losses: Engineered for high optical efficiency, minimizing signal loss and maximizing output power.
  • High Power Handling Capability: Designed to support high-power laser applications without compromising performance or reliability.
  • Customizable Output: Offered as a pigtailed passive device or as a low-profile RGB laser engine, with optional built-in laser diode drivers for turnkey operation.
  • Key Enabler for Advanced Technologies: Essential component for developing surface relief and holographic waveguides, as well as cutting-edge imaging and display systems.
  • Wide Range of Applications: Ideal for use in virtual and augmented reality devices, white light displays, confocal and fluorescence microscopy, laser spectroscopy, color holography, imaging systems, and flow cytometry.
  • Custom Design Support: OZ Optics offers tailored solutions to meet specific application needs, with expert engineering and support for unique requirements.

Applications

  • Virtual Reality (VR) and Augmented Reality (AR) Devices
    Enables full-color, high-brightness light sources for immersive VR/AR headsets and smart glasses, supporting realistic image rendering and enhanced user experiences.
  • White Light Displays
    Combines multiple visible wavelengths to create tunable white light sources for advanced display technologies, projection systems, and digital signage.
  • Confocal Microscopy
    Provides stable, multi-wavelength laser excitation for high-resolution imaging and precise optical sectioning in biological and material sciences.
  • Laser Spectroscopy
    Offers flexible wavelength selection and high spectral stability for analytical instruments, enabling accurate material characterization and chemical analysis.
  • Fluorescence Microscopy
    Delivers multiple excitation wavelengths for simultaneous multi-color fluorescence imaging, supporting advanced research in cell biology and medical diagnostics.
  • Color Holography and Imaging Systems
    Facilitates the generation of full-color holograms and high-fidelity imaging by combining red, green, and blue laser sources into a single output.
  • Flow Cytometry
    Provides multi-wavelength laser excitation for the detection and analysis of multiple fluorescent markers in biomedical and clinical research.
  • Optical Data Storage and Retrieval
    Supports multi-wavelength reading and writing in advanced optical storage systems, increasing data density and retrieval accuracy.
  • Laser-Based Printing and Lithography
    Enables precise, multi-color laser patterning for high-resolution printing, microfabrication, and photolithography applications.
  • Surface Relief and Holographic Waveguide Development
    Acts as a key component in the fabrication and testing of advanced optical waveguides for AR displays and photonic devices.
  • Biomedical Imaging and Diagnostics
    Provides customizable, multi-wavelength illumination for advanced imaging modalities and diagnostic tools in medical research and clinical settings.
  • Laser Light Shows and Entertainment
    Combines multiple visible lasers to create vibrant, full-color effects for stage lighting, laser shows, and entertainment venues.
  • Metrology and Calibration
    Supplies stable, multi-wavelength laser sources for precise calibration of optical instruments and metrology equipment.
  • Scientific Research and Development
    Offers a versatile platform for experimental setups requiring tunable, multi-wavelength laser sources in physics, chemistry, and engineering research.

Frequently Asked Questions

What is the OZ Optics RGB Laser Engine and Combiner?
The OZ Optics RGB Laser Engine and Combiner is a compact, robust device designed to combine three to five visible laser wavelengths (from 390 nm to 710 nm) into a single fiber output. It utilizes a patented tilt alignment system and a solid glass cube to ensure excellent power and spectral stability, making it ideal for applications requiring full-color laser light.
What applications are suitable for the OZ Optics RGB Laser Engine?
This laser engine is suitable for a wide range of applications, including virtual reality (VR) and augmented reality (AR) devices, white light displays, confocal and fluorescence microscopy, laser spectroscopy, color holography, imaging systems, and flow cytometry.
How does the RGB Laser Combiner achieve color mixing?
The combiner uses custom optics and dichroic filters to efficiently merge red, green, and blue laser beams (and optionally up to five wavelengths) into a single output port. By varying the intensity of each laser, it can reproduce virtually any color, including white light, for advanced imaging and display applications.
What fiber types are available for the RGB Laser Engine?
OZ Optics offers the RGB Laser Engine in multimode, singlemode, and polarization maintaining fiber versions, allowing users to select the optimal configuration for their specific application requirements.
Can the laser diodes in the RGB Laser Engine be upgraded or replaced?
Yes, each laser diode in the engine can be changed or upgraded independently, providing flexibility for maintenance, performance upgrades, or wavelength customization.
What are the key features of the OZ Optics RGB Laser Engine?
Key features include the ability to combine up to five visible wavelengths, compatibility with any size TO-can style laser diodes, a compact footprint, high power handling, low insertion and return losses, and suitability for integration into surface relief and holographic waveguides.
Does OZ Optics offer custom versions of the RGB Laser Engine?
Yes, OZ Optics welcomes custom orders for the RGB Laser Engine and Combiner. Customization may affect pricing and lead times, but allows the product to be tailored to specific application needs, including wavelength selection, fiber type, and integration options.
