Description
The 793/2000 nm High Power (6+1)×1 Pump & Signal Combiner from the HPPC Series is an advanced optical device designed to efficiently combine the power from up to 6 multimode pump diodes and a single signal laser into a double cladding output fiber. Capable of handling more than 1 kW of combined power, this combiner is ideal for high-demand applications in various fields.
Featuring high coupling efficiency and utilizing a proprietary fiber tapering technique, the combiner ensures optimal performance with minimal signal loss. Available with custom configurations, this combiner meets the specific requirements of diverse applications, making it a versatile choice for professionals in the fiber laser and amplifier industries.

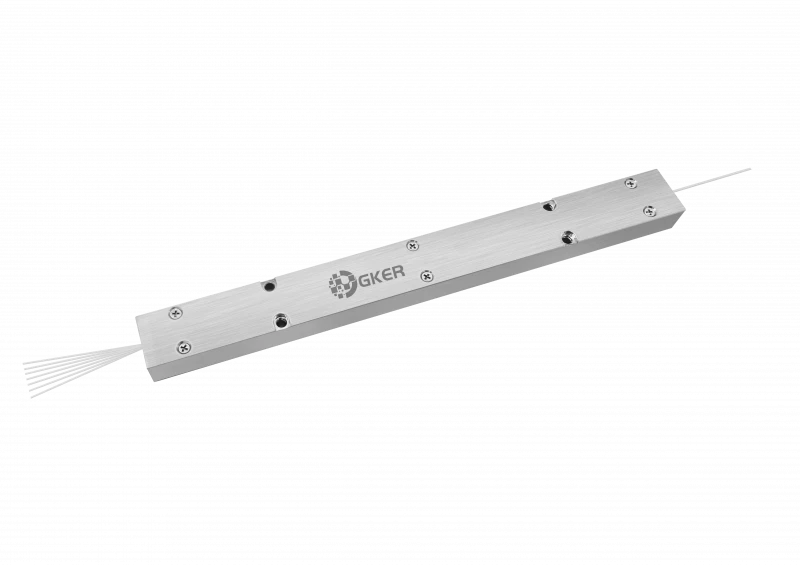

793/2000 nm High Power (6+1)×1 Pump and Signal Combiner
Specifications
| Splitting Ratio: | Other |
|---|---|
| Central Wavelength: | 1000 nm |
| Power Handling: | > 100W |
| Return Loss: | 50 dB |
| Product Type: | (6+1)×1 |
| Pump Wavelength Range: | 793 nm |
| Signal Wavelength Range: | 2000 nm |
| Fiber Type For Input (Pump Channel): | Nufern FUD-3986, MM-S200/220-22FA |
| Fiber Type For Input (Signal Channel): | Nufern LMA-GDF-25/400-09M |
| Fiber Type For Output: | Nufern LMA-GDF-25/400-09M |
| Max. Input Pump Power: | 6 × 140 W |
| Max. Input Signal Power: | 10 W |
| Signal Channel Insertion Loss: | <1 % |
| Typ. Pump Efficiency: | 98 % |
| Min. Pump Efficiency: | 96 % |
Download Data Sheet
Features
- High Power Handling: Supports over 1 kW of combined power, making it suitable for high-demand applications
- High Coupling Efficiency: Guarantees minimal signal loss, ensuring efficient power transfer
- Wide Wavelength Range: Combines pump diodes at 793 nm with a signal laser at 2000 nm for versatile application compatibility
- Proprietary Fiber Tapering Technique: Enhances performance and reliability by reducing signal degradation
- Custom Configurations Available: Tailored solutions to meet specific application requirements and ensure optimal performance
- Robust Construction: Designed to withstand high power and temperature variations, ensuring long-term durability
- Easy Integration: Compatible with various fiber types, facilitating seamless integration into existing systems
Applications
- 2000 nm High Power Fiber Laser: Ideal for industrial applications requiring high power and precision, such as material processing and cutting
- 2000 nm High Power Fiber Amplifier: Suitable for amplifying high-power signals in fiber optics systems, enhancing signal strength and clarity
- Medical Equipment: Provides high precision and reliability for medical laser applications, including surgical procedures and diagnostic tools
- Scientific Research: Supports high-power laser experiments and studies, enabling advanced research and development
- Industrial Processing: Effective in applications like cutting, welding, and marking, where high power and precision are crucial
- Telecommunications: Enhances signal strength and quality in long-distance communication systems
Frequently Asked Questions
What is the maximum power handling capacity of the 793/2000 nm High Power Pump & Signal Combiner?
The combiner can handle over 1 kW of combined power, making it suitable for high-demand applications requiring significant power levels.
What wavelengths does this combiner support?
The combiner supports pump wavelengths in the range of 793 nm and a signal wavelength of 2000 nm.
What are the typical applications for this pump and signal combiner?
Typical applications include: 2000 nm High Power Fiber Lasers; 2000 nm High Power Fiber Amplifiers; Medical equipment; Scientific research; Industrial processing (cutting, welding, marking); Telecommunications
What types of fibers are compatible with this combiner?
The combiner is compatible with the following fiber types: For pump input: Nufern FUD-3986, MM-S200/220-22FA; For signal input and output: Nufern LMA-GDF-25/400-09M
What is the typical and minimum pump efficiency of this combiner?
The typical pump efficiency is 98%, and the minimum pump efficiency is 96%, ensuring high performance and minimal power loss.
What is the signal channel insertion loss?
The signal channel insertion loss is less than 1 dB, ensuring minimal signal degradation during transmission.
What are the dimensions of the combiner package?
The package dimensions are 100 mm (L) × 15 mm (W) × 10 mm (H), making it compact and easy to integrate into various systems.
What is the operating temperature range for this product?
The operating temperature range is from 0°C to +50°C, and active cooling is required to maintain optimal performance.
What is the storage temperature range?
The storage temperature range is from -40°C to +85°C, ensuring safe storage conditions.
Can I get custom configurations for this combiner?
Yes, custom configurations are available to meet specific application requirements. Please specify your needs when placing an order.
