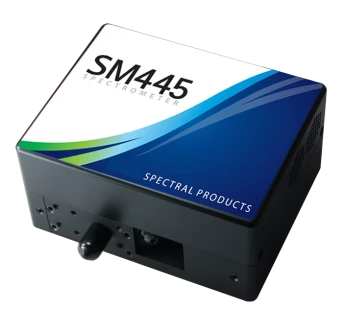

SM445 Preconfigured High Resolution CCD Spectrometer
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2020
Description
The SM445 is a cutting-edge, compact CCD spectrometer designed for seamless integration with a PC. Its innovative design is based on SP's specialized optical bench, making it an ideal choice for a variety of spectral and color measurement applications. Whether you're working on high dynamic range projects or other demanding tasks, the SM445 is engineered to deliver exceptional performance. It can accept light directly through its built-in slit or via an optical fiber, offering flexibility in how it can be used.
The robust aluminum housing ensures stable operation across a wide range of temperatures, making it a reliable tool in diverse environments. One of the standout features of the SM445 is its use of the Toshiba TCD1304 sensor arrays, which are known for their sensitivity and stability. This is further enhanced by a unique UV coating process and customized order sorting filters, allowing for a measurement window of up to 850nm, ranging from 200nm to 1050nm. This broad range, combined with a high pixel count, makes the SM445 particularly suitable for applications that demand higher resolution. The spectrometer's compact and modular design ensures it can be easily integrated into various setups, making it a versatile tool for researchers and professionals alike.
The SM445 connects via a USB 1.1/2.0 compatible interface, supporting a 16-bit extended dynamic range. This interface can accommodate multichannel configurations of up to eight channels, enabling higher resolution across a wide range or the creation of a dual spectrometer system for simultaneous measurement and reference. Additionally, the spectrometer benefits from a new UV-enhancing coating that significantly boosts UV sensitivity below 450nm, improving signal sensitivity by approximately 20-50% below 500nm. Software support is comprehensive, including an SDK and DLLs for custom application development, alongside the SM32Pro Windows-based spectral acquisition and analysis software, ensuring users have all the tools they need for effective data acquisition and analysis.
SM445 Preconfigured High Resolution CCD Spectrometer
Specifications |
|
|---|---|
| Wavelength Range (reflectance): | 200 – 1050 nm |
| Resolution: | 10 nm |
| Minimum Scan Time: | 0.01 sec |
| Dimensions: | 90 x 70 x 44mm |
| Weight: | 0.4kg |
| Detector: | Toshiba TCD1304 (UV Enhanced Coated) |
| Pixels: | 3648 (Effective) |
| Pixel Size: | 8 um X 200 um |
| Well Depth: | 100,000 e- |
| Signal To Noise Ratio: | > 300 : 1 |
| Stray Light: | <0.1% AVG. |
| Dark Noise RMS: | < 50 RMS counts in 16bit @ 35msec integration time |
Features
- Wide Spectral Range: Covers a range from 200nm to 1050nm, making it versatile for various applications.
- High Optical Resolution: Utilizes a 3K array CCD for enhanced resolution.
- Extremely Low Light Exposure Time: Capable of exposure times as low as 10 microseconds.
- Compact & Modular Design: Ideal for high-speed data acquisition applications.
- Durable Construction: Enclosed in a stable aluminum housing for reliable operation across a wide temperature range.
- Enhanced UV Sensitivity: Features a new UV enhancing coating for improved sensitivity below 500nm by 20-50%.
- USB Interface: Compatible with USB 1.1/2.0, supporting multichannel configurations up to 8 channels.
- Software Support: Includes SDK and DLLs for application development, plus SM32Pro Windows-based spectral acquisition and analysis software.
- Physical Dimensions: Compact size of 3.54 x 2.76 x 1.73 inches (90 x 70 x 44mm) and lightweight at 0.88lbs (0.4kg).
- Detector Specifications: Equipped with a Toshiba TCD1304 UV Enhanced Coated detector, with a pixel size of 8 um x 200 um and a well depth of 100,000 e-.
- Optical Specifications: Offers a wavelength range of 200-1050nm, with customizable ranges and an optical resolution of 0.10-10nm depending on configuration.
- High Signal to Noise Ratio: Greater than 300:1, ensuring clear and accurate measurements.
- Low Stray Light: Less than 0.1% average, minimizing interference in measurements.
Applications
- Color Measurement: Ideal for applications requiring precise color analysis and spectral measurements.
- High Dynamic Range Applications: Suitable for capturing a wide range of light intensities with high resolution.
- UV-VIS-NIR Spectroscopy: Covers a wide spectral range from 200nm to 1050nm, making it versatile for various spectroscopy needs.
- Environmental Monitoring: Useful for analyzing environmental samples and monitoring changes in spectral properties.
- Biomedical Research: Can be used in medical diagnostics and research for analyzing biological samples.
- Industrial Quality Control: Ensures product quality by analyzing the spectral properties of materials.
- Research and Development: Supports R&D activities by providing detailed spectral data for analysis.
- Light Source Characterization: Measures and characterizes the spectral output of various light sources.
- Optical Component Testing: Evaluates the performance of optical components by analyzing their spectral response.
- Educational Purposes: A valuable tool for teaching and demonstrating principles of spectroscopy and optical analysis.
Frequently Asked Questions
The SM445 CCD Spectrometer is designed with a compact and modular design, and a durable aluminum housing that provides stable optical bench operation over a wide range of temperatures.
The SM445 CCD Spectrometer has an extremely low light exposure time of up to 10µsec.
The SM445 CCD Spectrometer has a wide spectral range of up to 200-1050nm.
The standard sensor arrays used in the SM445 CCD Spectrometer are the Toshiba TCD1304.
The SM445 CCD Spectrometer comes with an SDK and DLLs for dedicated applications development, as well as the SM32Pro Windows-based spectral acquisition and analysis software.
