Description
VS-7000-CCD is the latest evolution of the low cost, high performance family of mini-spectrometers from HORIBA Scientific. This VS-7000 system for industrial applications uses a modified VS70 optical engine which is optimized for the UV-VIS spectral range.Ideal for industrial low light applications such as fluorescence, emission, absorbance, and reflectance. Outperforms current generation minispectrometers based on front illuminated Sony or Toshiba CCDs, or low-cost backilluminated CCDs.

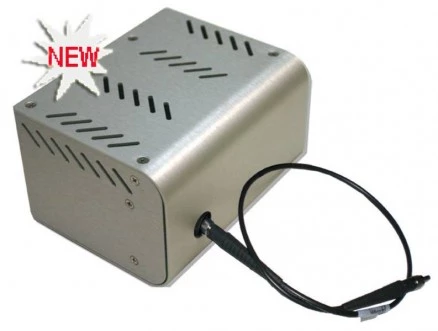

VS-7000-CCD Spectrometer
Specifications
| Monochromator Type: | Not Specified |
|---|---|
| Effective Focal Length: | Not Specified |
| Diffraction Grating: | Not Specified |
| Grating Blaze Wavelength: | 250 nm |
| Spectral Range: | 200 – 1050 nm |
| Linear Dispersion (Avg): | Not Specified |
| Spectral Resolution (Avg): | 0.65 nm |
Download Data Sheet
Features
High readout speed
High QE CCD
Ultra-low stray light
3 spectral coverage options:
200-860 nm
380-750 nm
200-1050 nm
Applications
OEM application
Scientific and industrial
Frequently Asked Questions
What is the VS-7000-CCD spectrometer used for?
The VS-7000-CCD spectrometer is ideal for industrial low light applications such as fluorescence, emission, absorbance, and reflectance.
What are the spectral coverage options for the VS-7000-CCD spectrometer?
The VS-7000-CCD spectrometer has three spectral coverage options: 200-860 nm, 380-750 nm, and 200-1050 nm.
What is the QE of the back-illuminated linear CCD in the VS-7000-CCD spectrometer?
The QE of the back-illuminated linear CCD in the VS-7000-CCD spectrometer is 63% at 250 nm, 70% at 650 nm, and 55% at 850 nm.
What is the numerical aperture of the VS-7000-CCD spectrometer?
The numerical aperture of the VS-7000-CCD spectrometer is f/2.8.
What is the spectral resolution of the VS-7000-CCD spectrometer?
The spectral resolution of the VS-7000-CCD spectrometer is 2.7 nm with a 75 μm slit and 2048 pixels.
