Description
The Shamrock 163 stands as a pinnacle of compact, research-grade Czerny-Turner spectrographs, offering an unparalleled blend of precision and versatility. With its 163 mm focal length and a high F/3.6 aperture, it is meticulously designed to cater to a broad spectrum of general benchtop spectroscopy measurements. The spectrograph's compact size does not compromise its capabilities, making it a valuable addition to any laboratory setting where space is at a premium, yet performance cannot be sacrificed.
One of the standout features of the Shamrock 163 is its seamless adaptability, thanks to a wide array of interchangeable gratings, slits, and light coupling accessories. This flexibility allows for precise customization to meet specific experimental needs, ensuring optimal performance across various spectroscopy applications. The ease of integration and portability of the Shamrock 163 further enhance its appeal, allowing it to be effortlessly incorporated into existing setups or transported between different research environments.
Designed with both horizontal and vertical mounting positions, the Shamrock 163 ensures robust performance regardless of its orientation. This adaptability is complemented by its imaging-configurable platform, which supports multi-track spectroscopy. Whether you are conducting complex spectroscopic analyses or routine measurements, the Shamrock 163 delivers reliable, high-resolution results with its precision locking mechanism for gratings and a variety of fixed slit options.
In summary, the Shamrock 163 is not just a spectrograph; it is a comprehensive solution for researchers seeking a compact yet powerful tool for their spectroscopy needs. Its innovative design and versatile configuration options make it an indispensable asset for any laboratory focused on achieving precise and reliable spectroscopic data.
Shamrock 163 Spectrograph - 300lpmm 1700nm Blaze - SR1-GRT-0300-1700
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Effective Focal Length: | 163 mm |
| Diffraction Grating: | 300 lines/mm |
| Grating Blaze Wavelength: | 1700 nm |
| Spectral Range: | 900 – 2300 nm |
| Linear Dispersion (Avg): | 17.42 nm/mm |
| Spectral Resolution (Avg): | 1.05 nm |
Features
- Compact & Rugged Design: Offers horizontal and vertical mounting positions for enhanced portability and ease of integration.
- Imaging-Configurable Platform: Supports multi-track spectroscopy with lens-based accessories that optimize system performance for low cross-talk and multi-leg fiber signal simultaneous acquisition.
- Interchangeable Gratings: Features a simple precision locking mechanism for seamless upgradability, allowing a wide range of gratings to be used.
- Variety of Fixed Slits: Includes interchangeable laser-cut precision slits with widths ranging from 10 µm to 200 μm for flexible applications.
- Versatile Light Coupling Interfaces: Offers multiple options including fiber-optics and C-mount microscope couplers for diverse usage scenarios.
- Calibrated Micrometer Drive: Allows for simple and rapid wavelength selection, enhancing user convenience.
- High Resolution: Achieves 0.25 nm resolution at 1200 l/mm @ 500 nm and 0.12 nm at 2400 l/mm @ 300 nm when used with Newton DU940 CCD.
- Compact Size & Lightweight: Dimensions of 198 x 216 x 96 mm (7.8 x 8.5 x 3.8 in) and weighs only 3.5 kg (7.71 lb), making it easy to handle and integrate into laboratory setups.

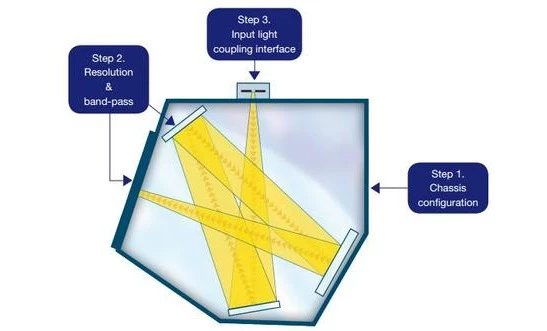

- Customizable System Configuration: Step-by-step customization options including chassis configuration, resolution and band-pass, input light coupling interface, and software interface.
Applications
- Research and Development: Ideal for general benchtop spectroscopy measurements due to its compact design and high performance.
- Material Analysis: Capable of multi-track spectroscopy with low cross-talk, making it suitable for analyzing complex materials.
- Environmental Monitoring: Portable and easy to integrate, allowing for on-site monitoring and analysis of environmental samples.
- Quality Control in Manufacturing: Interchangeable gratings and slits enable precise control over spectral resolution, ideal for quality assurance processes.
- Biochemical Analysis: Supports a variety of light coupling interfaces, including fibre-optics and C-mount microscope couplers, for diverse biochemical applications.
- Educational Purposes: Compact and versatile design makes it an excellent tool for teaching spectroscopy principles in academic settings.
- Raman Spectroscopy: Suitable for monitoring chemical reactions and identifying molecular structures through Raman shift analysis.
Frequently Asked Questions
The Shamrock 163 has a compact and rugged design, is portable and easy to integrate, has a wide range of interchangeable gratings, fixed slits, and light coupling interfaces, and has a calibrated micrometer drive for wavelength selection.
The ordering information for the Shamrock 163 includes the model description, such as the base unit for spectrally optimized configuration or the base unit for spectrally optimized configuration with protected silver coated optics.
To customize the Shamrock 163, you need to select the appropriate chassis configuration, gratings, detector, input light coupling interface, and software interface.
The Shamrock 163 is a compact research-grade Czerny-Turner spectograph used for general benchtop spectroscopy measurements.
The resolution of the Shamrock 163 with the Newton DU940 CCD is 1200 l/mm at 500 nm and 2400 l/mm at 300 nm.
