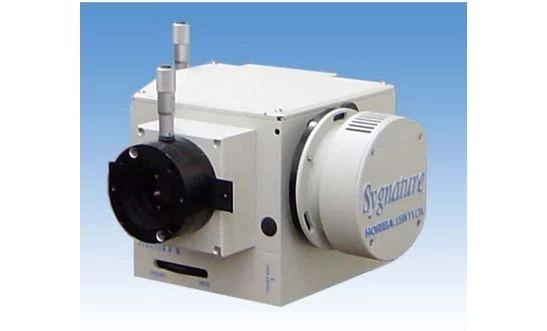

MicroHR 140mm Imaging Monochromator
Description
Available as an imaging spectrograph or scanning monochromator, the new automated MicroHR allows users to make rapid and precise measurements, offering a degree of versatility not found in comparable focal length spectrometers. Equipped with an interchangeable dual
grating turret, the automated MicroHR operates in a wavelength range that extends from 150 nm to 15 µm. As a spectrograph, it features a fixed or micrometer entrance slit with our unique Quick-Align CCD adapter. The addition of a side exit port increases versatility, allowing for dual detector operation; collect data from a CCD in the visible region then collect data in the IR using a single channel detector. The convenience of a USB interface allows users to scan and acquire data through a single computer connection. A rugged, high throughput optical system, the MicroHR is an ideal, affordable tool for a wide range of spectroscopic applications.
MicroHR 140mm Imaging Monochromator
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Effective Focal Length: | 140 mm |
| Diffraction Grating: | 1200 lines/mm |
| Grating Blaze Wavelength: | 400 nm |
| Spectral Range: | 150-15000nm |
| Linear Dispersion (Avg): | 5.25 nm/mm |
| Spectral Resolution (Avg): | 0.25 nm |
Features
Compact and lightweight
Czerny-Turner optical layout
Automated, interchangeable dual grating turret
Fast, high precision drive
Toroidal collimating mirror
Pre-aligned CCD mount
Universal accessory mount
Works in all positions
Optional side exit port
Optional internal filter wheel
USB 2.0 Interface
Applications
Spectrometry
Spectroscopy
Biomedical applications
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The benefits of the MicroHR 140mm Imaging Monochromator include space-saving, easy integration into optical systems, optimal performance and minimal stray light, easy switching of wavelength range and upgrade in the field, rapid and accurate measurements, best imaging quality, easy CCD installation without adjustment, compatibility with existing HORIBA Jobin Yvon accessories and C-mount, versatility and portability, dual detector mounting capability, convenient use with other accessories, and plug and play computer interface.
The MicroHR 140mm Imaging Monochromator is compact and lightweight, has a Czerny-Turner optical layout, an automated, interchangeable dual grating turret, a fast, high precision drive, a toroidal collimating mirror, a pre-aligned CCD mount, a universal accessory mount, works in all positions, has an optional side exit port, an optional internal filter wheel, and a USB 2.0 interface.
The specifications of the MicroHR 140mm Imaging Monochromator include a focal length of 140 mm, an entrance aperture ratio of f/3.88, a grating size of 32 mm x 32 mm, an interchangeable dual grating turret, an image magnification at exit slit of 1.1, a scanning range of 0 nm to 1500 nm mechanical range, and a drive speed (increasing wavelength).
The MicroHR 140mm Imaging Monochromator is an automated instrument that allows users to make rapid and precise measurements in a wavelength range that extends from 150 nm to 15 µm.
The applications of the MicroHR 140mm Imaging Monochromator include spectrometry, spectroscopy, and biomedical applications.
