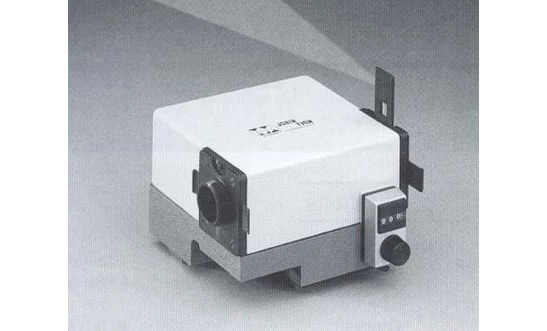

H10 Vis Monochromator
Description
The H10 series Monochromators are built around an aberration-corrected concave holographic diffraction grating. This element plays a triple role: collimating, dispersing and focusing functions.
This optical design minimizes the number of optics for a higher throughput and offers a unique On-Axis entrance/exit port configuration.
The H10 features High Spectral Purity: High stray light level rejection of 10-5 at 8 nm from 632.8 nm laser line with a 1200 gr/mm grating.
H10 Vis Monochromator
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Effective Focal Length: | 100 mm |
| Diffraction Grating: | 1200 lines/mm |
| Grating Blaze Wavelength: | 500 nm |
| Spectral Range: | 350-800nm |
| Linear Dispersion (Avg): | 8 nm/mm |
| Spectral Resolution (Avg): | 1 nm |
Features
Only Three internal optics
On-Axis port configuration
Fully Manual (Optional motorized drive)
Applications
In spite of its small size, the H10 monochromator offers performances equal to those of more sophisticated instruments.
The H10 monochromator is a versatile and low cost device that can be used in several applications such as lower resolution transmission/absorption and fluorescence or as a variable filter, for selecting a range of wavelengths from continuous light source.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2016
Frequently Asked Questions
The H10 series Monochromators are built around an aberration-corrected concave holographic diffraction grating that plays a triple role: collimating, dispersing, and focusing functions. This optical design minimizes the number of optics for a higher throughput and offers a unique On-Axis entrance/exit port configuration.
The H10 monochromator is a versatile and low-cost device that can be used in several applications such as lower resolution transmission/absorption and fluorescence or as a variable filter, for selecting a range of wavelengths from a continuous light source.
Yes, the H10 monochromator is extremely easy to use with a manual mechanical wavelength counter (motorization with RS232 or IEEE interface in option) and manual slits. Several interchangeable fixed width slit inserts are available.
The H10 Vis Monochromator is a compact 10 cm monochromator that offers performances equal to those of more sophisticated instruments.
The resolution of the H10 monochromator is typically 1nm at 500 nm with a 0.1 mm slit and a 1200 gr/mm grating.
