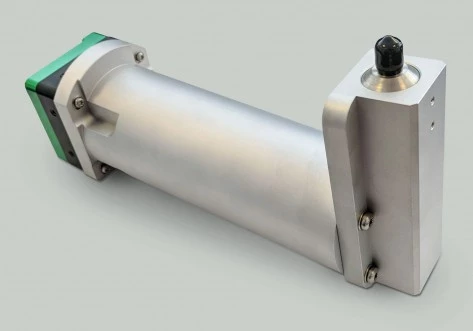

EAGLE OCT-S 810 – 900 nm OEM Spectrometer
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Denmark
-
Sold by:
-
On FindLight:
since 2018
Description
The Ibsen EAGLE OCT-S OEM Spectrometer is a compact, robust, and high-efficiency solution optimized for Spectral Domain Optical Coherence Tomography (SD-OCT) applications around 840 nm. Covering a wavelength range of 800–890 nm, the EAGLE OCT-S integrates Ibsen’s proprietary transmission grating technology to deliver exceptional optical throughput in a compact footprint.
The EOS-121 model features a 2048-pixel Teledyne E2V OctoPlus camera with tall 10 µm x 200 µm pixels, offering high sensitivity and rapid acquisition with a standard 70 kHz frame rate. Its robust athermal design ensures stability with minimal temperature drift (<0.002 nm/°C) and less than 5% resolution change across its operating temperature range of +5°C to +40°C.
Designed for OEM system integration, the EAGLE OCT-S offers flexible customization options including different wavelength ranges and camera configurations to suit specific instrument requirements. Its compact dimensions (113 x 228 x 60 mm) and CameraLink interface enable seamless integration into OCT systems for clinical and industrial imaging, providing reliable, high-resolution spectral performance.
EAGLE OCT-S 810 – 900 nm OEM Spectrometer
Specifications |
|
|---|---|
| Monochromator Type: | Not Specified |
| Spectral Range: | 810 – 900 nm |
| Spectral Resolution (Avg): | 0.05 nm |
Features
- High Optical Throughput: Designed for maximum efficiency, ensuring optimal performance for your SD-OCT applications.
- Compact Size: The EAGLE OCT-S is compact, making it ideal for OEM integration without compromising on functionality.
- Robust and Athermal Design: Built to withstand varying conditions while maintaining performance stability.
- Customizable Options: Tailor the spectrometer to your needs with multiple wavelength ranges and camera options.
- Modular Approach: Choose from a complete spectrometer, spectrograph, or spectrometer grating to fit your specific requirements.
- Wavelength Range: 800 – 890 nm, with other ranges available upon request.
- Numerical Aperture: 0.13 for enhanced light collection efficiency.
- Typical Resolution: 0.05 nm, providing precise spectral measurements.
- Camera: Equipped with a Teledyne E2V OctoPlus camera featuring 2048 pixels for high-quality imaging.
- Pixel Size: 10 mm x 200 mm, offering detailed spectral data.
- Interface: CameraLink for fast and reliable data transfer.
- Operating Temperature Range: +5 to +40 Degree C, ensuring performance in various environments.
- Temperature Stability: Temperature drift of <0.002 nm/Degree C and resolution change vs. temperature of <5%.
- Dimensions: 113 mm x 228 mm x 60 mm, including the camera, making it compact and easy to integrate.
Applications
- Spectral Domain OCT Imaging: Ideal for high-resolution OCT instruments operating around 840 nm.
- Biomedical Imaging Systems: Supports integration into OCT-based diagnostic devices.
- Industrial Inspection: Enables precise non-destructive testing and material inspection.
- OEM System Integration: Customizable for tailored performance in specialized optical systems.
Frequently Asked Questions
The EAGLE OCT-S 810 - 900 nm OEM Spectrometer is a compact, robust, and highly efficient spectrometer suited for OEM integration into Spectral Domain OCT instruments around 840 nm.
The EAGLE OCT-S 810 - 900 nm OEM Spectrometer has high optical throughput, a compact size, and a robust and athermal design. It is also customizable for multiple wavelength ranges and camera options.
The EAGLE OCT-S 810 - 900 nm OEM Spectrometer can be used in biomedical/medical, defense, environmental monitoring, light characterization, materials identification, scientific research, semiconductor, and other applications.
The typical resolution of the EAGLE OCT-S 810 - 900 nm OEM Spectrometer is 0.05 nm.
Yes, if the specifications do not match your requirements, Ibsen can customize an OEM spectrometer to meet your exact needs.
