PCX-R22.0-UVFS-22.0-CT6.0-AR653-AR653 IBS-Coated UV Fused Silica Plano-Convex Lens

Name: PCX-R22.0-UVFS-22.0-CT6.0-AR653-AR653 IBS-Coated UV Fused Silica Plano-Convex Lens
Brand: Optoman
Price: 195.00 USD
Availability: InStock

Description

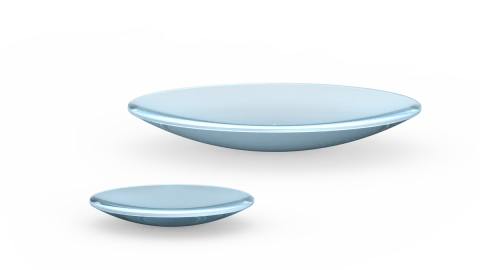

The OPTOMAN PCX-R22.0-UVFS-22.0-CT6.0-AR653-AR653 is a high-performance plano-convex lens engineered for precision beam focusing in demanding laser applications. Manufactured from premium UV fused silica (Corning 7980 0F) and coated using advanced Ion Beam Sputtering (IBS) technology, this optical component delivers exceptional transmission, extremely low reflection losses, and high resistance to laser-induced damage.

Designed for simultaneous operation at 532 nm and 1064 nm wavelengths, the lens provides reliable performance in industrial, scientific, and ultrafast laser systems where beam quality and long-term stability are critical. With a 22 mm diameter, 47.8 mm focal length at 532 nm, and total transmission exceeding 99.7%, this precision optic is ideal for high-power laser processing, nonlinear optics, and advanced photonics applications.

Specifications

Lens Type:	Plano-Convex
Material:	UVFS
Diameter:	22 mm
Focal Length:	47.8 mm
Edge Thickness, Te:	3.05 mm
Surface Quality, S1/S2 (scratch-dig):	20-10
Surface Irregularity, S1/S2:	<= Lambda/3
Manufacturer Part Number (MPN):	PCX-R22.0-UVFS-22.0-CT6.0-AR653-AR653
FindLight SKU:	FL-24750

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Plano-convex UV fused silica lens with 22 mm diameter
IBS anti-reflective coatings optimized for 532 nm and 1064 nm laser wavelengths

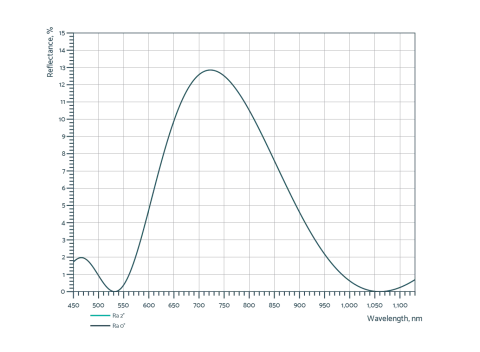

Total transmission greater than 99.7% at design wavelengths
Radius of curvature: +22.0 mm
Focal length: +47.8 mm at 532 nm and +48.9 mm at 1064 nm
High laser-induced damage threshold: >2 J/cm² at 1064 nm and >1 J/cm² at 532 nm (300 ps pulses)
Surface quality of 20-10 scratch-dig according to MIL-PRF-13830B
Centration error below 3 arcmin for accurate beam alignment
Minimum clear aperture of 20 mm
Manufactured from high-purity UV fused silica for excellent UV, visible, and NIR transmission
Low absorption and minimal thermal effects for high-power laser operation

Applications

Nd:YAG laser systems operating at fundamental and second harmonic wavelengths
High-power laser material processing
Picosecond and nanosecond laser systems
Beam focusing and shaping in industrial laser equipment
Nonlinear optics and frequency conversion setups
Scientific spectroscopy and research instruments
emiconductor and electronics manufacturing
Medical and bio-photonics laser systems
Optical test and metrology equipment
Precision photonics integration platforms
