Description

The OPTOMAN CXCX-F300-UVFS-12.7-ET3.0-AR905-AR905 is a high-precision convex-convex ultrafast laser lens designed for demanding optical systems operating in the 1010–1050 nm wavelength range. Manufactured from UV fused silica, this lens provides excellent transmission, thermal stability, and low optical distortion for high-performance laser applications.

Featuring an advanced AR905 anti-reflection coating with reflectivity below 0.1% across 1010–1050 nm and below 0.05% at 1030 nm, this optical component minimizes power losses and unwanted reflections in ultrafast laser setups. Its 300 mm focal length and compact 12.7 mm diameter make it suitable for precision beam manipulation, focusing, and imaging applications where efficiency and optical accuracy are critical.

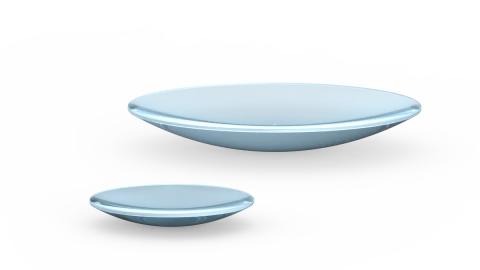

CXCX-F300-UVFS-12.7-ET3.0-AR905-AR905 Ultrafast Laser Lens 300mm

Specifications

Lens Type: Bi-Convex
Material: UVFS
Diameter: 12.7 mm
Focal Length: 300 mm
Edge Thickness, Te: 3 mm
Surface Quality, S1/S2 (scratch-dig): 20-10
Surface Irregularity, S1/S2: <= Lambda/8
Manufacturer Part Number (MPN): CXCX-F300-UVFS-12.7-ET3.0-AR905-AR905
FindLight SKU: FL-24748

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Convex-convex ultrafast laser lens design for precision beam control
  • UV fused silica substrate offering excellent transmission and thermal resistance
  • 300 mm focal length optimized for ultrafast laser focusing applications
  • 12.7 mm diameter with 3.0 mm edge thickness for compact optical assemblies
  • AR905 anti-reflection coating optimized for 1010–1050 nm wavelengths

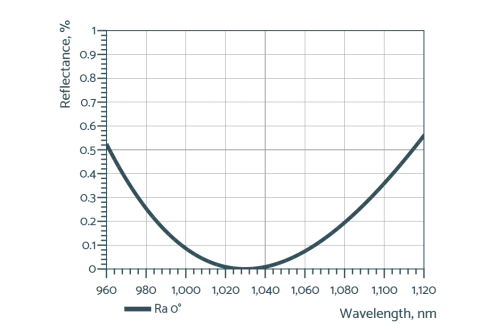

  • Low reflectivity performance: AR <0.1% from 1010–1050 nm and AR <0.05% at 1030 nm
  • High surface quality and low wavefront distortion for demanding laser systems
  • Designed for femtosecond and picosecond laser applications

Applications

  • Ultrafast femtosecond laser systems
  • Picosecond laser processing equipment
  • Laser beam focusing and beam delivery assemblies
  • Precision micromachining and material processing
  • Nonlinear optics and scientific research setups
  • Optical testing and measurement systems
  • Industrial laser manufacturing applications

Export & Trade Information

ECCN: EAR99
HTS Code: 9001.90.4000
Estimated US Tariff: 10%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What is the focal length of the OPTOMAN CXCX-F300-UVFS-12.7-ET3.0-AR905-AR905 lens?
The lens has a 300 mm focal length, making it suitable for applications requiring controlled focusing and beam shaping in ultrafast laser systems.
What wavelength range is this lens optimized for?
The CXCX-F300-UVFS-12.7-ET3.0-AR905-AR905 lens is optimized for ultrafast laser applications from 1010 to 1050 nm, including common 1030 nm laser sources.
What coating does this optical lens use?
This lens uses the AR905 anti-reflection coating, providing very low reflectance to improve optical transmission and reduce losses in high-power laser applications.
Why is UV fused silica used for this ultrafast laser lens?
UV fused silica provides high optical clarity, excellent thermal stability, and low expansion characteristics, making it well suited for precision laser applications where consistent performance is required.
What types of laser systems can use this lens?
This lens is designed for ultrafast laser platforms, including femtosecond and picosecond laser systems used in research, industrial processing, and precision optical instrumentation.

Got more questions? Use the inquiry form to ask the supplier directly.
