Description

Our SC series lenses are crafted through advanced injection molding and compression molding technologies, insuring a superior surface quality and by that optical performance.

The unique design of our polymer Fresnel lenses not only ensures optimal optical performance but also offers significant advantages. Compared to traditional glass lenses our lenses provide substantial weight, space and cost reductions making them indispensable in lighting, sensor, and machine vision applications.

At ORAFOL Fresnel Optics we take pride in offering comprehensive solutions, from optical design and prototyping to tooling and high-volume production. Whether you choose one of our standard products or opt for a custom solution, including high-volume production, we are committed to meet your specific requirements.

Customization options include precise trimming to desired shape, changing of thickness (>0.8 mm) and material (PMMA, Polycarbonate, silicone on glass), optical coating (reflective and anti-reflective coating of various kinds) and combination with other components (diffusive microstructures, microlens arrays) directly into the plano side of the lens. A completely new design of the microstructure specificly made for your application including tooling and prototyping is also possible. Contact us for details.

Positive Fresnel Lens SC 210

Specifications

Material: PMMA Acrylic
Lens Type: Non-Imaging - Spot, Positive
Focal Length: 225.5 mm
Facet Spacing: 0.178 mm

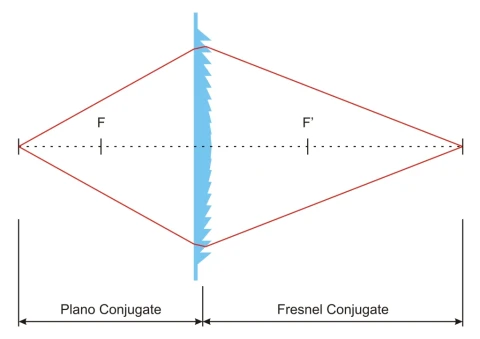

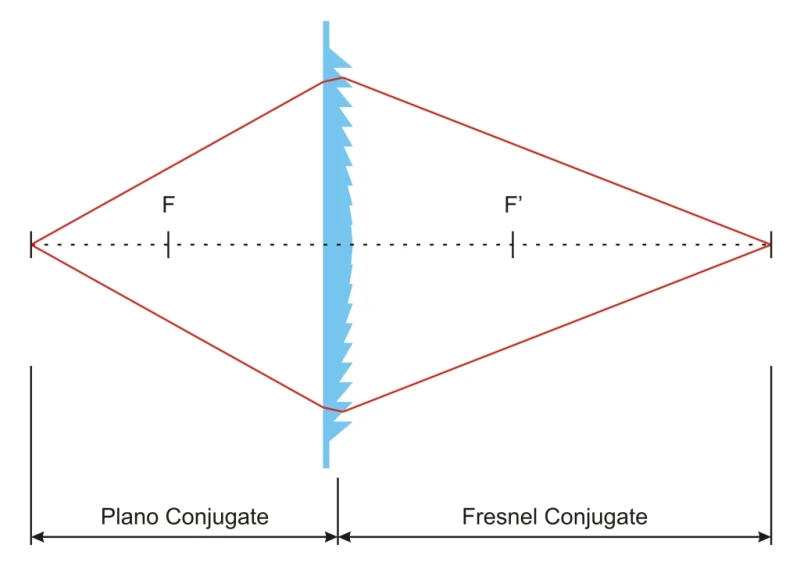

Fresnel Conjugate: 2007 mm
Clear Aperture: 257.6 mm
Thickness: 1.8 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Lightweight, volume-efficient design
  • High apertures and optically effective surfaces
  • Cost-effective solutions for diverse applications
  • Expertly crafted with cutting-edge technology
  • Backed by ORAFOL Fresnel Optics' legacy of top-quality manufacturing

Applications

  • Advanced lighting applications
  • Optical sensor technology
  • Machine vision systems

Frequently Asked Questions

What is the focal length range of these Fresnel lenses?
The focal length of these lenses ranges from 6.3 mm to 763.4 mm, depending on the part number.
What material are these Fresnel lenses made from?
The standard material used is PMMA, with a refractive index of 1.49 and relative dispersion of 58. Other materials are available upon request.
What is the standard thickness of the lenses?
The standard thickness is 1.8 mm, with some lenses available in 2.5 mm thickness. Custom thicknesses of 0.8 mm or greater are also possible.
Can these lenses be custom designed?
Yes, special designs, dimensions, and trimmings are available upon request.
What is the clear aperture of these lenses?
The clear aperture varies from 6.4 mm to 615.7 mm, depending on the lens model.
Are there any tolerances on the focal length?
Yes, the focal length tolerance is ± 5%, measured at 546 nm for PMMA material.
How is the number of lines per mm determined?
The number of lines per mm is calculated by using the inverse of the facet spacing.
What wavelengths are these lenses optimized for?
These lenses are optimized for use at 546 nm, but they can be designed for other wavelengths upon request.
Can the lenses be trimmed to fit custom dimensions?
Yes, the outside diameter or size can be adjusted up to 5–20 mm beyond the clear aperture to meet specific design requirements.
What is the facet spacing for the Fresnel lenses?
The facet spacing varies from 0.076 mm to 0.762 mm, depending on the lens model.

Got more questions? Use the inquiry form to ask the supplier directly.
