Description

Our SC series lenses are crafted through advanced injection molding and compression molding technologies, insuring a superior surface quality and by that optical performance.

The unique design of our polymer Fresnel lenses not only ensures optimal optical performance but also offers significant advantages. Compared to traditional glass lenses our lenses provide substantial weight, space and cost reductions making them indispensable in lighting, sensor, and machine vision applications.

At ORAFOL Fresnel Optics we take pride in offering comprehensive solutions, from optical design and prototyping to tooling and high-volume production. Whether you choose one of our standard products or opt for a custom solution, including high-volume production, we are committed to meet your specific requirements.

Customization options include precise trimming to desired shape, changing of thickness (>0.8 mm) and material (PMMA, Polycarbonate, silicone on glass), optical coating (reflective and anti-reflective coating of various kinds) and combination with other components (diffusive microstructures, microlens arrays) directly into the plano side of the lens. A completely new design of the microstructure specificly made for your application including tooling and prototyping is also possible. Contact us for details.

Positive Fresnel Lens SC 903

Visit the ORAFOL Fresnel Optics Store

Specifications

Material: PMMA Acrylic
Lens Type: Non-Imaging - Spot, Positive
Focal Length: 500.5 mm
Facet Spacing: 0.508 mm

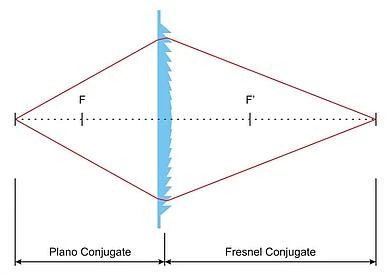

Fresnel Conjugate: 1500 mm
Clear Aperture: 657 mm
Thickness: 1.8 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Lightweight, volume-efficient design
  • High apertures and optically effective surfaces
  • Cost-effective solutions for diverse applications
  • Expertly crafted with cutting-edge technology
  • Backed by ORAFOL Fresnel Optics' legacy of top-quality manufacturing

Applications

  • Advanced lighting applications
  • Optical sensor technology
  • Machine vision systems

Frequently Asked Questions

What are the focal lengths available for this series of Fresnel lenses?
The focal lengths range from 6.3 mm to 763.4 mm, with each model offering specific facet spacing and clear aperture sizes.
What is the standard material used for these Fresnel lenses?
The standard material is PMMA (Polymethyl methacrylate) with a refractive index of 1.49. Other materials are available upon request.
What is the typical thickness of these Fresnel lenses?
The standard thickness is 1.8 mm, although other thicknesses starting from 0.8 mm are available.
Are custom designs or special dimensions available?
Yes, custom designs, special dimensions, and trimmings can be realized based on specific requests.
How do I determine the number of lines per mm?
To calculate the number of lines per mm, use the formula: 1 divided by the facet spacing.
What is the maximum outside diameter or size of the lenses?
The outside diameter may exceed the clear aperture by 5 to 20 mm, depending on the design.
Are these lenses compatible with specific wavelengths?
The listed focal lengths apply to 546 nm for PMMA material.
Is there a tolerance for focal lengths?
Yes, focal length tolerance is ± 5%.
Can these lenses handle different environmental conditions?
PMMA-based lenses are designed for various environmental applications, but material selection can be adapted for specific requirements.
What is the typical use of these Fresnel lenses?
These lenses are commonly used in optical systems, imaging, and light management applications.

Got more questions? Use the inquiry form to ask the supplier directly.
