Description

Our SC series lenses are crafted through advanced injection molding and compression molding technologies, insuring a superior surface quality and by that optical performance.

The unique design of our polymer Fresnel lenses not only ensures optimal optical performance but also offers significant advantages. Compared to traditional glass lenses our lenses provide substantial weight, space and cost reductions making them indispensable in lighting, sensor, and machine vision applications.

At ORAFOL Fresnel Optics we take pride in offering comprehensive solutions, from optical design and prototyping to tooling and high-volume production. Whether you choose one of our standard products or opt for a custom solution, including high-volume production, we are committed to meet your specific requirements.

Customization options include precise trimming to desired shape, changing of thickness (>0.8 mm) and material (PMMA, Polycarbonate, silicone on glass), optical coating (reflective and anti-reflective coating of various kinds) and combination with other components (diffusive microstructures, microlens arrays) directly into the plano side of the lens. A completely new design of the microstructure specificly made for your application including tooling and prototyping is also possible. Contact us for details.

Positive Fresnel Lens SC 265

Specifications

Material: PMMA Acrylic
Lens Type: Non-Imaging - Spot, Positive
Focal Length: 385.6 mm
Facet Spacing: 0.508 mm

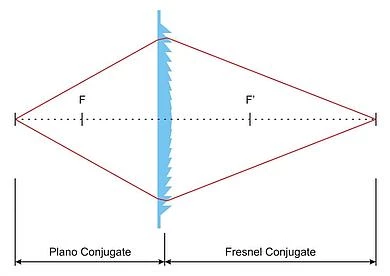

Fresnel Conjugate: 626.9 mm
Clear Aperture: 324 mm
Thickness: 1.8 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Lightweight, volume-efficient design
  • High apertures and optically effective surfaces
  • Cost-effective solutions for diverse applications
  • Expertly crafted with cutting-edge technology
  • Backed by ORAFOL Fresnel Optics' legacy of top-quality manufacturing

Applications

  • Advanced lighting applications
  • Optical sensor technology
  • Machine vision systems

Frequently Asked Questions

What materials are the lenses made from?
The lenses are made from high-quality PMMA (Polymethyl Methacrylate).
What is the refractive index of the lenses?
The refractive index is 1.49.
What is the range of focal lengths available?
Focal lengths range from 6.3 mm to 764.0 mm.
Can the lenses be customized?
Yes, customization options for thickness and special designs are available upon request.
What is the standard thickness of the lenses?
The standard thickness is 1.8 mm.
Are these lenses suitable for imaging applications?
Yes, they are ideal for imaging systems and optical devices requiring precise focus.
What applications can these lenses be used for?
They are used in imaging, illumination, optical instruments, projection systems, and medical devices.
Is there a tolerance for the focal lengths?
Yes, the tolerance is ±5% at 546 nm.
How are the lenses integrated into optical systems?
The lenses are designed for easy integration into various optical setups.
What is the relative dispersion of the lenses?
The relative dispersion is 58.
