Description
HORIBA Jobin Yvon has produced a wide range of ruled master gratings from which we manufacture high precision replicas. Dimensions of our high-precision replica gratings typically range from 25x25 mm up to 120x140 mm.
Ruled Plane Grating 510 46
Specifications
Groove Density: | 30 l/mm |
---|---|
Blaze Wavelength: | 30000 nm |
Substrate Material: | Custom, Metallic, ULE, Zerodur, Fused Silica, NBK7, Pyrex |
Dimension (Length): | 90 mm |
Dimension (Height): | 90 mm |
Dimension (Thickness): | 16 mm |
Applications
Monochromators and Spectrographs
Raman Spectrometers
Spectroscopy
Beam isolation
Frequently Asked Questions

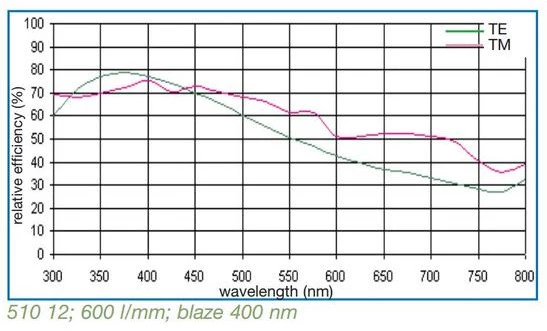

What is the typical efficiency performance of ruled plane gratings?
The efficiency curves for ruled plane gratings are absolute theoretical efficiencies, calculated using rigorous electromagnetic theory, taking into account the true groove profiles of manufactured gratings measured with an atomic force microscope (AFM). These curves are for reference only and do not indicate grating specifications.
What are the specifications for the custom master ruled gratings for CO2 lasers?
The custom master ruled gratings for CO2 lasers are optimized at 10.6 micron for CO2 lasers with a ruling density of 150 l/mm, gold coating, stainless steel substrate material, and a substrate dimension of 25 mm diameter on 25x25 mm. The absolute efficiency is higher than 95% for TM polarization over 9 to 11 µm wavelength range.
What is the commitment to quality for HORIBA Jobin Yvon?
HORIBA Jobin Yvon is committed to complete customer service, including expert technical advice for optimizing system configurations to meet customers’ needs. They are ISO9001:2000 certified and their well-staffed departments are committed to customer satisfaction and product quality.
What are ruled plane gratings used for?
Ruled plane gratings are used in monochromators and spectrographs, Raman spectrometers, spectroscopy, and beam isolation.
What are the dimensions of high-precision replica gratings typically?
The dimensions of high-precision replica gratings typically range from 25x25 mm up to 120x140 mm.
