Description
HORIBA Jobin Yvon has produced a wide range of ruled master gratings from which we manufacture high precision replicas. Dimensions of our high-precision replica gratings typically range from 25x25 mm up to 120x140 mm.
Ruled Plane Grating 510 42
Specifications
Groove Density: | 50 l/mm |
---|---|
Blaze Wavelength: | 12000 nm |
Substrate Material: | Custom, Metallic, ULE, Zerodur, Fused Silica, NBK7, Pyrex |
Dimension (Length): | 110 mm |
Dimension (Height): | 110 mm |
Dimension (Thickness): | 16 mm |
Applications
Monochromators and Spectrographs
Raman Spectrometers
Spectroscopy
Beam isolation
Frequently Asked Questions
What is the blaze angle of the ruled plane gratings?
The blaze angle of the ruled plane gratings is given by the formula: 2a sinα= kλB, where a is the groove spacing, k is the diffraction order (usually k=1) and λB is the blaze wavelength (in Littrow configuration).
What is the efficiency performance of the ruled plane gratings?

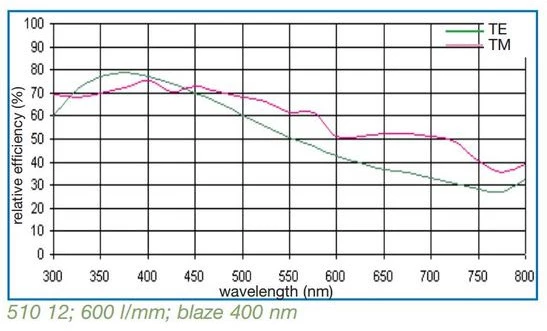

The efficiency performance of the ruled plane gratings varies depending on the model. Efficiency curves are provided for reference only and do not indicate grating specifications.
What materials can be used for the substrate of the ruled plane gratings?
The standard substrate material is Pyrex, but substrates including fused silica, Zerodur, ULE, metals, or other materials can be considered upon request.
What are ruled plane gratings used for?
Ruled plane gratings are used in monochromators, spectrographs, Raman spectrometers, spectroscopy, and beam isolation.
What are the dimensions of the high-precision replica gratings?
The dimensions of the high-precision replica gratings typically range from 25x25 mm up to 120x140 mm.
