Description
HORIBA Jobin Yvon has produced a wide range of ruled master gratings from which we manufacture high precision replicas. Dimensions of our high-precision replica gratings typically range from 25x25 mm up to 120x140 mm.
Ruled Plane Grating 510 39
Specifications
Groove Density: | 60 l/mm |
---|---|
Blaze Wavelength: | 10000 nm |
Substrate Material: | Custom, Metallic, ULE, Zerodur, Fused Silica, NBK7, Pyrex |
Dimension (Length): | 90 mm |
Dimension (Height): | 90 mm |
Dimension (Thickness): | 16 mm |
Applications
Monochromators and Spectrographs
Raman Spectrometers
Spectroscopy
Beam isolation
Frequently Asked Questions

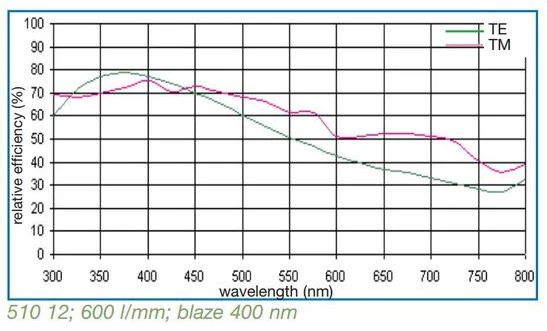

What are the efficiency curves for ruled plane gratings?
The efficiency curves for ruled plane gratings are absolute theoretical efficiencies, calculated using rigorous electromagnetic theory, taking into account the true groove profiles of manufactured gratings measured with an atomic force microscope (AFM).
What are the applications of ruled plane gratings?
Ruled plane gratings are used in monochromators and spectrographs, Raman spectrometers, spectroscopy, and beam isolation.
What is the commitment of HORIBA Jobin Yvon to quality?
HORIBA Jobin Yvon is ISO9001:2000 certified and is committed to customer satisfaction and product quality.
What are ruled plane gratings?
Ruled plane gratings are high-precision replicas of ruled master gratings produced by HORIBA Jobin Yvon.
What are the dimensions of the high-precision replica gratings?
The dimensions of the high-precision replica gratings typically range from 25x25 mm up to 120x140 mm.
