YLF (Unioriental)

Name: YLF (Unioriental)
Brand: Glas Opticslens Co.,Ltd
Availability: InStock

Description

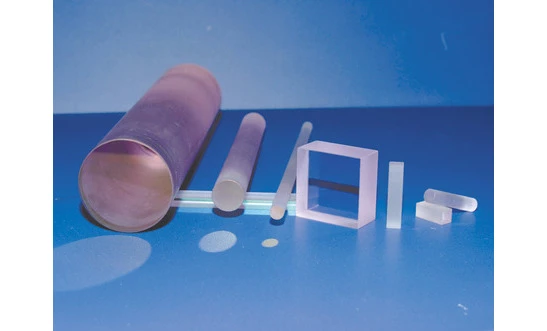

Unioriental grows Nd, Pr, Er, Ho and no doped YLF crystals using the Czochralski technique. The use of high quality starting materials for crystal growth, whole boule interferometry and precise measurement of bulk losses using transmission spectroscopy assures that each crystal will perform to customer specifications.

Specifications

Type Of Crystal:	YLF
Crystal Diameter:	1 mm
Crystal Length:	1 mm
AR Coating:	Uncoated, Both sides, One side

Download Data Sheet

Features

Dopant concentrations between 0.5 and 3.0mol%;

Rod sizes from 1mm to 25.4mm in diameter and from 1mm to 180mm in length;

Large rod and slab dimensions and non-standard dopant concentrations are
available upon request;

AR, HR and HT coating are available upon request;

Orientation of rod axis to crystal a-axis or c-axis within 2 degrees.

Applications

Lasers

Laser optics

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

China

Sold by:

Glas Opticslens Co.,Ltd

On FindLight:

since 2016

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What are the applications of the YLF(Unioriental) laser instrument?

The applications of the YLF(Unioriental) laser instrument include dopant concentration tolerance of 0.1%, parallelism of <10 arc seconds, perpendicularity of <5 arc minutes, chamfer of 0.1mm @45°, clear aperture of 95%, surface quality of 10/5, surface flatness of λ/10 @ 633nm, wavefront distortion of <7mm diameter: λ/10@633nm, ≥7mm diameter: λ/8@633nm, and damage threshold of 15J/CM2 TEM00, 10NS, 10HZ.

What are the features of the YLF(Unioriental) laser instrument?

The features of the YLF(Unioriental) laser instrument include dopant concentrations between 0.5 and 3.0mol%; rod sizes from 1mm to 25.4mm in diameter and from 1mm to 180mm in length; large rod and slab dimensions and non-standard dopant concentrations are available upon request; AR, HR and HT coating are available upon request; and orientation of rod axis to crystal a-axis or c-axis within 2 degrees.

What are the coating options available for the YLF(Unioriental) laser instrument?

The coating options available for the YLF(Unioriental) laser instrument include AR, HR and HT coating, which are available upon request.

What is the dopant concentration range available in the YLF(Unioriental) laser instrument?

The dopant concentration range available in the YLF(Unioriental) laser instrument is between 0.5 and 3.0mol%.

What materials are used for crystal growth in the YLF(Unioriental) laser instrument?

Unioriental grows Nd, Pr, Er, Ho and no doped YLF crystals using the Czochralski technique.
