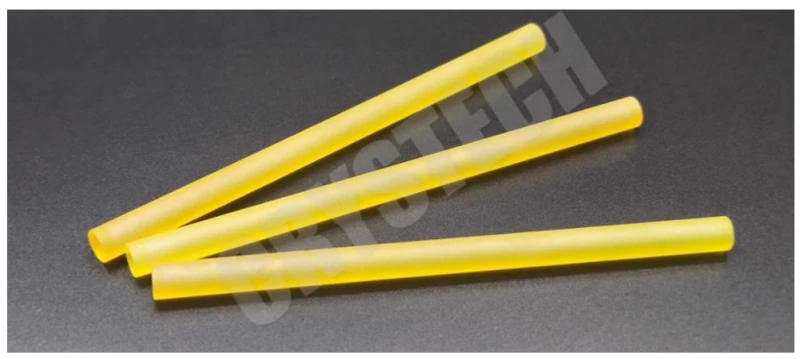

Nd:Ce:YAG High-Efficiency Laser Crystal for Medical and Military Use
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2018
Description
The Nd:Ce:YAG crystal, also known as Neodymium Cerium doped Yttrium Aluminum Garnet, is a highly efficient laser material renowned for its versatility and performance. This advanced crystal is engineered to deliver superior laser energy output, making it an ideal choice for a range of demanding applications. By incorporating Cerium as a sensitizer for Nd3+ ions, the Nd:Ce:YAG crystal exhibits strong absorption in the UV spectral region during flashlamp pumping. This unique composition ensures efficient energy transition to the Nd3+ excited state, resulting in reduced thermal distortion and enhanced laser energy output compared to traditional Nd:YAG crystals. One of the standout features of the Nd:Ce:YAG crystal is its ability to support high-power lasers with excellent beam quality. The lasing wavelength at 1064 nm, along with the laser damage threshold and thermal conductivity, is consistent with that of Nd:YAG, ensuring reliable and robust performance. This makes it an exceptional choice for applications requiring precise and powerful laser capabilities. In terms of manufacturing, the Nd:Ce:YAG crystal benefits from Crystech's comprehensive in-house production process, which includes crystal boules growth, cutting, polishing, and coating. This ensures high-quality standards, competitive pricing, and fast delivery, backed by excellent customer service. The crystal's physical and optical properties, such as its cubic crystal structure, high melting point, and significant emission cross-section, further enhance its appeal for various industrial and scientific applications.
Nd:Ce:YAG High-Efficiency Laser Crystal for Medical and Military Use
Specifications |
|
|---|---|
| Type Of Crystal: | Nd:Ce:YAG |
| Crystal Diameter: | 5 mm |
| Crystal Length: | 115 mm |
| AR Coating: | Uncoated, Both sides, One side |
| Angle Tolerance: | +/-5° |
| Host Material Formula: | Y3Al5O12 |
| Crystal Structure: | Cubic |
| Ends Type: | Parallel, Anti-Parallel, Flat or Curved |
| Damage Threshold: | 750 MW/cm² 10ns 10Hz at 1064nm |
| Standard Coating: | AR/AR 1064nm |
| Extinction Ratio: | >28dB |
| Wavefront Distortion: | <0.125λ per inch @ 633nm |
| Clear Aperture: | ≥95% |
| Flatness: | 0.125λ@633nm |
| Chips: | <0.1mm |
| Parallelism: | ≤30″ |
| Chamfer: | <0.15mmx45° |
| Scratch/Dig: | 10/5 |
| Perpendicularity: | ≤5′ |
| Lattice Constant: | a=12.01 Å |
| Nd Dopant: | 0.9-1.3 at% |
| Cut Angle: | <111> |
| Dimension Tolerance: | Diameter(+0/-0.1)*Length(+1/-0.5) mm |
| Primary Lasing Wavelength: | 1064 nm |
| Refractive Index: | 1.82 (1064nm) |
| Dn/dT: | 7.3x10^-6 ℃^-1 |
| Fluorescence Lifetime: | 230 μs (1064nm) |
| Emission Cross Section: | 2.8x10^-19 cm² (1064nm) |
| Density: | 4.55 g/cm³ |
| Mohs Hardness: | 8.5 |
| Melting Point: | 1950 ℃ |
| Thermal Conductivity: | 0.14 W∙cm^-1∙K^-1 |
| Thermal Expansion Coefficient: | 7x10^-6 K^-1 |
Features
- High Efficiency Laser Material: Nd:Ce:YAG is a high-efficiency laser material suitable for medical, military, and meteorology applications.
- Enhanced Performance: Double-doped with Cerium as a sensitizer for Nd3+ ions, providing strong UV absorption and efficient energy transition, resulting in less thermal distortion and greater laser output energy compared to Nd:YAG.
- Optimal Lasing Wavelength: Lasing at 1064 nm, with laser damage threshold and thermal conductivity similar to Nd:YAG.
- Versatile Applications: Suitable for diode-pumped and flashlamp-pumped lasers, water-cooled or air-cooled lasers, and pulsed or continuous wave operations.
- Industrial Uses: Ideal for materials processing, marking, welding, cutting, and laser range finding.
- In-House Manufacturing: Crystal boules growth, cutting, polishing, and coating all performed in-house for quality assurance.
- Customizable Rod Sizes: Rod diameters range from 3 mm to 7 mm, with lengths up to 180 mm.
- High Damage Threshold Coating: Coatings designed to withstand high damage thresholds, ensuring durability and longevity.
- Superior Quality and Service: Excellent product quality, competitive pricing, fast delivery, and attentive customer service.
- Physical & Optical Properties:
- Host Material Formula: Y3Al5O12
- Crystal Structure: Cubic
- Lattice Constant (Å): a=12.01
- Thermal Expansion Coefficient (K-1): 7x10-6
- Thermal Conductivity (W∙cm-1∙K-1): 0.14
- Melting Point (℃): 1950
- Mohs Hardness: 8.5
- Density (g/cm3): 4.55
- Emission Cross Section (cm-2): 2.8x10-19 (1064 nm)
- Fluorescence Lifetime (μs): 230 (1064 nm)
Applications
- Diode-pumped Lasers
- Flashlamp-pumped Lasers
- Water-cooled or Air-cooled Lasers
- Pulsed or CW operations
- Materials Processing
- Marking
- Welding
- Cutting
- Laser Range Finding
Frequently Asked Questions
Nd:Ce:YAG is a high-efficiency laser material doped with Neodymium and Cerium in a Yttrium Aluminum Garnet host, used in medical, military, and meteorology fields.
Nd:Ce:YAG has less thermal distortion and greater output laser energy than Nd:YAG when pumped, allowing for high power lasers with good beam quality.
Nd:Ce:YAG crystals are used in diode-pumped lasers, flashlamp-pumped lasers, water-cooled or air-cooled lasers, pulsed or CW operations, materials processing, marking, welding, cutting, and laser range finding.
The primary lasing wavelength of Nd:Ce:YAG crystals is 1064 nm.
The thermal conductivity of Nd:Ce:YAG is 0.14 W∙cm⁻¹∙K⁻¹.
Nd:Ce:YAG crystal rods come in diameters from 3mm to 7mm and lengths up to 180mm, with a high damage threshold coating and excellent quality.
The damage threshold of Nd:Ce:YAG crystals is 750 MW/cm² for 10 ns pulses at 10 Hz at 1064 nm.
