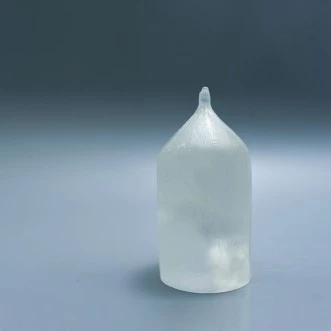

Yb:YAG - Ytterbium-doped Yttrium Aluminum Garnet
Description
Yb: YAG is a laser crystal which is doped with trivalent ytterbium ions in yttrium aluminum garnet crystal and can emits 1030 nm near-infrared laser. Yb:YAG crystal has characters of high quantum efficiency, no excited state absorption and up-conversion, high concentration tolerance, long fluorescence lifetime, wide absorption band and broad emission range and robust optical, mechanical and thermal properties etc., which makes it have great potential application in high efficiency, high power diode-pumped solid-state lasers.
Yb:YAG - Ytterbium-doped Yttrium Aluminum Garnet
Specifications |
|
|---|---|
| Type Of Crystal: | Yb:YAG |
| Crystal Diameter: | 5 mm |
| Crystal Length: | 2 mm |
| AR Coating: | Both sides |
| Orientation: | <111> |
| Concentration: | 10% |
| Coating: | S1: HR1030/AR940nm S2: HR940/AR1030 nm |
Features
- Good optical quality
- Wide absorption bands
- Low quantum defect
- High slope efficiency
- Low working temperature
- Linearly polarized emission and single-mode
- Simple energy level structure
Applications
- 1030nm laser
- Diode pumping
- Human friendly in dental treatment field
- Yb: YAG amplifier module for optical fiber amplifier
- Material micromachining
- Holography, interference, optical storage and other fields
- YAG laser marker
- Laser cutting and welding
- Multiphoton microscopy
- Ultrashort pulse research
- LIDAR and optical refrigeration
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Nanjing Metalaser Photonics Co.,Ltd. -
On FindLight:
since 2018
Frequently Asked Questions
Yb:YAG has potential applications in 1030nm laser, diode pumping, human friendly in dental treatment field, Yb: YAG amplifier module for optical fiber amplifier, material micromachining, holography, interference, optical storage and other fields, YAG laser marker, laser cutting and welding, multiphoton microscopy, ultrashort pulse research, LIDAR and optical refrigeration.
Yb:YAG has good optical quality, wide absorption bands, low quantum defect, high slope efficiency, low working temperature, linearly polarized emission and single-mode, simple energy level structure, and robust optical, mechanical and thermal properties.
The surface quality of Yb:YAG is λ/4@632nm, and the wavefront distortion is λ/8@632nm. The clear aperture chamfer is <0.1×45°.
The Yb concentration tolerance of Yb:YAG is 0.5, 1, 2, 3, 5, 7.5, 10, 15, 20, 25% (atm%).
Yb:YAG is a laser crystal that emits 1030 nm near-infrared laser and is doped with trivalent ytterbium ions in yttrium aluminum garnet crystal.
