Cr YAG Passive Q-Switch Crystal

Nanjing Crylink Photonics Co.,Ltd
REQUEST QUOTE

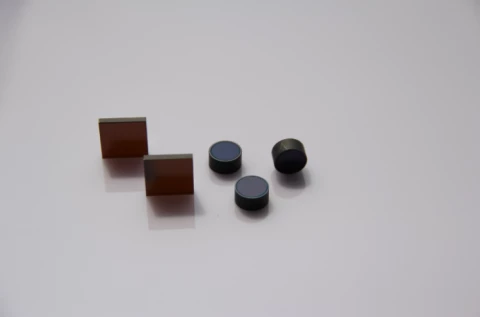

Cr YAG Passive Q-Switch Crystal
  • image0
  • image1
  • image2

OVERVIEW

Cr4+:YAG crystal can be used not only as Q-switch but also as gain medium because of its excellent physicochemical properties. The Q-switch operation of pulse and CW Nd:YAG lasers has been realized by using Cr4+:YAG as Q-switch, and the CW tunable and self-mode-locked operation has also been realized by using CR4 +: YAG as gain medium. Compared with the traditional saturable absorber, Cr: YAG is superior to the traditional saturable absorber in many aspects. The doping concentration of Cr4+ ion in Cr4+:YAG is as high as 1018 cm-3, which can effectively reduce the size of passive Q-switch elements. It is beneficial to achieve high optical conversion efficiency, integration, and compact passive Q-switch laser.

SPECIFICATION

  • Type Of Crystal: Cr:YAG
  • Crystal Diameter: 3 mm
  • Crystal Length: 1.3 mm
  • AR Coating: One side
  • Chemical Formula: Cr4+:Y3Al5O12
  • Coatings: AR≤ 0.2% @1064nm
  • Thermal Expansion /(10-6/°C@25°C): 7.8 <111> 7.7 <110> 8.2 <100>
  • Emission Wavelength: 1350 nm ~ 1600 nm
  • Transmission: 10% to 90%
Download Data Sheet

Applications

Material Processing


266nm laser
1064nm laser
1060nm laser
Holography


671nm laser
Medical Applications


1064nm laser
Passive Q-switch for Nd: YAG laser
Remote sensing
3D scanning
Lidar system

KEY FEATURES

High thermal conductivity
High damage threshold(>500MW/cm2)
Excellent physicochemical properties
Radiation stability
