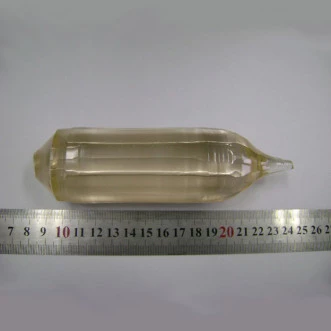

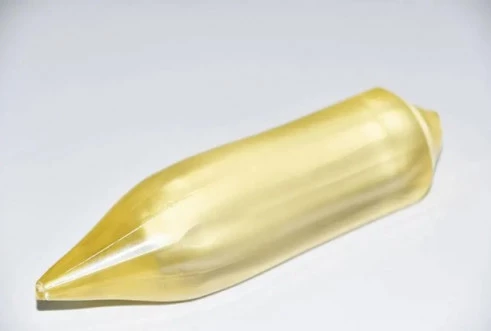

Ho:YAG Crystal

Description

Ho:YAG is the most important laser crystal used in medium wave infrared laser, which lasers at 2.05μm.
■ Advantages of Ho:YAG Crystals：

Nonpolarized output beam

High thermal conductivity

High thermal shock resistance

Conveniently pumped at 1.9μm

Specifications

Type Of Crystal:	Ho:Cr:Tm:YAG
Crystal Diameter:	5 mm
Crystal Length:	100 mm
AR Coating:	Both sides
S/D:	10/5
Parallelism:	<10 arc Sec
Flatness:	<λ/10 @633nm
Transmitted Wavefront Distortion:	<λ/8 per inch @633nn
Extinction Ration:	>28dB

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Applications

、

Request Quote

To: BoJen Optics, Inc.
Re: Ho:YAG Crystal

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: China
Sold by:: BoJen Optics, Inc.
On FindLight:: since 2015

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What are the advantages of Ho:YAG crystals?

The advantages of Ho:YAG crystals are nonpolarized output beam, high thermal conductivity, high thermal shock resistance, and conveniently pumped at 1.9μm.

What is Ho:YAG crystal used for?

Ho:YAG crystal is used in medium wave infrared laser, which lasers at 2.05μm.

What is the output beam of Ho:YAG crystals?

The output beam of Ho:YAG crystals is nonpolarized.

What is the pumping wavelength of Ho:YAG crystal?

Ho:YAG crystal is conveniently pumped at 1.9μm.

What is the wavelength of the laser that Ho:YAG crystal produces?

Ho:YAG crystal produces laser at 2.05μm.
